IGC249 ifm Electronic Electronic Components
Part#:IGC249
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

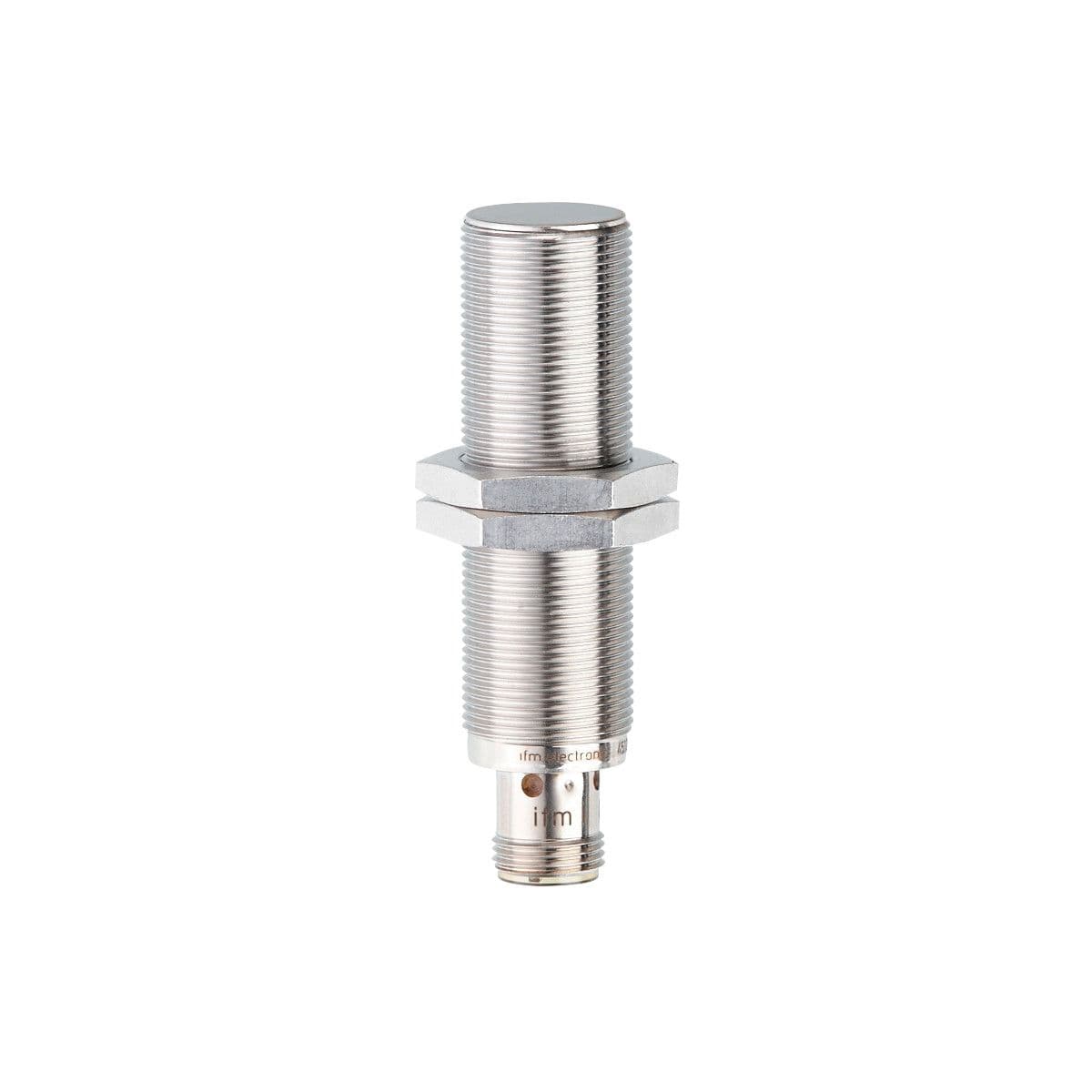

Inductive full-metal sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4.5, Housing: Threaded type, Dimensions [mm]: M18 x 1 / L = 70, System: gold-plated contacts; Full-metal ho
Product Details
- System gold-plated contacts; Full-metal housing; correction factor = 0
- Permanent current rating of switching output DC [mA] 100
- Sensing range [mm] 4.5
- Max. voltage drop switching output DC [V] 2.5
- Operating voltage [V] 10...30 DC
- Output function normally open
- Type of short-circuit protection yes (non-latching)
- Pressure rating [bar] 100
- Switching frequency DC [Hz] 100
- Media Ferrous only; aluminum chip immune
- Reverse polarity protection yes
- Dimensions [mm] M18 x 1 / L = 70
- Current consumption [mA] < 20
- Housing Threaded type
- Overload protection yes
- Application Oils and coolants
- Protection class III
- Note on pressure rating sensing face
- Electrical design PNP
- Short-circuit protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
