IM5115 ifm Electronic Electronic Components
Part#:IM5115
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

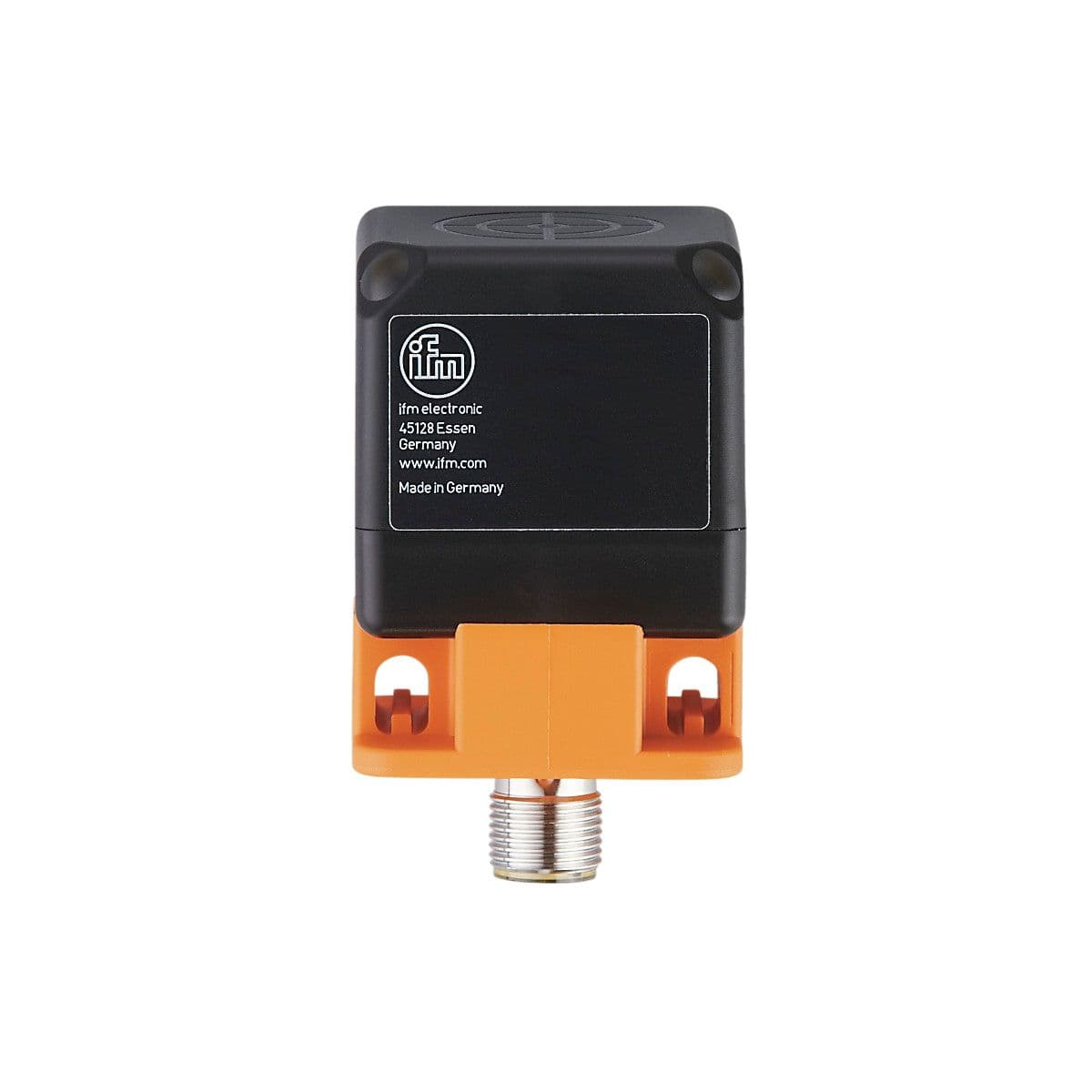

Inductive sensor, Long sensing range for use in conveying, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 20, Housing: rectangular, Dimensions [mm]: 40 x 40 x 54, System: gold-plated contacts
Product Details
- Operating voltage [V] 10...36 DC
- Protection class II
- Electrical design PNP
- System gold-plated contacts
- Short-circuit protection yes
- Current consumption [mA] < 20
- Type of short-circuit protection yes (non-latching)
- Dimensions [mm] 40 x 40 x 54
- Switching frequency DC [Hz] 100
- Reverse polarity protection yes
- Output function normally open
- Housing rectangular
- Max. voltage drop switching output DC [V] 2.5
- Sensing range [mm] 20
- Overload protection yes
- Permanent current rating of switching output DC [mA] 200
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IM5115 ifm Electronic
