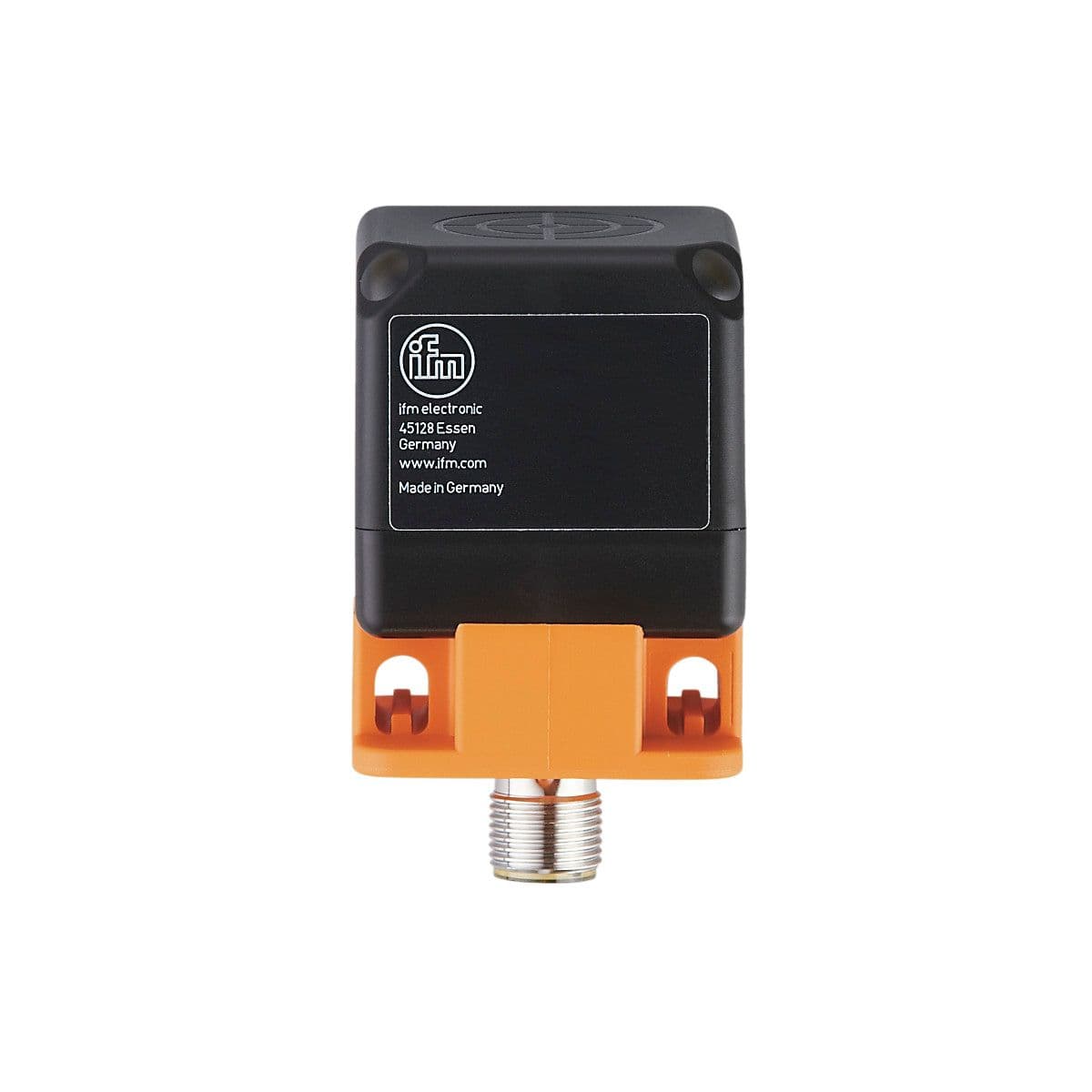

IM5141 ifm Electronic Electronic Components
Part#:IM5141
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
inductive analog sensor with IO-Link, Non-contact measurement of distances up to 26 mm, Electrical design: PNP/NPN; (configurable), Output function: normally open / closed; (configurable), Communication interface: IO-Link, Housing: rectangular, Dimensions
Product Details
- Housing rectangular
- Electrical design PNP/NPN; (configurable)
- Overload protection yes
- Dimensions [mm] 40 x 40 x 54
- Protection class II
- Reverse polarity protection yes
- Switching frequency DC [Hz] 100
- Current consumption [mA] < 33
- Max. voltage drop switching output DC [V] 2.5
- Max. load [Ω] 500; (Ub
- Short-circuit protection yes
- Operating voltage [V] 15...30 DC
- Output function normally open / closed; (configurable)
- Analog current output [mA] 4...20; (linear; gradient: 0,64 mA/mm; for frontal approach and for target made of mild steel: 90 x 90 x 1 mm)
- Permanent current rating of switching output DC [mA] 100
- Communication interface IO-Link
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IM5141 ifm Electronic
