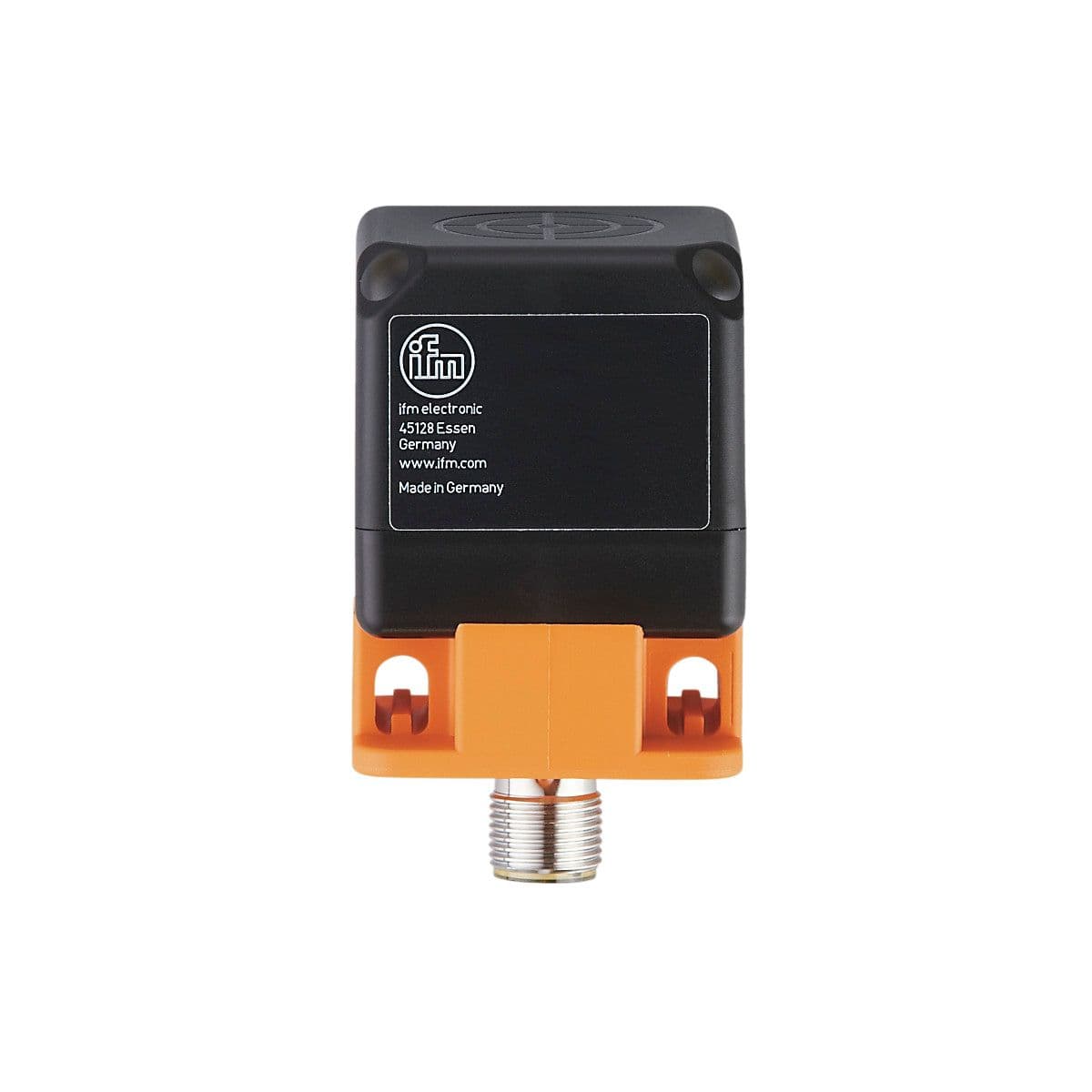

IM5123 ifm Electronic Electronic Components
Part#:IM5123
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Inductive sensor, Long sensing range for use in conveying, Electrical design: PNP, Output function: complementary, Sensing range [mm]: 20, Housing: rectangular, Dimensions [mm]: 40 x 40 x 54
Product Details
- Switching frequency DC [Hz] 100
- Current consumption [mA] < 25
- Housing rectangular
- Permanent current rating of switching output DC [mA] 200
- Electrical design PNP
- Short-circuit protection yes
- Sensing range [mm] 20
- Protection class II
- Max. voltage drop switching output DC [V] 2.5
- Operating voltage [V] 10...36 DC
- Type of short-circuit protection yes (non-latching)
- Dimensions [mm] 40 x 40 x 54
- Overload protection yes
- Reverse polarity protection yes
- Output function complementary
- Max. leakage current [mA] 0.1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
IM5123 ifm Electronic
