IM5132 ifm Electronic Electronic Components
Part#:IM5132
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

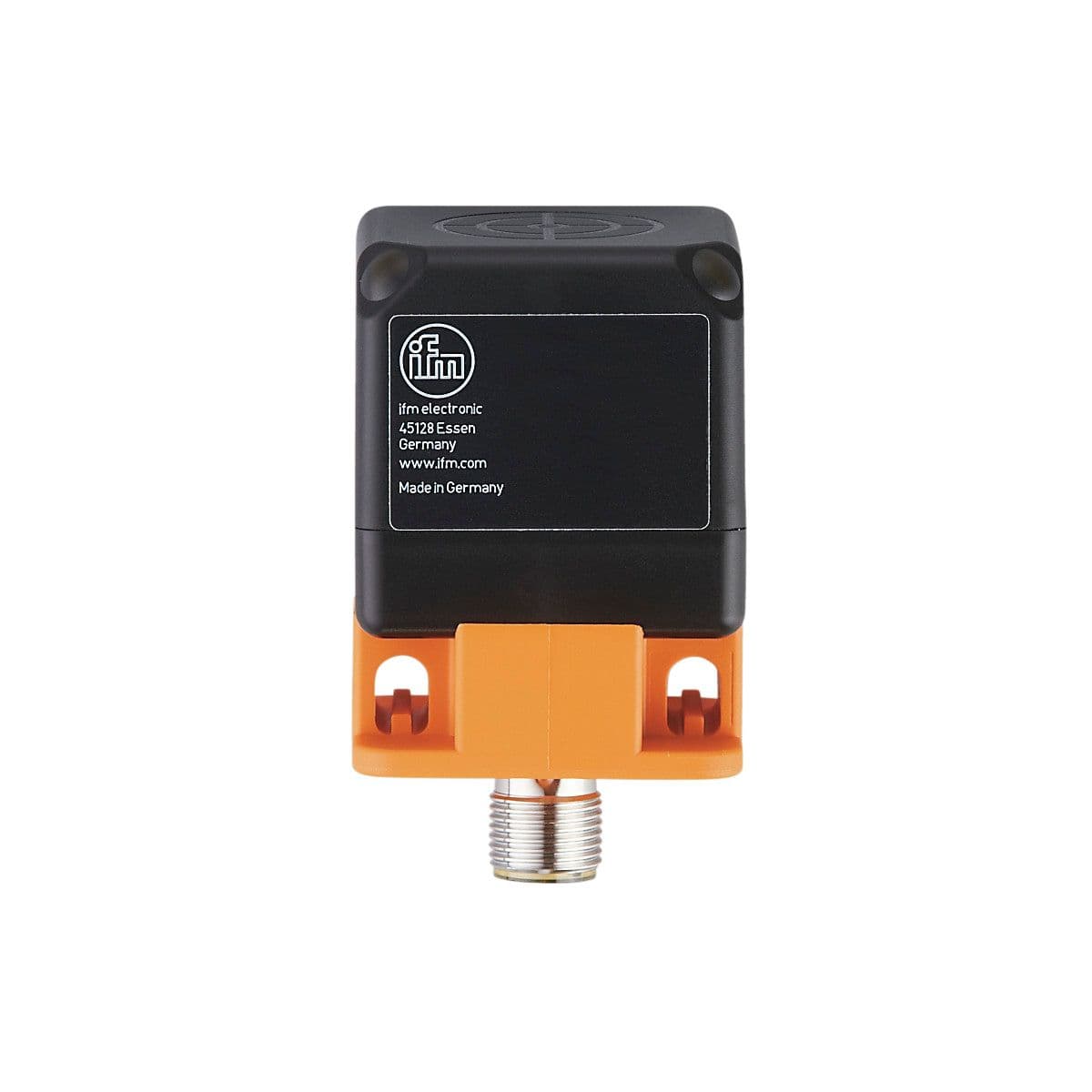

Inductive sensor, Correction factor K=1: Constant sensing range on all metals, Electrical design: PNP, Output function: complementary, Sensing range [mm]: 20, Housing: rectangular, Dimensions [mm]: 40 x 40 x 54, System: correction factor = 1; Magnetic-fie
Product Details
- Current consumption [mA] < 20
- Sensing range [mm] 20
- Max. leakage current [mA] 0.1
- Dimensions [mm] 40 x 40 x 54
- Reverse polarity protection yes
- Max. electromagnetic field immunity [mT] 300
- Magnetic-field immune yes
- Short-circuit protection yes
- Output function complementary
- Permanent current rating of switching output DC [mA] 200
- System correction factor = 1; Magnetic-field immune
- Overload protection yes
- Electrical design PNP
- Max. voltage drop switching output DC [V] 2.5
- Operating voltage [V] 10...36 DC
- Protection class II
- Type of short-circuit protection yes (non-latching)
- Housing rectangular
- Switching frequency DC [Hz] 200
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
