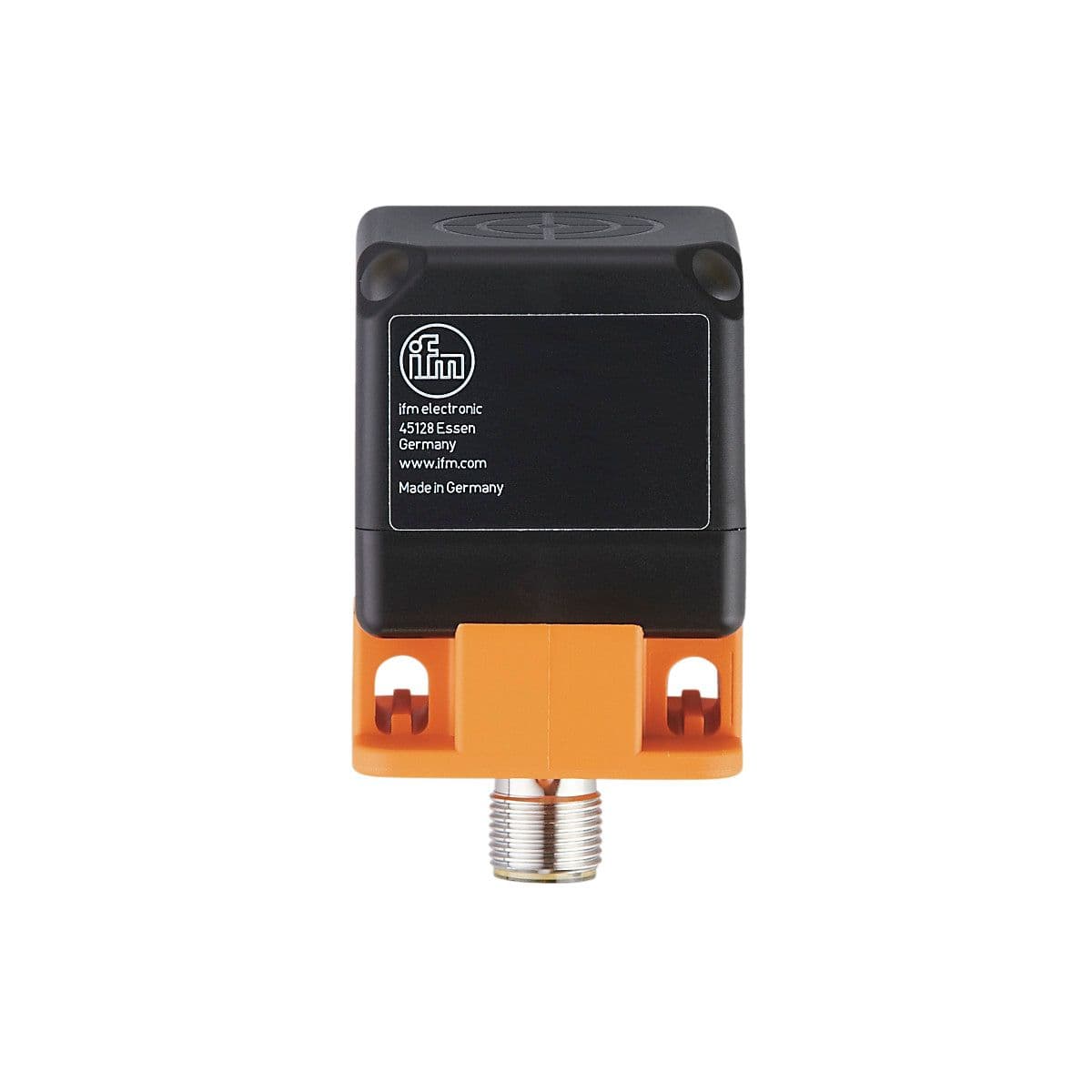

IM5140 ifm Electronic Electronic Components
Part#:IM5140
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
inductive analog sensor with IO-Link, Electrical design: PNP/NPN; (configurable), Output function: normally open / closed; (configurable), Communication interface: IO-Link, Housing: rectangular, Dimensions [mm]: 40 x 40 x 54
Product Details
- Operating voltage [V] 15...30 DC
- Switching frequency DC [Hz] 100
- Electrical design PNP/NPN; (configurable)
- Overload protection yes
- Output function normally open / closed; (configurable)
- Dimensions [mm] 40 x 40 x 54
- Communication interface IO-Link
- Max. voltage drop switching output DC [V] 2.5
- Housing rectangular
- Min. load resistance [Ω] 2000
- Protection class II
- Permanent current rating of switching output DC [mA] 100
- Reverse polarity protection yes
- Short-circuit protection yes
- Current consumption [mA] < 33
- Analog voltage output [V] 0...10; (linear; gradient: 0,714 V/mm; for frontal approach and for target made of mild steel: 45 x 45 x 1 mm)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
