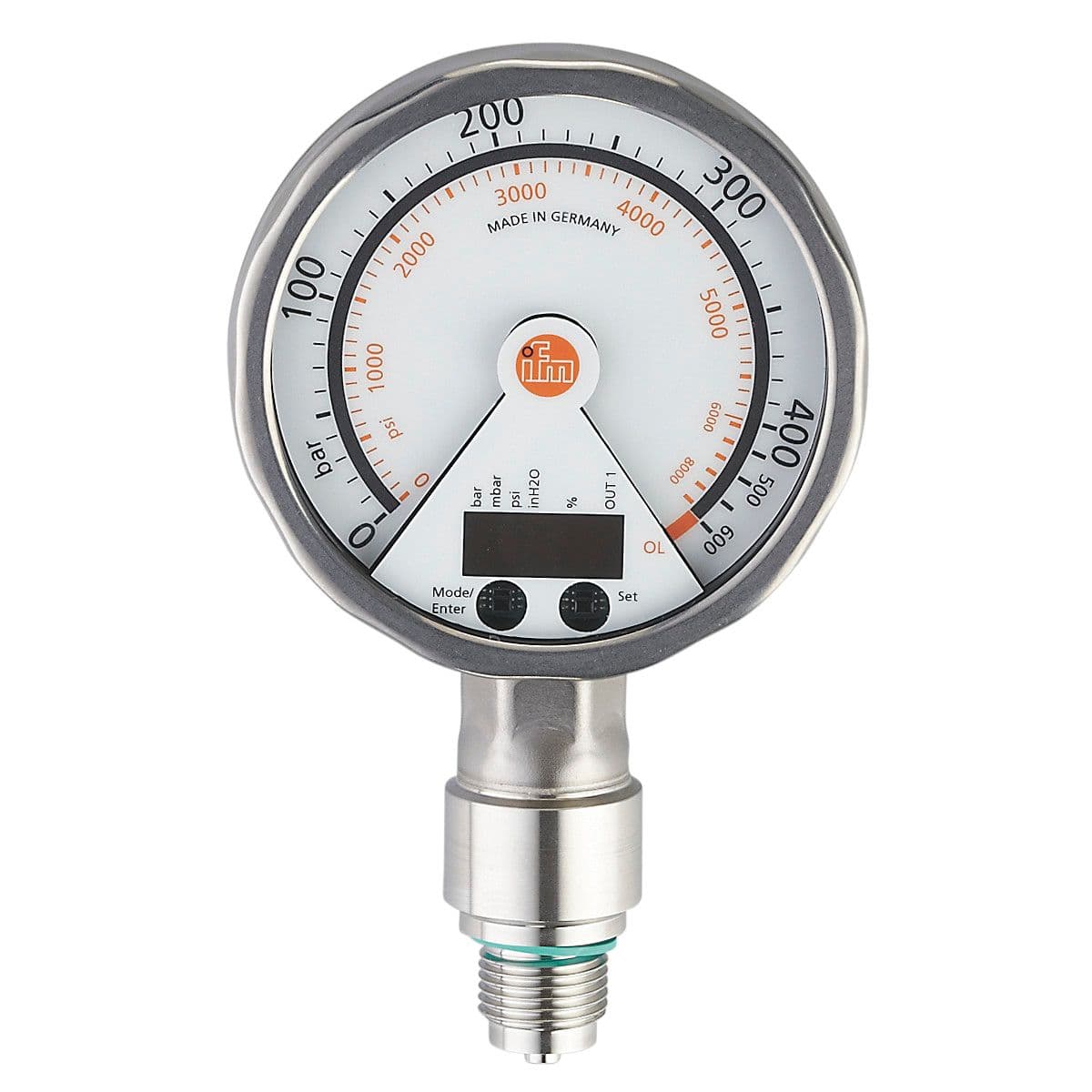

PG2450 ifm Electronic Electronic Components

Product Details

• Measuring range
  0...400 bar 0...5800 psi
• Electrical design
  PNP/NPN
• Medium temperature [°C]
  -25...80
• Protection class
  III
• Switching frequency DC [Hz]
  75
• Short-circuit protection
  yes
• Application
  for industrial applications
• Current consumption [mA]
  < 70; (24 V)
• Number of analog outputs
  1
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Output function
  normally open / closed; (configurable)
• Type of pressure
  relative pressure
• Output signal
  switching signal; analog signal; (configurable)
• Min. bursting pressure
  1200 bar 17400 psi
• Power-on delay time [s]
  6
• Number of digital outputs
  1
• Integrated watchdog
  yes
• Media
  liquids and gases
• Total number of outputs
  2
• Max. voltage drop switching output DC [V]
  2
System
gold-plated contacts
Analog current output [mA]
4...20, invertible; (scalable)
Pressure rating
800 bar 11600 psi
Reverse polarity protection
yes
Conditionally suitable for
use in gases at pressures > 25 bar only on request
Min. insulation resistance [MΩ]
100; (500 V DC)
Permanent current rating of switching output DC [mA]
250
Overload protection
yes
Process connection
threaded connection G 1/2 external thread
Operating voltage [V]
18...32 DC
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Type of short-circuit protection
yes (non-latching)
