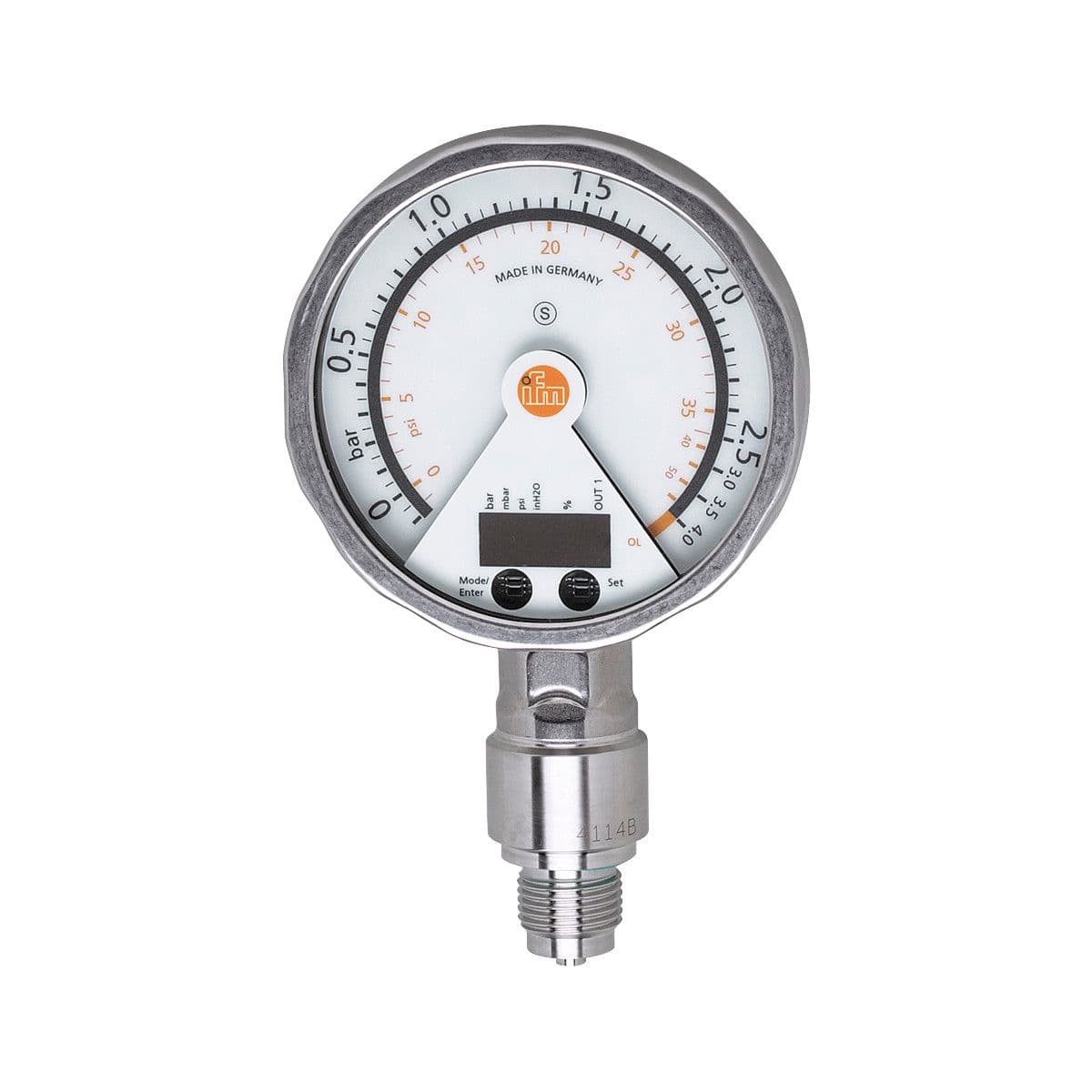

PG2456 ifm Electronic Electronic Components

Product Details

• Max. voltage drop switching output DC [V]
  2
• Short-circuit protection
  yes
• Media
  liquids and gases
• Operating voltage [V]
  18...32 DC
• Measuring range
  -0.125...2.5 bar -125...2500 mbar -1.8...36.25 psi
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of digital outputs
  1
• Overload protection
  yes
• Integrated watchdog
  yes
• Output signal
  switching signal; analog signal; (configurable)
• Permanent current rating of switching output DC [mA]
  250
• Power-on delay time [s]
  6
• Switching frequency DC [Hz]
  75
• System
  gold-plated contacts
• Protection class
  III
• Electrical design
  PNP/NPN
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Min. bursting pressure
  50 bar 725 psi
• Current consumption [mA]
  < 70; (24 V)
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
Number of analog outputs
1
Medium temperature [°C]
-25...80
Reverse polarity protection
yes
Output function
normally open / closed; (configurable)
Application
for industrial applications
Type of pressure
relative pressure
Total number of outputs
2
Type of short-circuit protection
yes (non-latching)
Process connection
threaded connection G 1/2 external thread
Pressure rating
20 bar 290 psi
Analog current output [mA]
4...20, invertible; (scalable)
