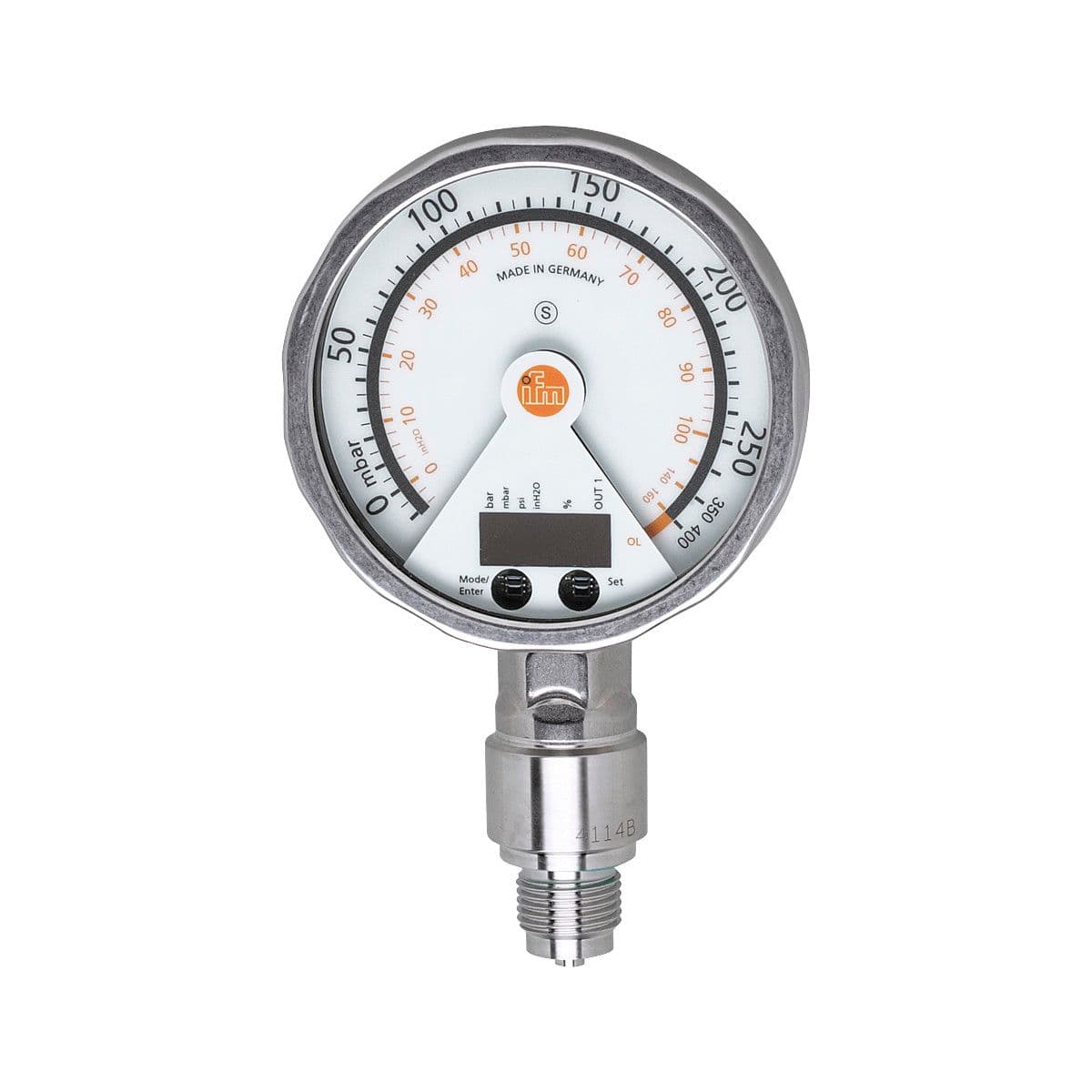

PG2458 ifm Electronic Electronic Components

Product Details

• Operating voltage [V]
  18...32 DC
• Output signal
  switching signal; analog signal; (configurable)
• Total number of outputs
  2
• Permanent current rating of switching output DC [mA]
  250
• Short-circuit protection
  yes
• Type of pressure
  relative pressure
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Analog current output [mA]
  4...20, invertible; (scalable)
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Measuring range
  -0.0125...0.25 bar -12.5...250 mbar -5...100.4 inH2O
• Reverse polarity protection
  yes
• Number of digital outputs
  1
• Protection class
  III
• Media
  liquids and gases
• Switching frequency DC [Hz]
  75
• Min. bursting pressure
  30000 mbar 12044 inH2O
• Power-on delay time [s]
  6
• Output function
  normally open / closed; (configurable)
• Overload protection
  yes
• Application
  for industrial applications
Min. insulation resistance [MΩ]
100; (500 V DC)
Medium temperature [°C]
-25...80
Max. voltage drop switching output DC [V]
2
Type of short-circuit protection
yes (non-latching)
Pressure rating
6000 mbar 2400 inH2O
System
gold-plated contacts
Integrated watchdog
yes
Number of analog outputs
1
Process connection
threaded connection G 1/2 external thread
Current consumption [mA]
< 70; (24 V)
Electrical design
PNP/NPN
