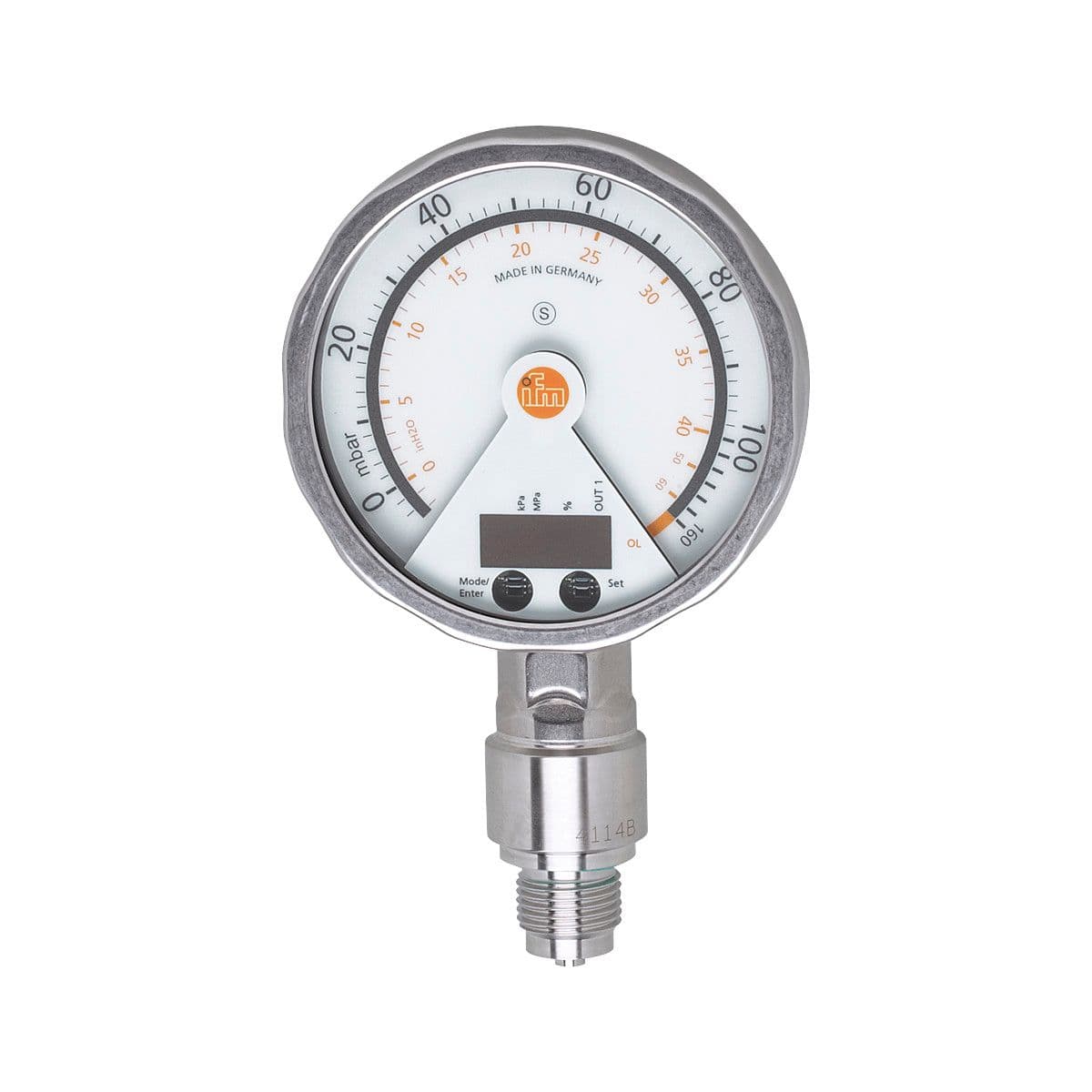

PG2489 ifm Electronic Electronic Components

Product Details

• Reverse polarity protection
  yes
• Number of digital outputs
  1
• Medium temperature [°C]
  -25...80
• Process connection
  threaded connection G 1/2 external thread
• Number of analog outputs
  1
• Media
  liquids and gases
• Power-on delay time [s]
  6
• Type of pressure
  relative pressure
• Pressure rating
  4000 mbar 1606 inH2O
• Total number of outputs
  2
• Analog current output [mA]
  4...20, invertible; (scalable)
• Application
  for industrial applications
• Integrated watchdog
  yes
• Switching frequency DC [Hz]
  75
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Output function
  normally open / closed; (configurable)
• System
  gold-plated contacts
• Operating voltage [V]
  18...32 DC
• Overload protection
  yes
• Min. insulation resistance [MΩ]
  100; (500 V DC)
Permanent current rating of switching output DC [mA]
250
Type of short-circuit protection
yes (non-latching)
Max. voltage drop switching output DC [V]
2
Short-circuit protection
yes
Protection class
III
Measuring range
-0.005...0.1 bar -5...100 mbar -2...40.16 inH2O
Current consumption [mA]
< 70; (24 V)
Electrical design
PNP/NPN
Output signal
switching signal; analog signal; (configurable)
Max. load [Ω]
(Ub - 10 V) / 20 mA
Min. bursting pressure
30000 mbar 12044 inH2O
