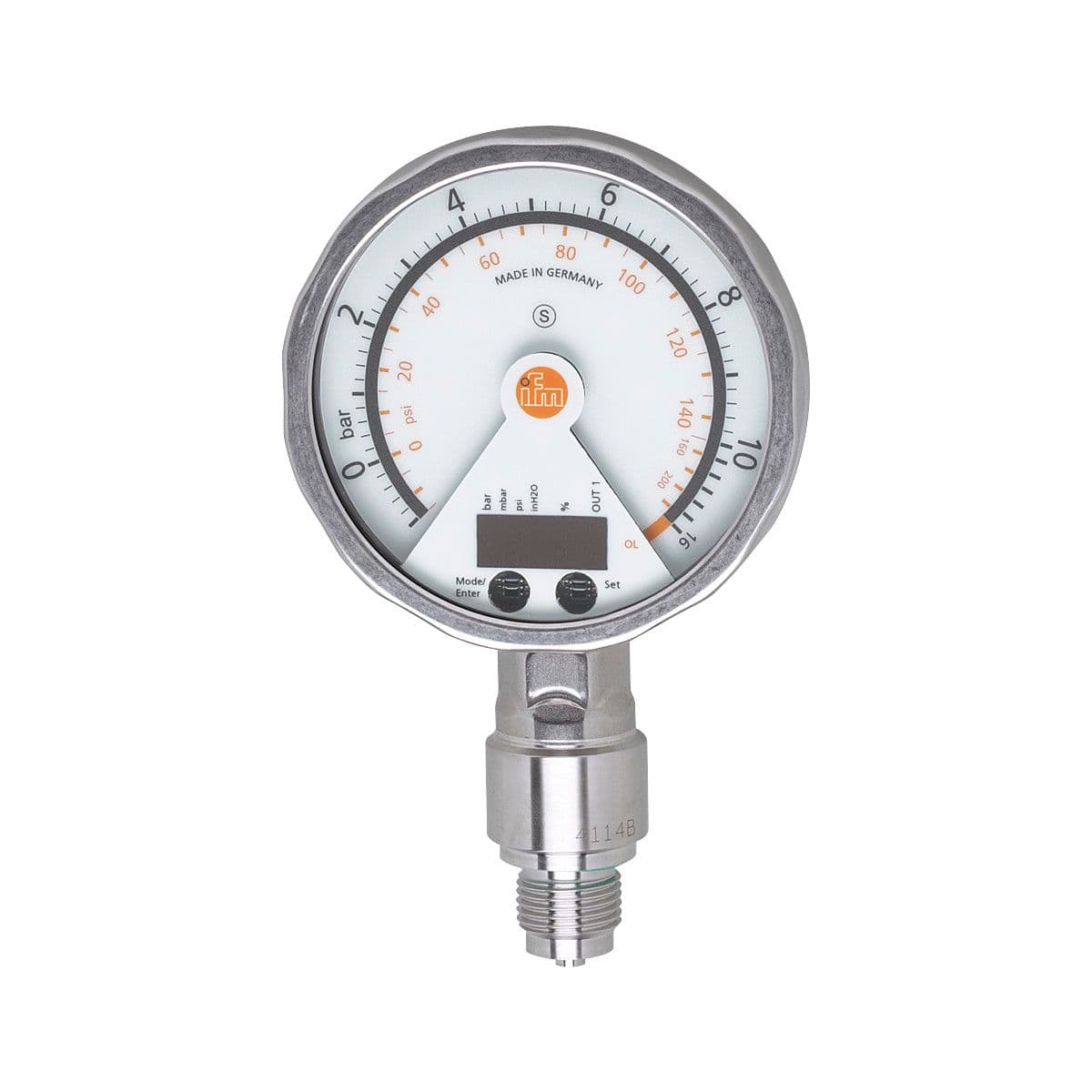

PG2454 ifm Electronic Electronic Components

Product Details

• Type of short-circuit protection
  yes (non-latching)
• Application
  for industrial applications
• MAWP (for applications according to CRN)
  38 bar 551 psi
• Protection class
  III
• Output function
  normally open / closed; (configurable)
• Media
  liquids and gases
• Output signal
  switching signal; analog signal; (configurable)
• Number of digital outputs
  1
• Short-circuit protection
  yes
• Min. bursting pressure
  150 bar 2175 psi
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Total number of outputs
  2
• Overload protection
  yes
• Process connection
  threaded connection G 1/2 external thread
• Current consumption [mA]
  < 70; (24 V)
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Number of analog outputs
  1
• Analog current output [mA]
  4...20, invertible; (scalable)
• Type of pressure
  relative pressure; vacuum
• System
  gold-plated contacts
Integrated watchdog
yes
Max. voltage drop switching output DC [V]
2
Max. load [Ω]
(Ub - 10 V) / 20 mA
Measuring range
-1...10 bar -14.4...145 psi
Medium temperature [°C]
-25...80
Reverse polarity protection
yes
Electrical design
PNP/NPN
Switching frequency DC [Hz]
75
Pressure rating
50 bar 725 psi
Operating voltage [V]
18...32 DC
Power-on delay time [s]
6
Permanent current rating of switching output DC [mA]
250
