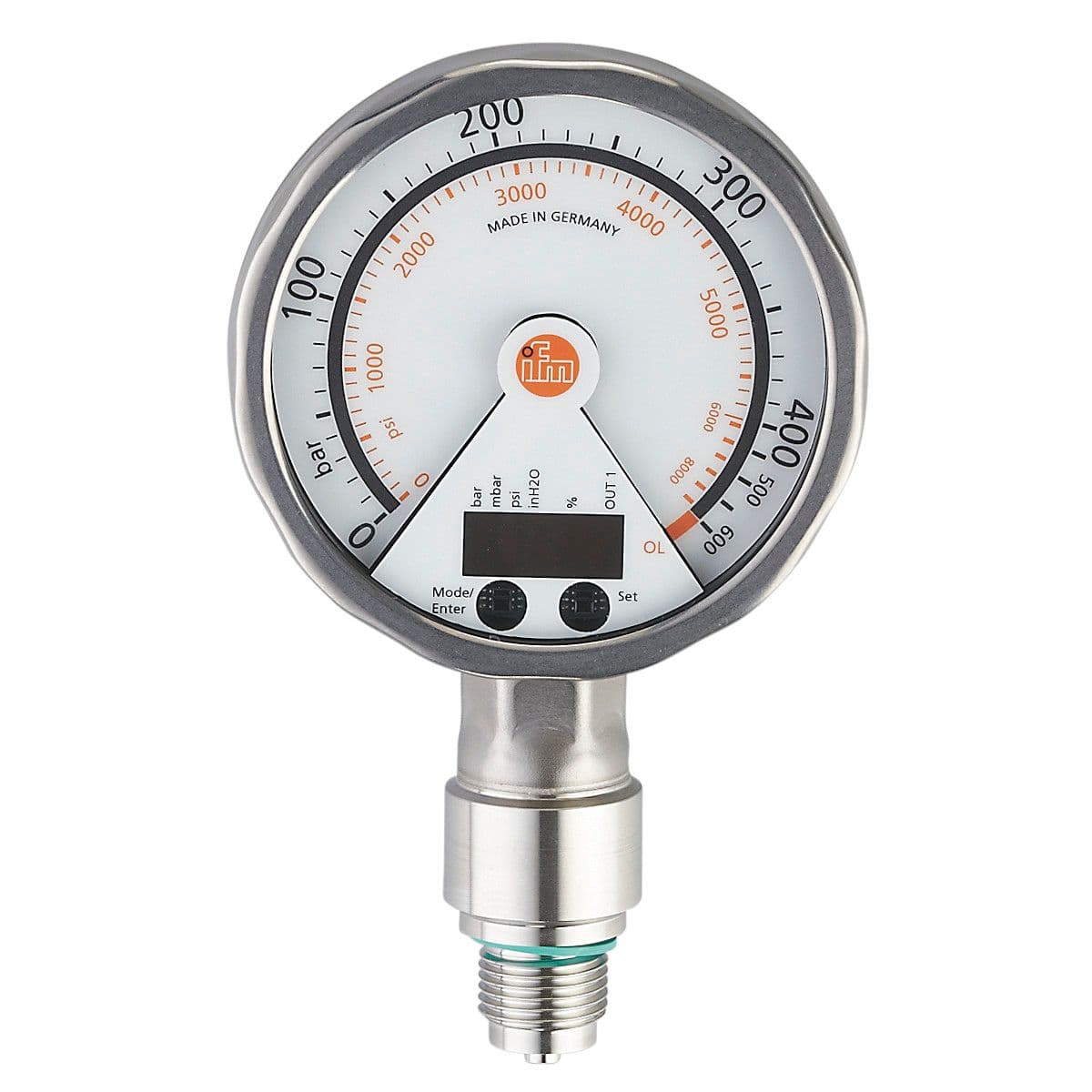

PG2451 ifm Electronic Electronic Components

Product Details

• Application
  for industrial applications
• Operating voltage [V]
  18...32 DC
• Electrical design
  PNP/NPN
• Pressure rating
  600 bar 8700 psi
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Analog current output [mA]
  4...20, invertible; (scalable)
• Output signal
  switching signal; analog signal; (configurable)
• Min. bursting pressure
  1000 bar 14500 psi
• Integrated watchdog
  yes
• Number of digital outputs
  1
• Process connection
  threaded connection G 1/2 external thread
• Measuring range
  0...250 bar 0...3625 psi
• Power-on delay time [s]
  6
• Total number of outputs
  2
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Media
  liquids and gases
• Protection class
  III
• Permanent current rating of switching output DC [mA]
  250
• Medium temperature [°C]
  -25...80
• Reverse polarity protection
  yes
Output function
normally open / closed; (configurable)
System
gold-plated contacts
Current consumption [mA]
< 70; (24 V)
Max. voltage drop switching output DC [V]
2
Type of short-circuit protection
yes (non-latching)
Conditionally suitable for
use in gases at pressures > 25 bar only on request
Min. insulation resistance [MΩ]
100; (500 V DC)
Switching frequency DC [Hz]
75
Overload protection
yes
Number of analog outputs
1
Type of pressure
relative pressure
Short-circuit protection
yes
