PM1503 ifm Electronic Electronic Components
Part#:PM1503
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

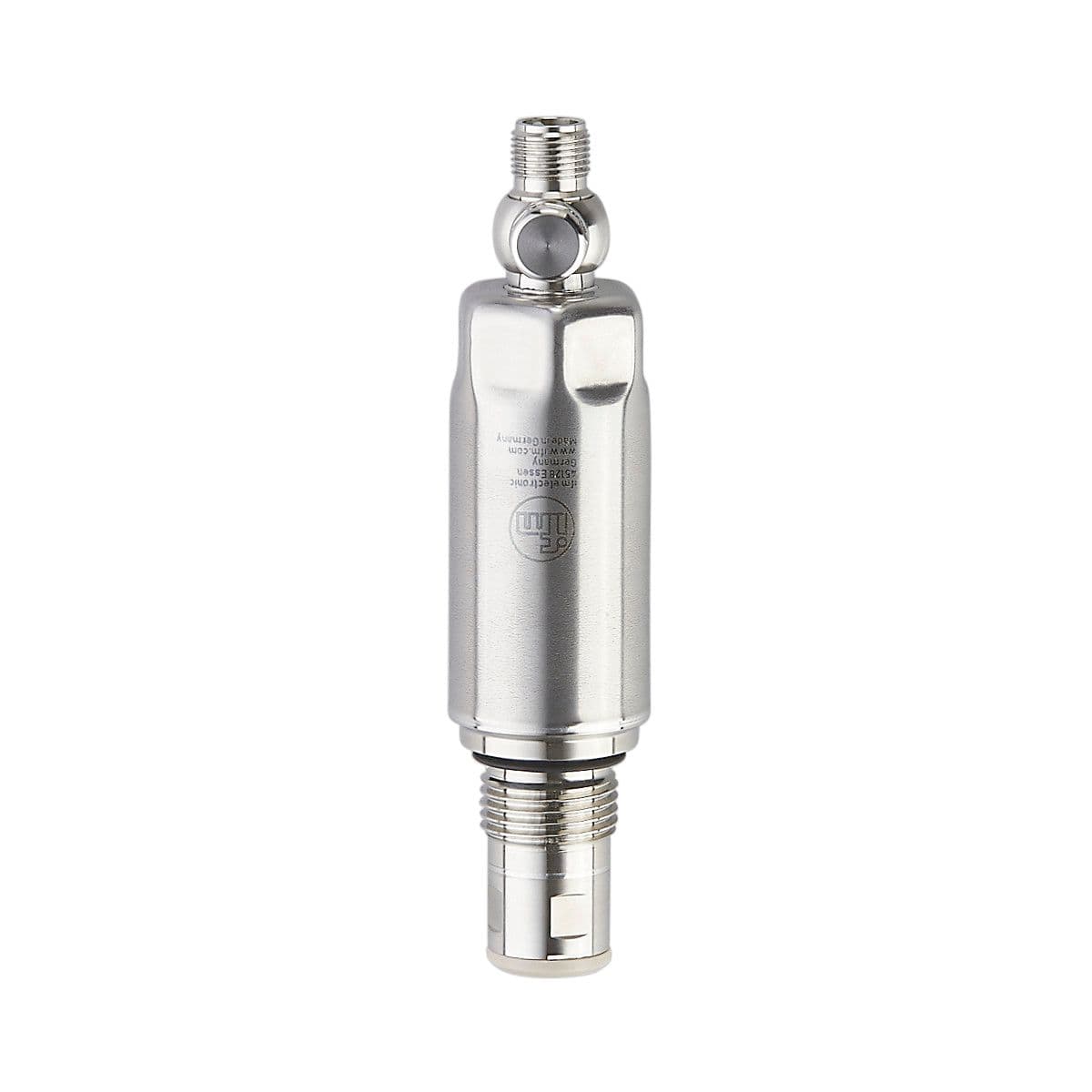

Electronic pressure sensor, Robust stainless steel housing for use in the food and beverage industry, Output signal: analog signal; IO-Link, Measuring range: -1...25 bar -14.6...362.6 psi -0.1...2.5 MPa, Process connection: threaded connection G 1/2 exter
Product Details
- Max. load [Ω] 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
- Overload protection yes
- Short-circuit proof yes
- Total number of outputs 2
- Analog current output [mA] 4...20; (scalable; 1:5)
- Power-on delay time [s] < 0.5
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Protection class III
- Reverse polarity protection yes
- Current consumption [mA] < 45
- Integrated watchdog yes
- Operating voltage [V] 18...30 DC
- No dead space yes
- Type of pressure relative pressure
- Vacuum resistance [mbar] -1000
- Pressure rating 160 bar 2300 psi 16 Mpa
- Min. bursting pressure 280 bar 3600 psi 28 MPa
- Measuring range -1...25 bar -14.6...362.6 psi -0.1...2.5 MPa
- Process connection threaded connection G 1/2 external thread sealing cone
- Application flush mountable for the food and beverage industry
- Output signal analog signal; IO-Link
- Temperature monitoring yes
- Medium temperature [°C] -25...125; (150 max. 1h)
- Media viscous media and liquids with suspended particles; liquids and gases
- System gold-plated contacts
- Measuring element ceramic-capacitive pressure measuring cell
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
