PM1505 ifm Electronic Electronic Components
Part#:PM1505
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

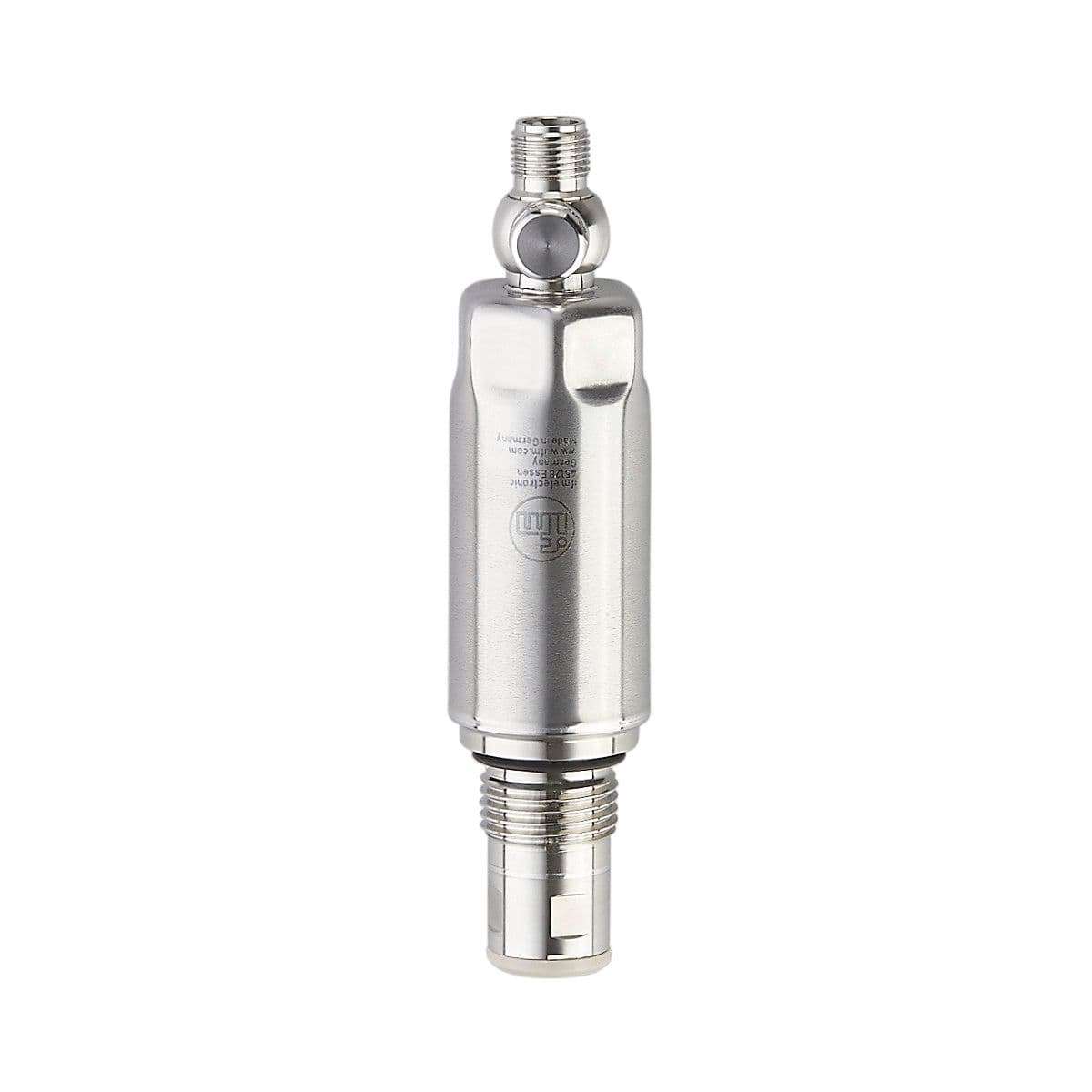

Electronic pressure sensor, Robust stainless steel housing for use in the food and beverage industry, Output signal: analog signal; IO-Link, Measuring range: -1...4 bar -14.5...58 psi -100...400 kPa, Process connection: threaded connection G 1/2 external
Product Details
- Overload protection yes
- Short-circuit proof yes
- Current consumption [mA] 3.5...21.5
- Output signal analog signal; IO-Link
- Integrated watchdog yes
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Operating voltage [V] 18...30 DC
- Measuring range -1...4 bar -14.5...58 psi -100...400 kPa
- Analog current output [mA] 4...20; (scalable; 1:5)
- Max. load [Ω] 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
- Total number of outputs 2
- Power-on delay time [s] < 0.5
- Vacuum resistance [mbar] -1000
- Pressure rating 40 bar 580 psi 4000 kPa
- Type of pressure relative pressure
- Protection class III
- No dead space yes
- Reverse polarity protection yes
- Medium temperature [°C] -25...125; (< 1 h: 150)
- Min. bursting pressure 80 bar 1200 psi 8000 kPa
- Media viscous media and liquids with suspended particles; liquids and gases
- Measuring element ceramic-capacitive pressure measuring cell
- Temperature monitoring yes
- Application flush mountable for the food and beverage industry
- Process connection threaded connection G 1/2 external thread sealing cone
- System gold-plated contacts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
