PM1504 ifm Electronic Electronic Components
Part#:PM1504
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

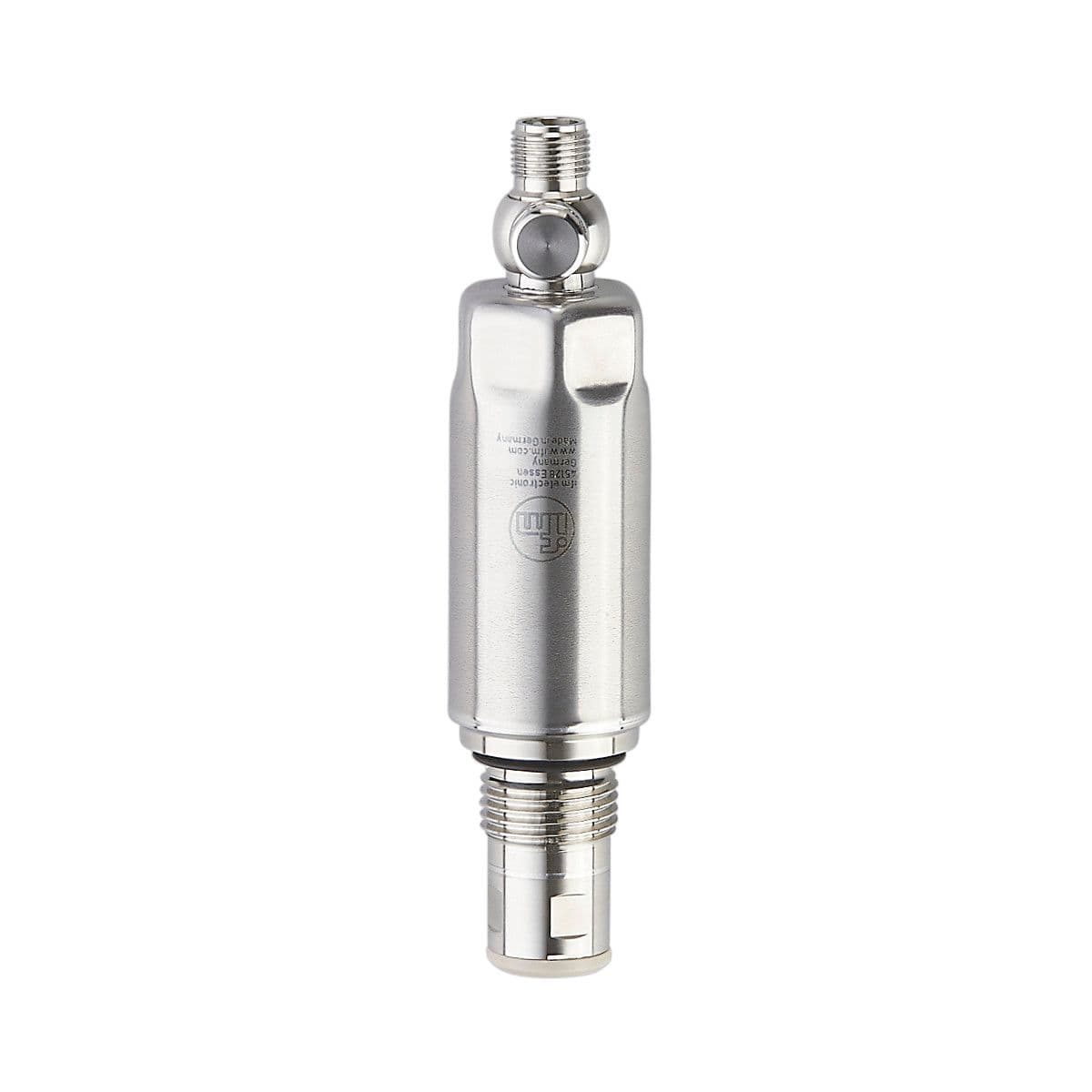

Electronic pressure sensor, Robust stainless steel housing for use in the food and beverage industry, Output signal: analog signal; IO-Link, Measuring range: -1...10 bar -14.5...145 psi -0.1...1 MPa, Process connection: threaded connection G 1/2 external
Product Details
- Temperature monitoring yes
- No dead space yes
- Total number of outputs 2
- Operating voltage [V] 18...30 DC
- Power-on delay time [s] < 1
- Short-circuit proof yes
- Measuring range -1...10 bar -14.5...145 psi -0.1...1 MPa
- Application flush mountable for the food and beverage industry
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Type of pressure relative pressure; vacuum
- Overload protection yes
- System gold-plated contacts
- Measuring element ceramic-capacitive pressure measuring cell
- Protection class III
- Integrated watchdog yes
- Analog current output [mA] 4...20; (scalable; 1:5)
- Media viscous media and liquids with suspended particles; liquids and gases
- Vacuum resistance [mbar] -1000
- Min. bursting pressure 175 bar 2538 psi 17 MPa
- Medium temperature [°C] -25...125; (< 1 h: 150)
- Process connection threaded connection G 1/2 external thread sealing cone
- Pressure rating 75 bar 1100 psi 7.5 Mpa
- Current consumption [mA] < 45
- Max. load [Ω] 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
- Reverse polarity protection yes
- Output signal analog signal; IO-Link
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
