PM1506 ifm Electronic Electronic Components
Part#:PM1506
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

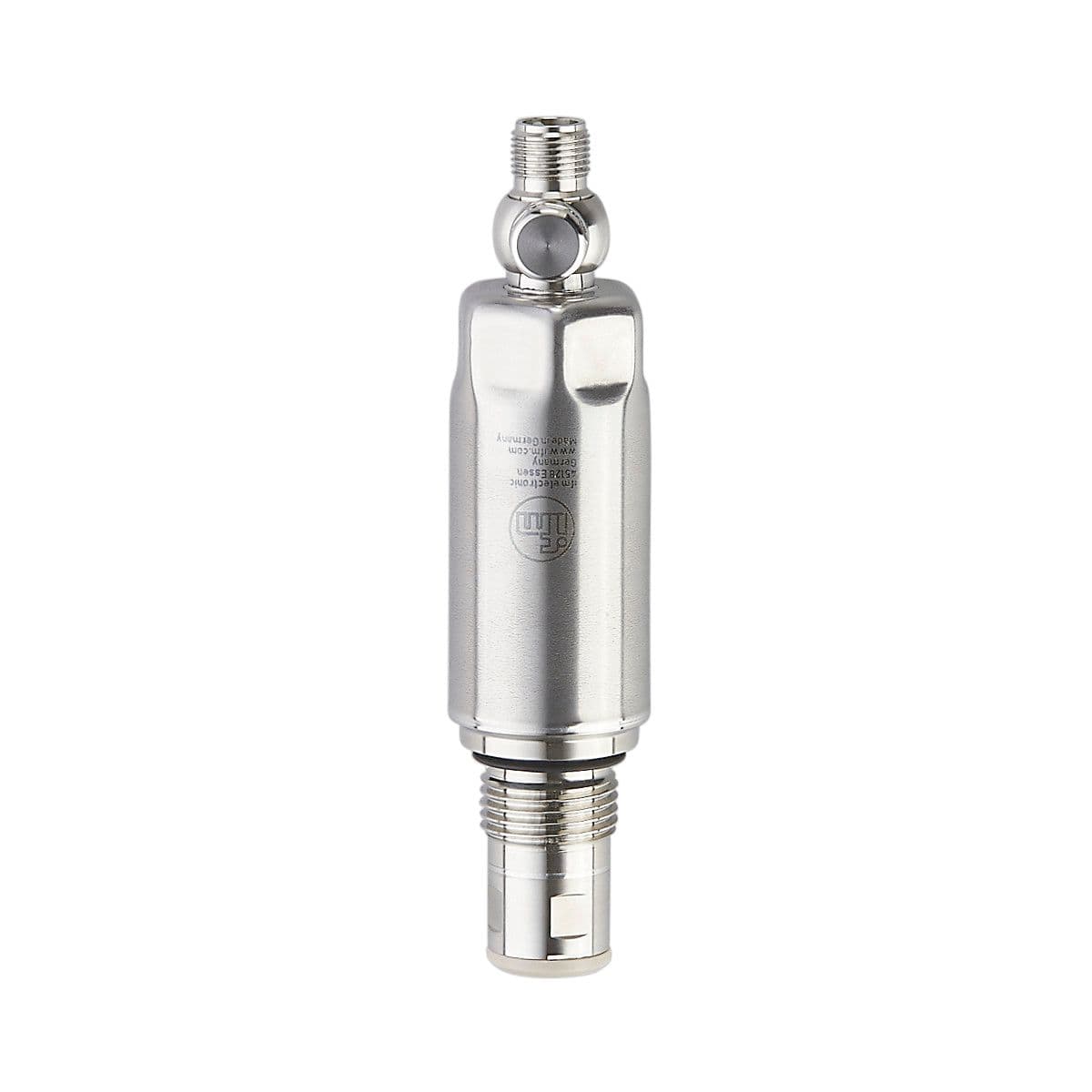

Electronic pressure sensor, Robust stainless steel housing for use in the food and beverage industry, Output signal: analog signal; IO-Link, Measuring range: -125...2500 mbar -1.82...36.26 psi -12.5...250 kPa, Process connection: threaded connection G 1/2
Product Details
- Max. load [Ω] 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
- Integrated watchdog yes
- Measuring element ceramic-capacitive pressure measuring cell
- Type of pressure relative pressure
- Process connection threaded connection G 1/2 external thread sealing cone
- Vacuum resistance [mbar] -1000
- Overload protection yes
- Analog current output [mA] 4...20; (scalable; 1:5)
- Short-circuit proof yes
- Power-on delay time [s] < 0.5
- Min. bursting pressure 50000 mbar 725 psi 5000 kPa
- Reverse polarity protection yes
- Current consumption [mA] < 45
- Total number of outputs 2
- Protection class III
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Operating voltage [V] 18...30 DC
- Pressure rating 30000 mbar 435 psi 3000 kPa
- No dead space yes
- System gold-plated contacts
- Temperature monitoring yes
- Medium temperature [°C] -25...125; (< 1 h: 150)
- Measuring range -125...2500 mbar -1.82...36.26 psi -12.5...250 kPa
- Media viscous media and liquids with suspended particles; liquids and gases
- Output signal analog signal; IO-Link
- Application flush mountable for the food and beverage industry
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
