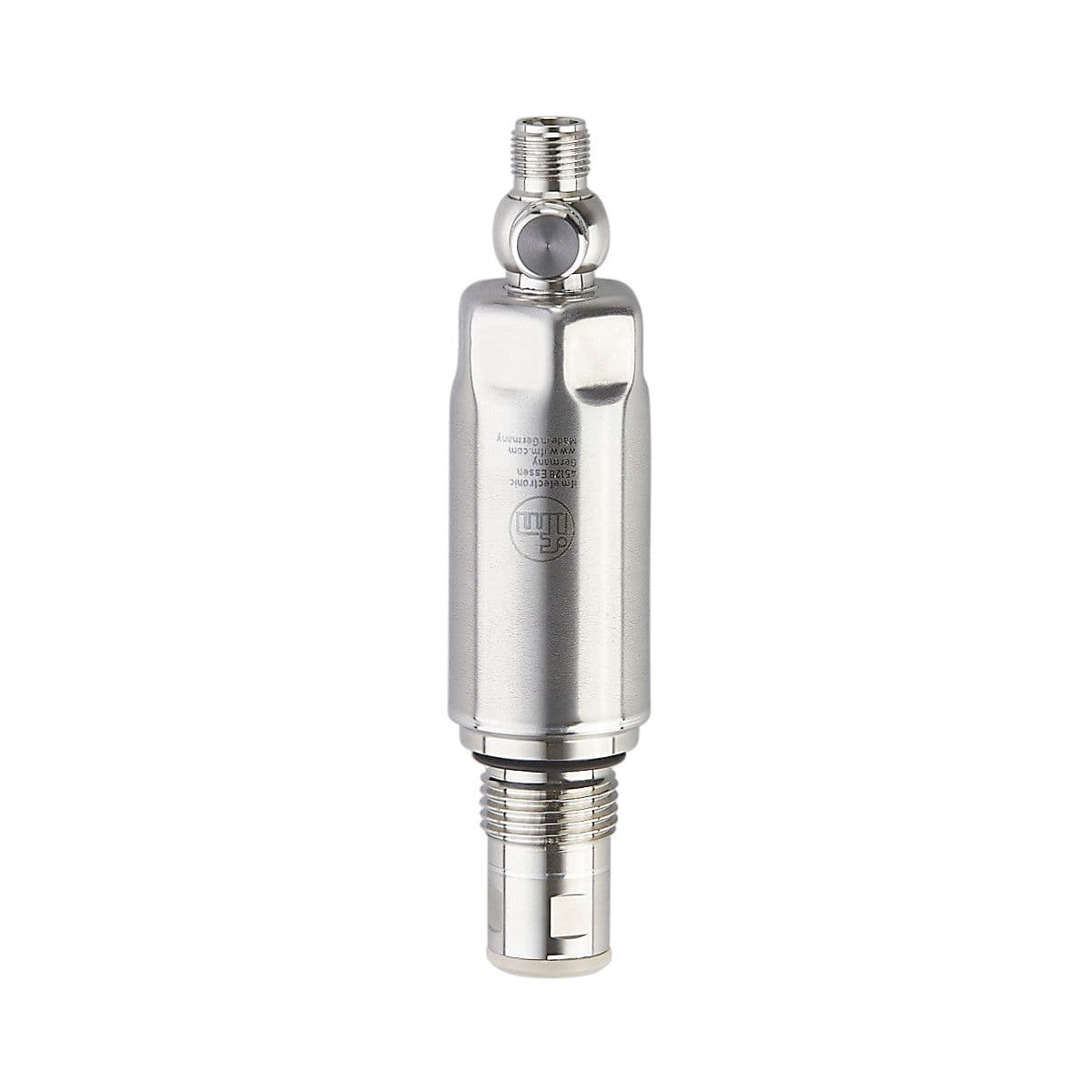

PM1543 ifm Electronic Electronic Components

Product Details

• Pressure rating
  200 bar 2900 psi 20 Mpa
• Output signal
  analog signal; IO-Link
• Max. load [Ω]
  700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
• Application
  flush mountable for the food and beverage industry
• Conditionally suitable for
  use in gases at pressures > 25 bar only on request
• Type of pressure
  relative pressure
• Measuring range
  -1...40 bar -14.6...580.2 psi -0.1...4 MPa
• Min. bursting pressure
  300 bar 4350 psi 30 MPa
• Operating voltage [V]
  18...30 DC
• Reverse polarity protection
  yes
• Temperature monitoring
  yes
• Medium temperature [°C]
  -25...125; (< 1 h: 150)
• Protection class
  III
• Media
  viscous media and liquids with suspended particles; liquids and gases
• No dead space
  yes
• Current consumption [mA]
  < 45
• Analog current output [mA]
  4...20; (scalable; 1:5)
• Measuring element
  ceramic-capacitive pressure measuring cell
• Power-on delay time [s]
  < 0.5
• Vacuum resistance [mbar]
  -1000
Short-circuit proof
yes
Integrated watchdog
yes
Process connection
threaded connection G 1/2 external thread sealing cone
Min. insulation resistance [MΩ]
100; (500 V DC)
Overload protection
yes
System
gold-plated contacts
Total number of outputs
2
