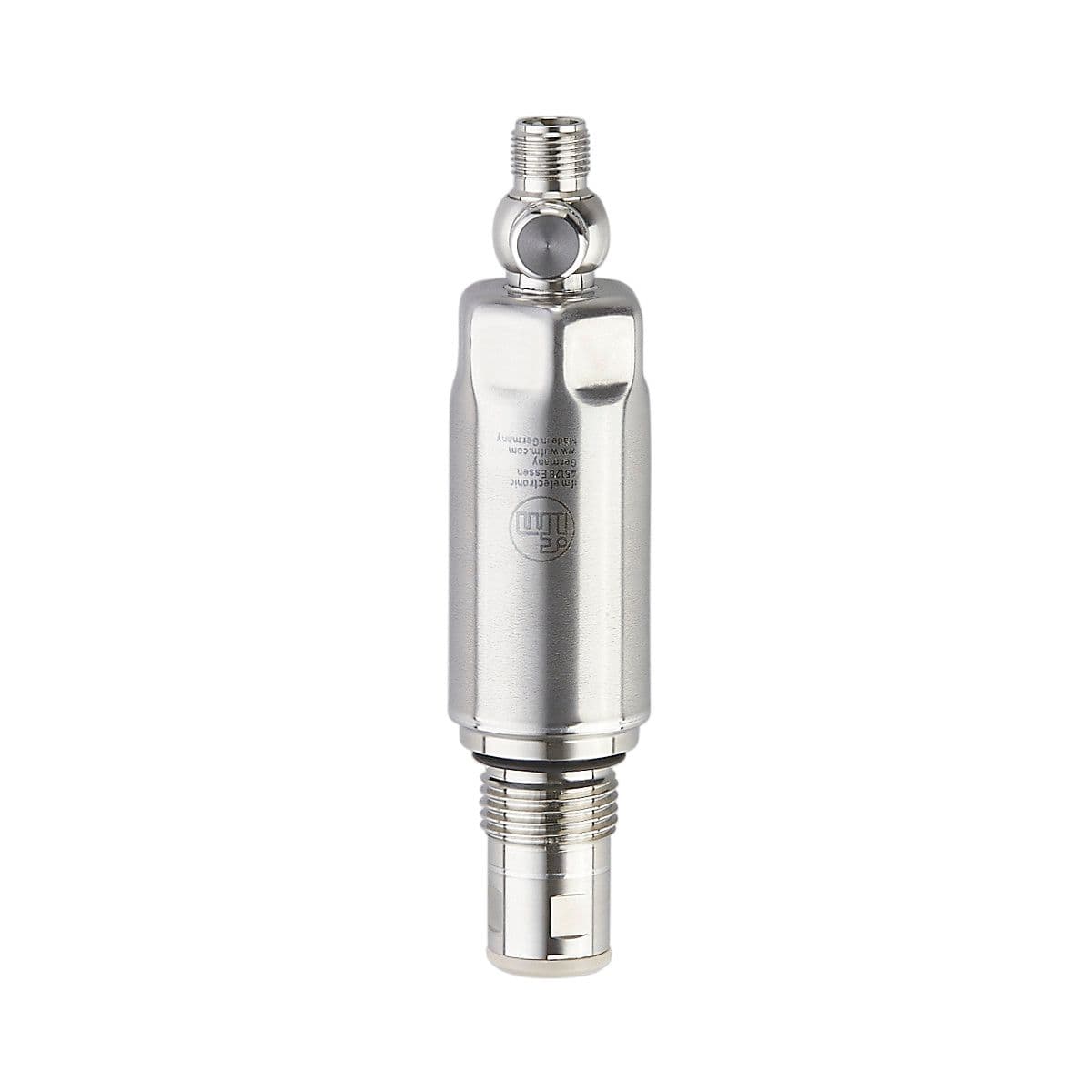

PM1514 ifm Electronic Electronic Components

Product Details

• Measuring range
  -1...16 bar -14.6...232 psi -0.1...1.6 MPa
• Protection class
  III
• Output signal
  analog signal; IO-Link
• Application
  flush mountable for the food and beverage industry
• Type of pressure
  relative pressure
• Total number of outputs
  2
• Medium temperature [°C]
  -25...125; (< 1 h: 150)
• No dead space
  yes
• Overload protection
  yes
• Measuring element
  ceramic-capacitive pressure measuring cell
• Vacuum resistance [mbar]
  -1000
• Current consumption [mA]
  < 45
• Analog current output [mA]
  4...20; (scalable; 1:5)
• System
  gold-plated contacts
• Integrated watchdog
  yes
• Operating voltage [V]
  18...30 DC
• Process connection
  threaded connection G 1/2 external thread sealing cone
• Pressure rating
  110 bar 1600 psi 11 Mpa
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Max. load [Ω]
  700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA)
Power-on delay time [s]
< 0.5
Temperature monitoring
yes
Min. bursting pressure
250 bar 3625 psi 25 MPa
Media
viscous media and liquids with suspended particles; liquids and gases
Reverse polarity protection
yes
Short-circuit proof
yes
