ID0013 ifm Electronic Electronic Components

Name: ID0013
Brand: ifm Electronic

Part#:ID0013

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

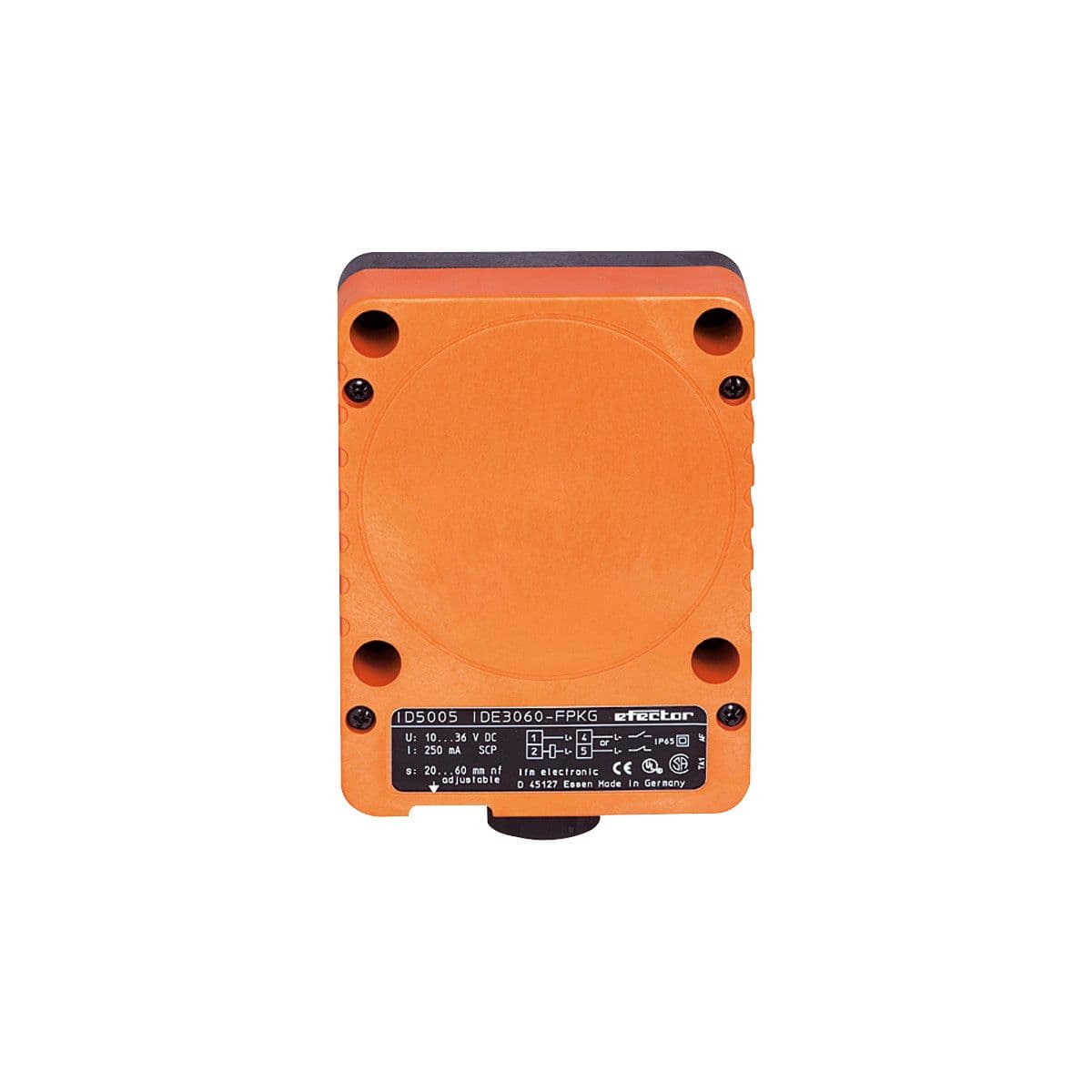

Inductive sensor, Very long sensing range and large active sensor face, Output function: normally open / closed; (selectable), Sensing range [mm]: 60, Housing: rectangular, Dimensions [mm]: 105 x 80 x 40

Product Details

Protection class
II
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Overload protection
no
Reverse polarity protection
no
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 1 (24 V DC)
Output function
normally open / closed; (selectable)
Minimum load current [mA]
5
Short-circuit proof
no
Max. voltage drop switching output DC [V]
6.5
Max. voltage drop switching output AC [V]
6.5
Sensing range [mm]
60
Switching frequency AC [Hz]
4
Dimensions [mm]
105 x 80 x 40
Switching frequency DC [Hz]
4
Operating voltage [V]
20...250 AC/DC
Permanent current rating of switching output DC [mA]
100
Housing
rectangular
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

ID0013 Related Documents

PDF data sheet-1631071449819.pdf CAD_DXF_100_0114.ZIP-1631071449816.zip CAD_SAT_100_0114.ZIP-1631071449825.zip CAD_DWG_100_0114.ZIP-1631071449821.zip CAD_STP_100_0114.ZIP-1631071449823.zip
