ID0036 ifm Electronic Electronic Components
Part#:ID0036
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

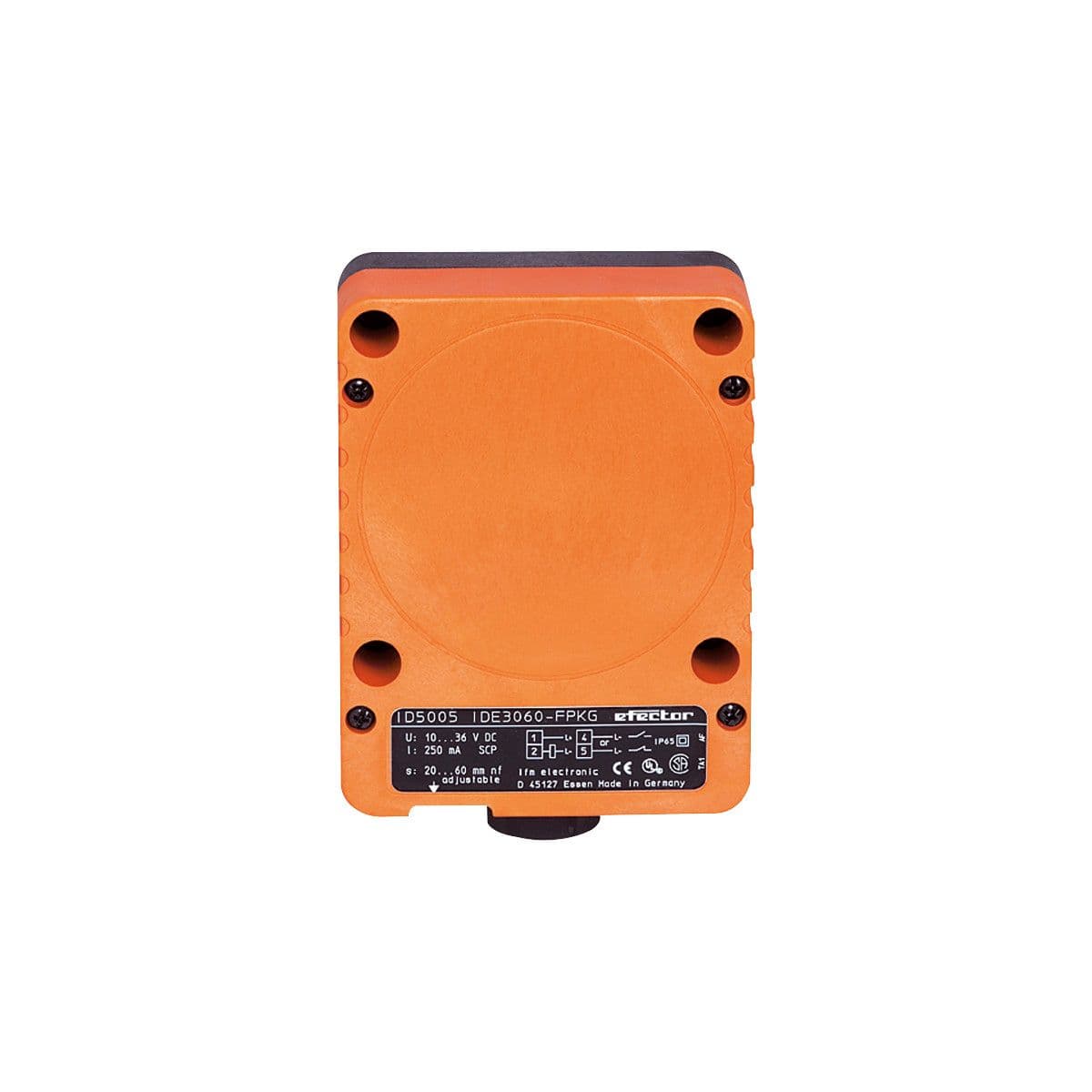

Inductive sensor, Very long sensing range and large active sensor face, Output function: normally open / closed; (selectable), Sensing range [mm]: 60, Housing: rectangular
Product Details
- Housing rectangular
- Protection class II
- Short-circuit proof no
- Max. voltage drop switching output AC [V] 6.5
- Max. leakage current [mA] 2.5 (250 V AC) / 1.3 (110 V AC) / 1 (24 V DC)
- Sensing range [mm] 60
- Minimum load current [mA] 5
- Overload protection no
- Permanent current rating of switching output DC [mA] 100
- Output function normally open / closed; (selectable)
- Reverse polarity protection no
- Permanent current rating of switching output AC [mA] 250; (350 (...50 °C))
- Operating voltage [V] 20...250 AC/DC
- Switching frequency DC [Hz] 4
- Short-time current rating of switching output [mA] 2200; (20 ms / 0,5 Hz)
- Max. voltage drop switching output DC [V] 6.5
- Switching frequency AC [Hz] 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
