ID002A ifm Electronic Electronic Components
Part#:ID002A
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

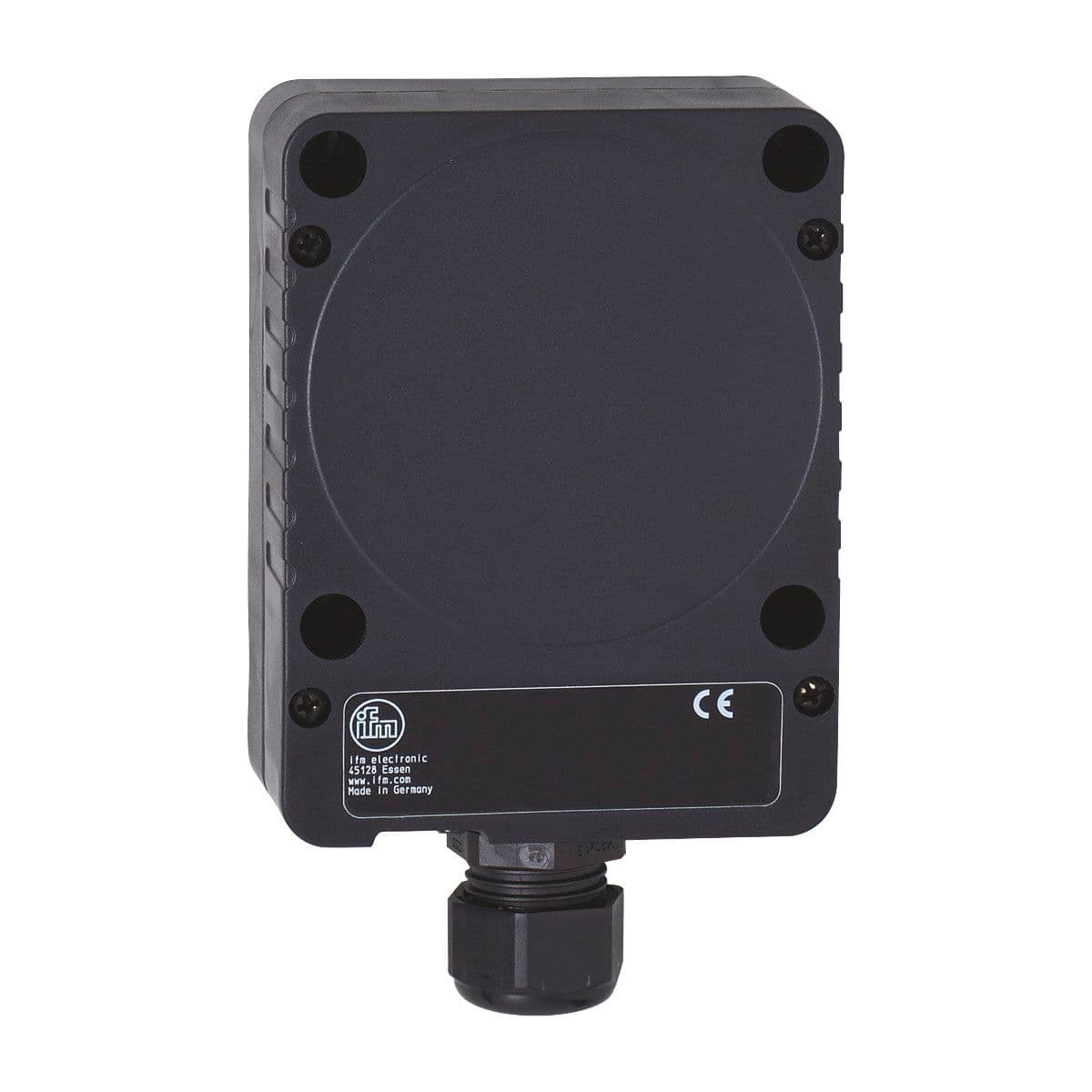

Inductive sensor, For applications in hazardous areas, Output function: normally open / closed; (selectable), Sensing range [mm]: 60, Housing: rectangular, Dimensions [mm]: 105 x 80 x 42
Product Details
- Operating voltage [V] 20...250 AC/DC
- Short-time current rating of switching output [mA] 2200; (20 ms / 0,5 Hz)
- Short-circuit proof no
- Sensing range [mm] 60
- Notes on switching frequency only for resistive loads; 2 Hz for utilization category AC-140
- Output function normally open / closed; (selectable)
- Max. leakage current [mA] 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
- Housing rectangular
- Permanent current rating of switching output AC [mA] 200
- Dimensions [mm] 105 x 80 x 42
- Minimum load current [mA] 5
- Overload protection no
- Protection class II
- Permanent current rating of switching output DC [mA] 100
- Switching frequency AC [Hz] 4
- Max. voltage drop switching output DC [V] 6
- Reverse polarity protection no
- Max. voltage drop switching output AC [V] 6.5
- Switching frequency DC [Hz] 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
