ID0015 ifm Electronic Electronic Components

Name: ID0015
Brand: ifm Electronic

Part#:ID0015

Category:Electronic Components

Product Lifecycle:Active

Product description

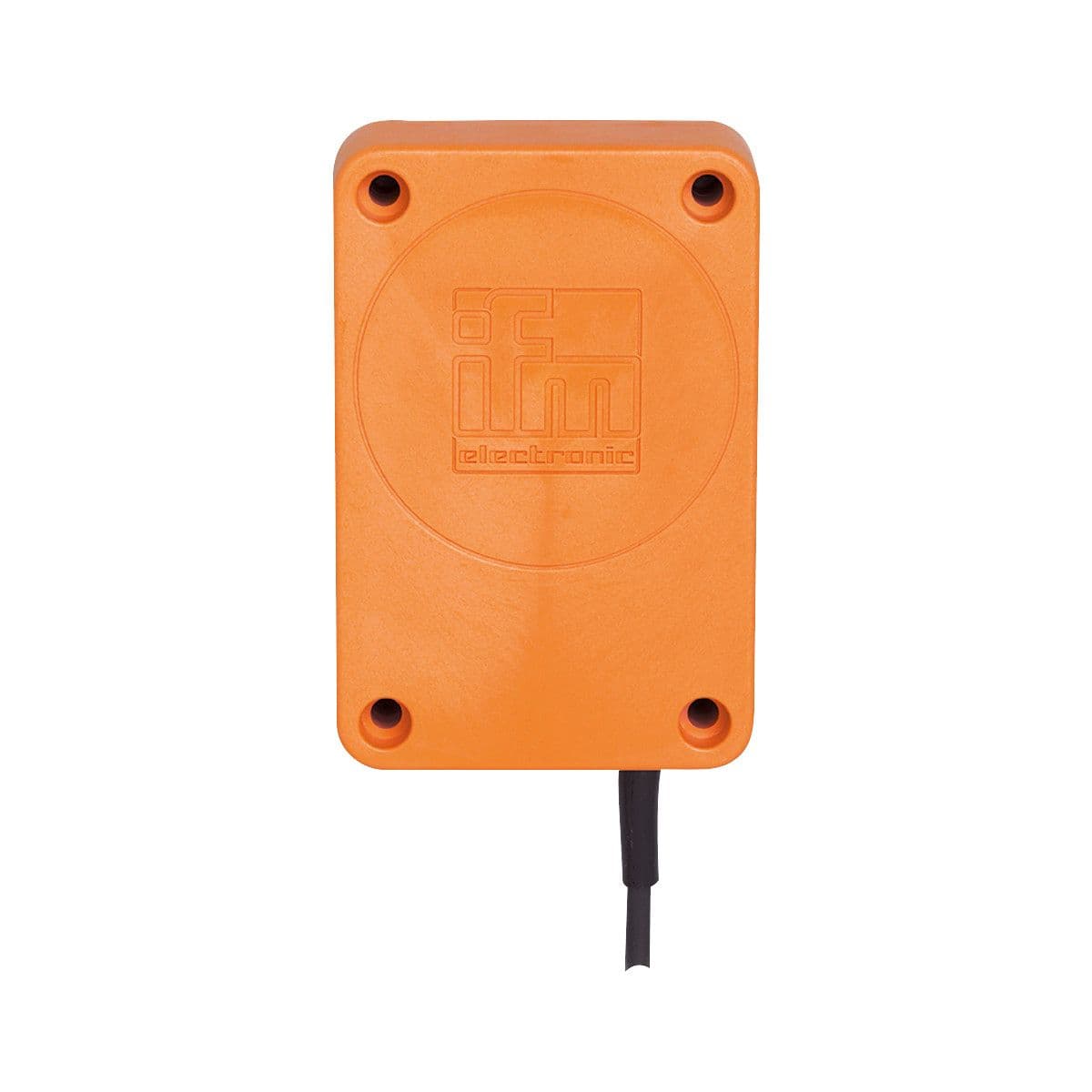

Inductive sensor, Very long sensing range, Output function: normally closed, Sensing range [mm]: 50, Housing: rectangular, Dimensions [mm]: 120 x 80 x 30

Product Details

Dimensions [mm]
120 x 80 x 30
Short-circuit proof
no
Reverse polarity protection
no
Minimum load current [mA]
5
Overload protection
no
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Switching frequency DC [Hz]
35
Sensing range [mm]
50
Operating voltage [V]
20...250 AC/DC
Output function
normally closed
Max. voltage drop switching output AC [V]
5.5
Switching frequency AC [Hz]
25
Max. voltage drop switching output DC [V]
5
Protection class
II
Permanent current rating of switching output DC [mA]
100
Housing
rectangular
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
