ID0014 ifm Electronic Electronic Components

Name: ID0014
Brand: ifm Electronic

Part#:ID0014

Category:Electronic Components

Product Lifecycle:Active

Product description

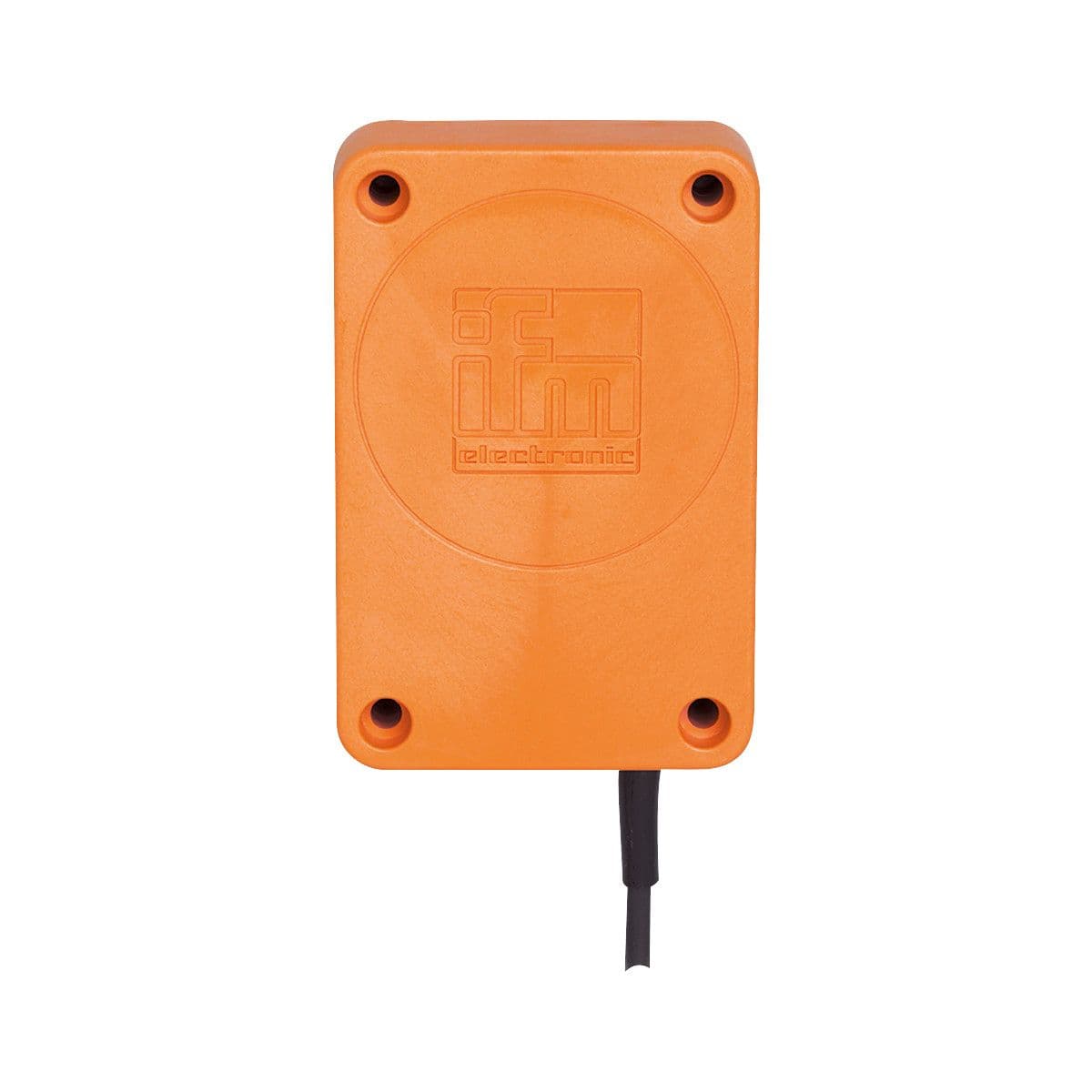

Inductive sensor, Very long sensing range, Output function: normally open, Sensing range [mm]: 50, Housing: rectangular, Dimensions [mm]: 120 x 80 x 30

Product Details

Max. voltage drop switching output DC [V]
5
Max. voltage drop switching output AC [V]
5.5
Output function
normally open
Switching frequency DC [Hz]
35
Minimum load current [mA]
5
Reverse polarity protection
no
Sensing range [mm]
50
Switching frequency AC [Hz]
25
Permanent current rating of switching output AC [mA]
250; (350 (...50 °C))
Short-circuit proof
no
Operating voltage [V]
20...250 AC/DC
Protection class
II
Housing
rectangular
Permanent current rating of switching output DC [mA]
100
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Overload protection
no
Dimensions [mm]
120 x 80 x 30

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

ID0014 Related Documents

PDF data sheet-1631071312567.pdf CAD_DWG_100_0112.ZIP-1631071312572.zip CAD_DXF_100_0112.ZIP-1631071312560.zip CAD_SAT_100_0112.ZIP-1631071312553.zip CAD_STP_100_0112.ZIP-1631071312558.zip
