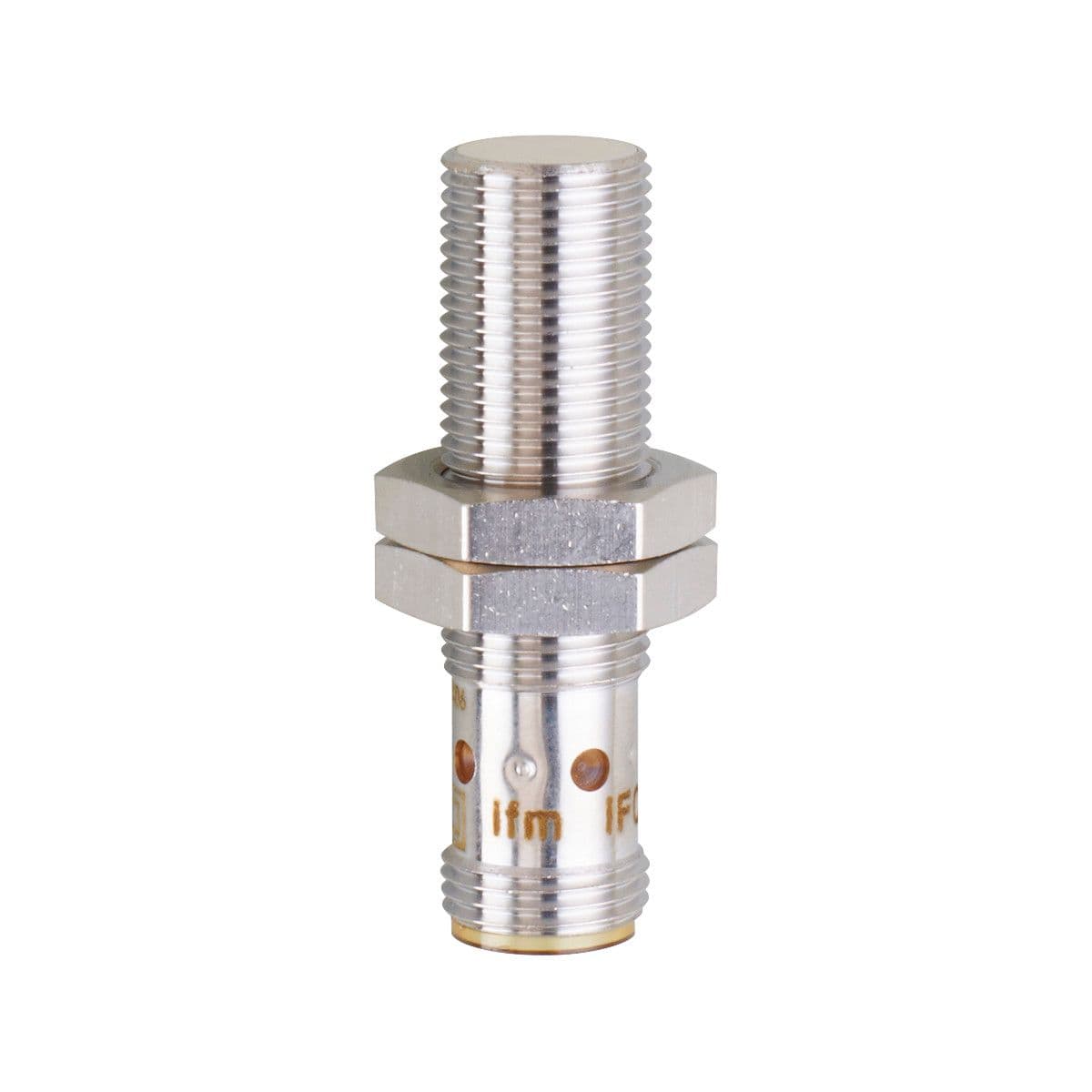

IFC204 ifm Electronic Electronic Components

Name: IFC204
Brand: ifm Electronic

Part#:IFC204

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

Inductive sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 45, System: gold-plated contacts; Increased sensing range, A

Product Details

System
gold-plated contacts; Increased sensing range
Overload protection
yes
Current consumption [mA]
< 10
Permanent current rating of switching output DC [mA]
100
Dimensions [mm]
M12 x 1 / L = 45
Housing
Threaded type
Protection class
II
Application
Oils and coolants
Electrical design
PNP
Short-circuit protection
yes
Sensing range [mm]
4
Reverse polarity protection
yes
Max. voltage drop switching output DC [V]
2.5
Output function
normally open
Operating voltage [V]
10...30 DC
Switching frequency DC [Hz]
700

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IFC204 Related Documents

CAD_SAT_100_0718.ZIP-1631071262387.zip CAD_STP_100_0718.ZIP-1631071262380.zip PDF data sheet-1631071262393.pdf CAD_DXF_100_0718.ZIP-1631071262388.zip CAD_DWG_100_0718.ZIP-1631071262385.zip
