IFC278 ifm Electronic Electronic Components

Name: IFC278
Brand: ifm Electronic

Part#:IFC278

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

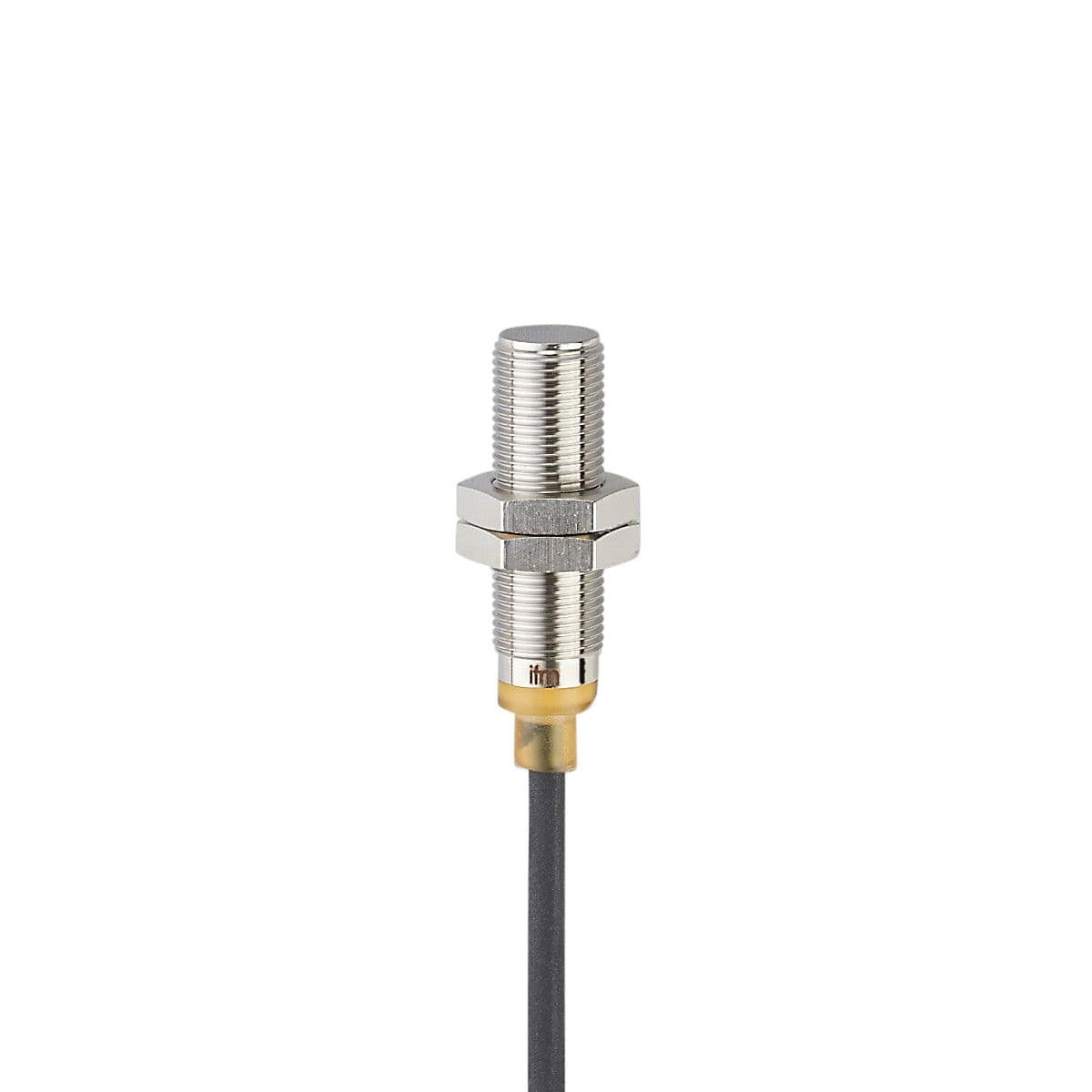

Inductive full-metal sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 40, System: Drag chain suitability; Increased sen

Product Details

Application
Oils and coolants
Sensing range [mm]
4
Current consumption [mA]
< 10
Housing
Threaded type
Note on pressure rating
sensing face
Pressure rating [bar]
50
Operating voltage [V]
10...30 DC
Reverse polarity protection
yes
Protection class
III
System
Drag chain suitability; Increased sensing range; Full-metal housing
Dimensions [mm]
M12 x 1 / L = 40
Switching frequency DC [Hz]
100
Max. voltage drop switching output DC [V]
2.5
Output function
normally open
Permanent current rating of switching output DC [mA]
100
Overload protection
yes
Short-circuit protection
yes
Electrical design
PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IFC278 Related Documents

PDF data sheet-1631071400113.pdf CAD_STP_100_0742.ZIP-1631071400118.zip CAD_DWG_100_0742.ZIP-1631071400111.zip CAD_DXF_100_0742.ZIP-1631071400121.zip CAD_SAT_100_0742.ZIP-1631071400110.zip
