IFC261 ifm Electronic Electronic Components

Name: IFC261
Brand: ifm Electronic

Part#:IFC261

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

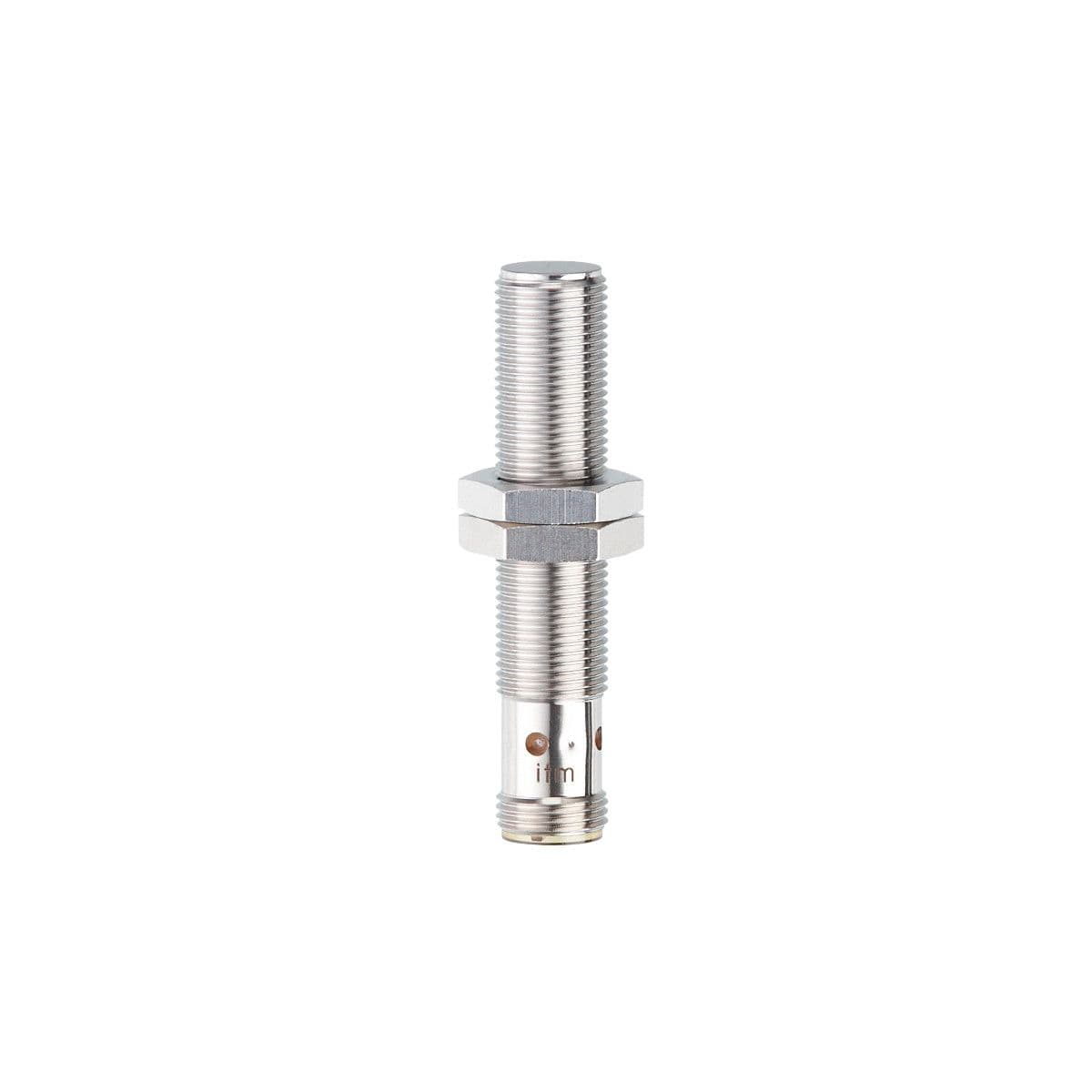

Inductive full-metal sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally closed, Sensing range [mm]: 3, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 60, System: gold-plated contacts; Full-metal ho

Product Details

Note on pressure rating
sensing face
Short-circuit protection
yes
Reverse polarity protection
yes
Electrical design
PNP
Output function
normally closed
Housing
Threaded type
System
gold-plated contacts; Full-metal housing
Switching frequency DC [Hz]
100
Permanent current rating of switching output DC [mA]
100
Operating voltage [V]
10...30 DC
Sensing range [mm]
3
Application
Oils and coolants
Overload protection
yes
Pressure rating [bar]
100
Type of short-circuit protection
yes (non-latching)
Protection class
III
Dimensions [mm]
M12 x 1 / L = 60
Current consumption [mA]
< 20
Max. voltage drop switching output DC [V]
2.5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IFC261 Related Documents

CAD_DWG_100_0703.ZIP-1631071359640.zip CAD_STP_100_0703.ZIP-1631071359642.zip PDF data sheet-1631071359637.pdf CAD_SAT_100_0703.ZIP-1631071359660.zip CAD_DXF_100_0703.ZIP-1631071359656.zip
