IFC209 ifm Electronic Electronic Components
Part#:IFC209
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

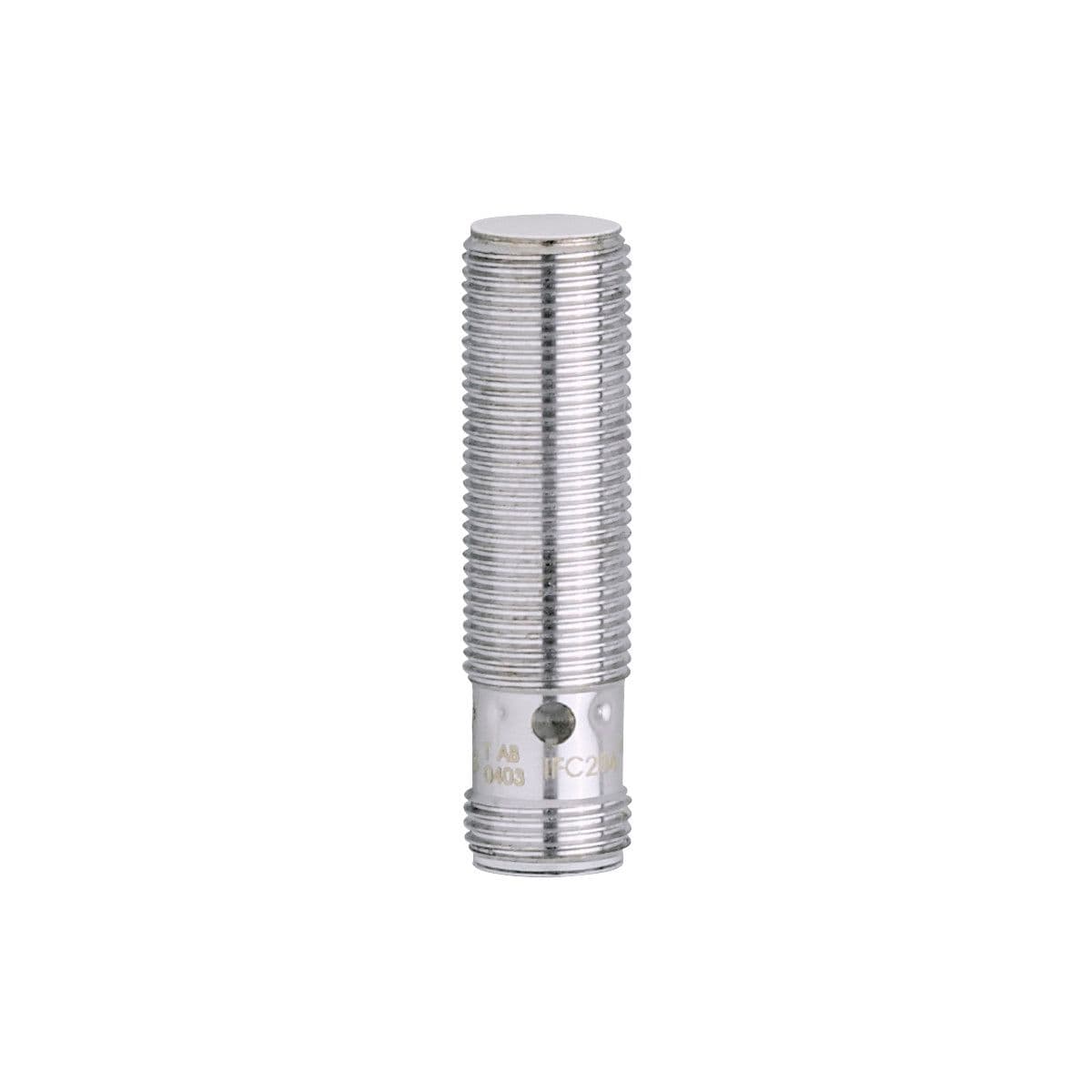

Inductive sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally closed, Sensing range [mm]: 4, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 45, System: gold-plated contacts; Increased sensing range,
Product Details
- System gold-plated contacts; Increased sensing range
- Current consumption [mA] 10; (24 V)
- Overload protection yes
- Operating voltage [V] 10...36 DC
- Type of short-circuit protection yes (non-latching)
- Application Oils and coolants
- Short-circuit protection yes
- Dimensions [mm] M12 x 1 / L = 45
- Max. voltage drop switching output DC [V] 2.5
- Protection class II
- Electrical design PNP
- Housing Threaded type
- Switching frequency DC [Hz] 700
- Sensing range [mm] 4
- Permanent current rating of switching output DC [mA] 100
- Output function normally closed
- Reverse polarity protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
