IFC264 ifm Electronic Electronic Components

Name: IFC264
Brand: ifm Electronic

Part#:IFC264

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

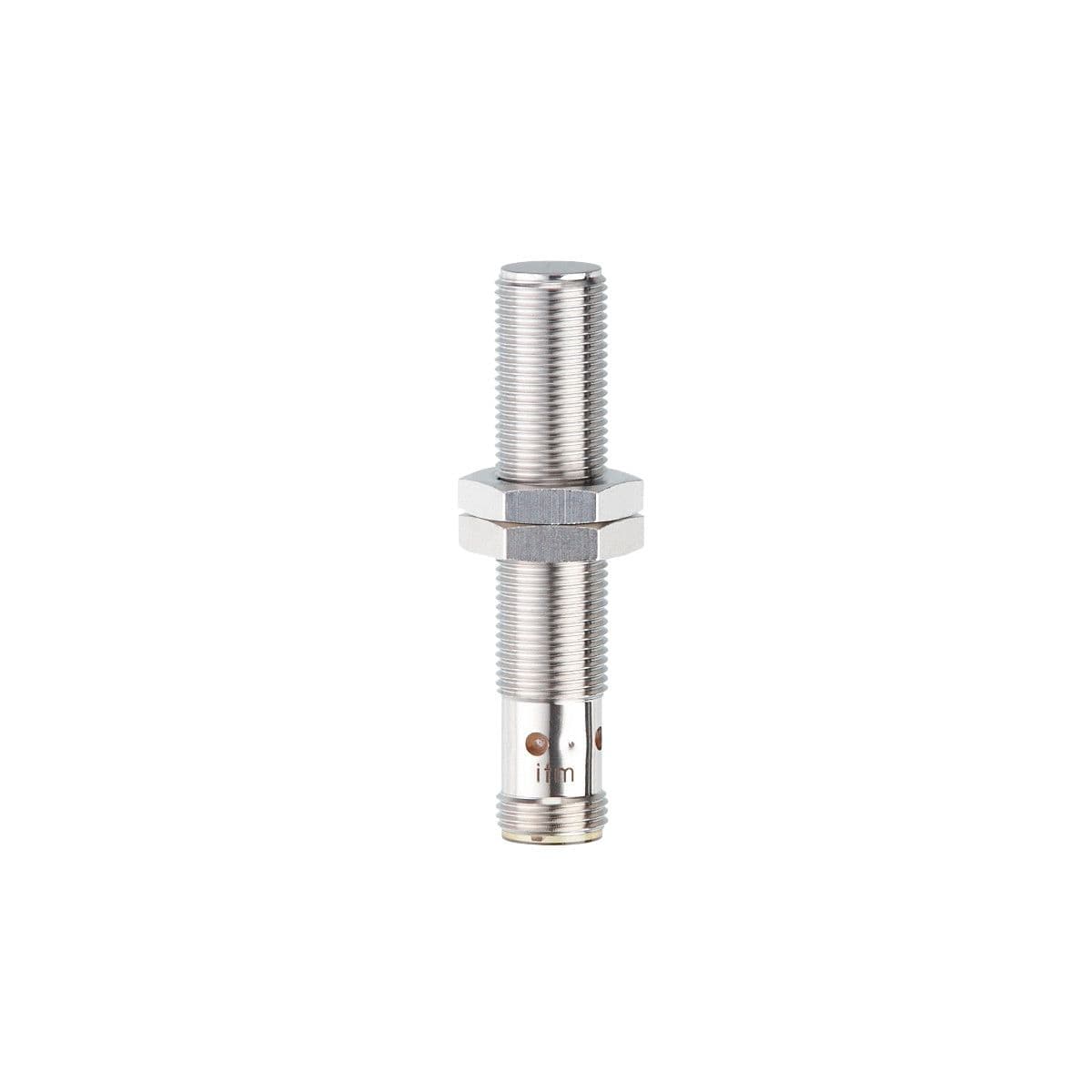

Inductive full-metal sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally closed, Sensing range [mm]: 2.5, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 60, System: gold-plated contacts; Increased s

Product Details

Media
Ferrous only; aluminum chip immune
Current consumption [mA]
< 20
Sensing range [mm]
2.5
Permanent current rating of switching output DC [mA]
100
System
gold-plated contacts; Increased sensing range; Full-metal housing; correction factor = 0
Note on pressure rating
sensing face
Protection class
III
Electrical design
PNP
Dimensions [mm]
M12 x 1 / L = 60
Pressure rating [bar]
100
Switching frequency DC [Hz]
100
Operating voltage [V]
10...30 DC
Output function
normally closed
Housing
Threaded type
Reverse polarity protection
yes
Short-circuit protection
yes
Overload protection
yes
Application
Oils and coolants
Max. voltage drop switching output DC [V]
2.5
Type of short-circuit protection
yes (non-latching)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IFC264 Related Documents

CAD_SAT_100_0243.ZIP-1631071399888.zip CAD_DWG_100_0243.ZIP-1631071399947.zip PDF data sheet-1631071399890.pdf CAD_STP_100_0243.ZIP-1631071399886.zip CAD_DXF_100_0243.ZIP-1631071399921.zip

Manufacturer warranty
