IFC238 ifm Electronic Electronic Components
Part#:IFC238
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

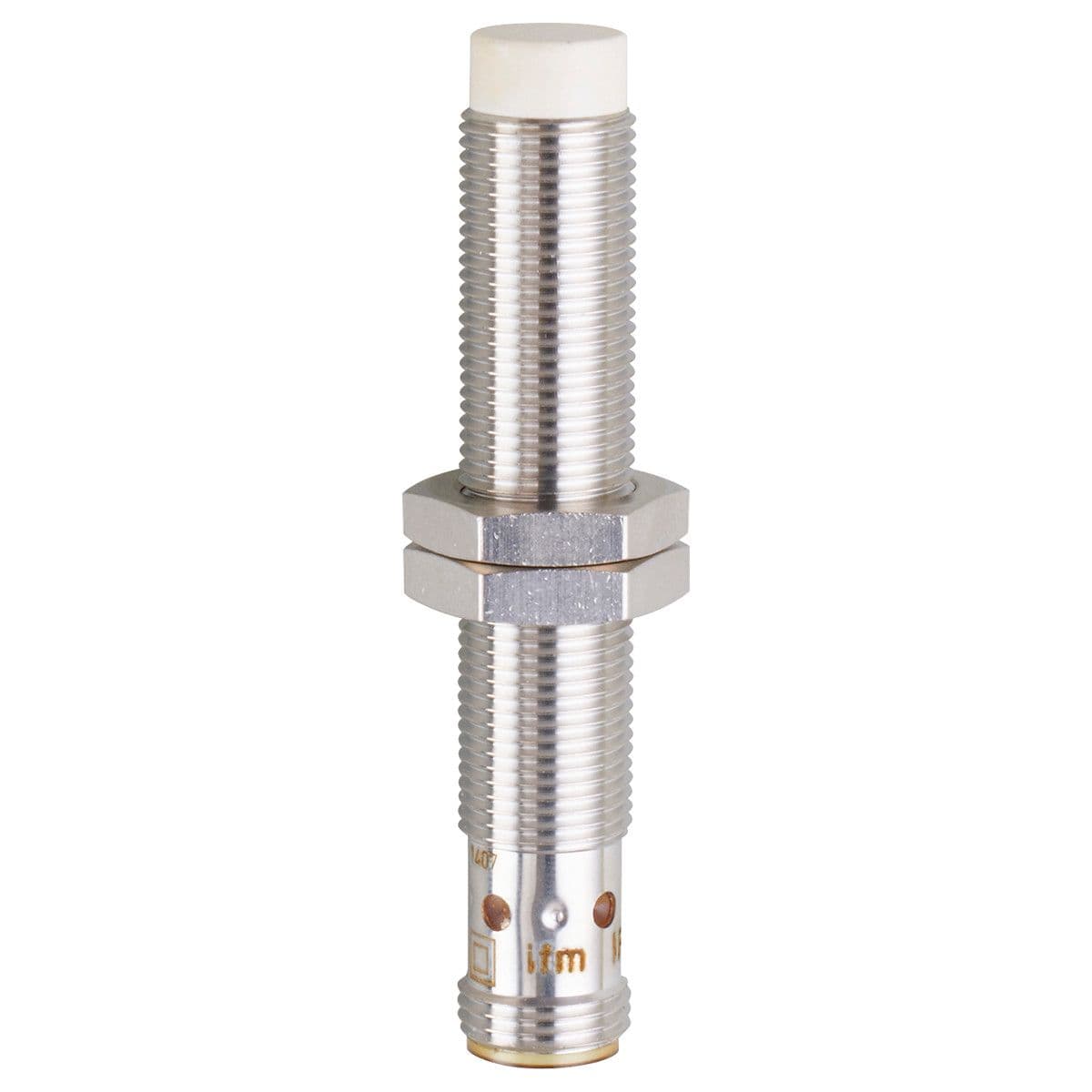

Inductive sensor, For use in machine tools and metalworking, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 7, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 70, System: gold-plated contacts; Increased sensing range, A
Product Details
- Protection class II
- Housing Threaded type
- Permanent current rating of switching output DC [mA] 100
- Operating voltage [V] 10...30 DC
- Output function normally open
- Current consumption [mA] < 10
- Switching frequency DC [Hz] 700
- Dimensions [mm] M12 x 1 / L = 70
- Max. voltage drop switching output DC [V] 2.5
- Sensing range [mm] 7
- Short-circuit protection yes
- Application Oils and coolants
- System gold-plated contacts; Increased sensing range
- Reverse polarity protection yes
- Electrical design PNP
- Overload protection yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
