IFC259 ifm Electronic Electronic Components

Name: IFC259
Brand: ifm Electronic

Part#:IFC259

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

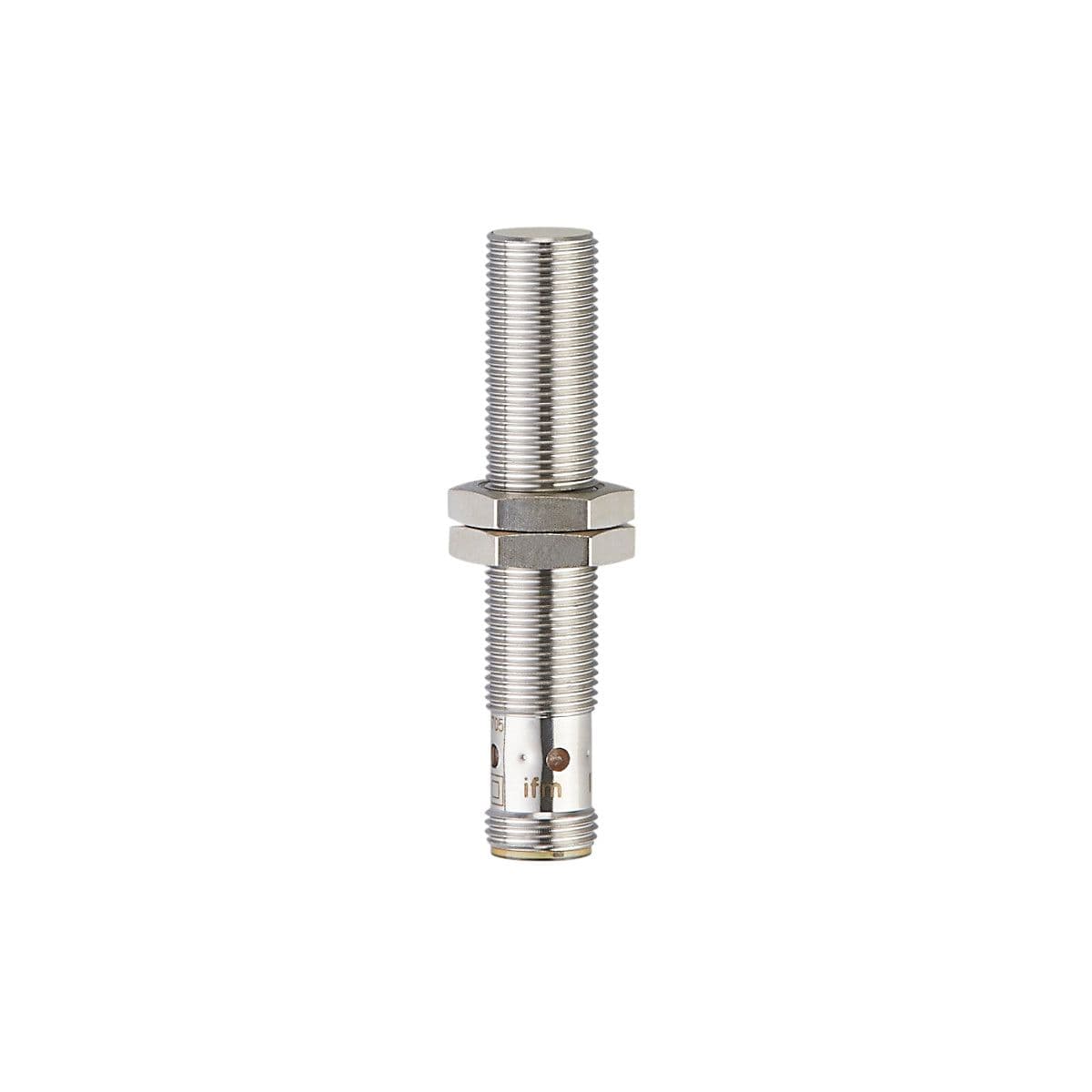

Inductive sensor, Electrical design: PNP, Output function: normally open, Sensing range [mm]: 3, Housing: Threaded type, Dimensions [mm]: M12 x 1 / L = 65, System: gold-plated contacts; correction factor = 1; Magnetic-field immune, Application: Oils and c

Product Details

Magnetic-field immune
yes
Protection class
II
Application
Oils and coolants
Reverse polarity protection
yes
Max. voltage drop switching output DC [V]
2.5
Operating voltage [V]
10...30 DC
Sensing range [mm]
3
Short-circuit protection
yes
Housing
Threaded type
Current consumption [mA]
< 20
System
gold-plated contacts; correction factor = 1; Magnetic-field immune
Switching frequency DC [Hz]
2000
Max. electromagnetic field immunity [mT]
300
Permanent current rating of switching output DC [mA]
100
Electrical design
PNP
Output function
normally open
Overload protection
yes
Dimensions [mm]
M12 x 1 / L = 65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

IFC259 Related Documents

CAD_SAT_100_0834.ZIP-1631071652723.zip CAD_DWG_100_0834.ZIP-1631071652700.zip PDF data sheet-1631071652705.pdf CAD_DXF_100_0834.ZIP-1631071652716.zip CAD_STP_100_0834.ZIP-1631071652713.zip
