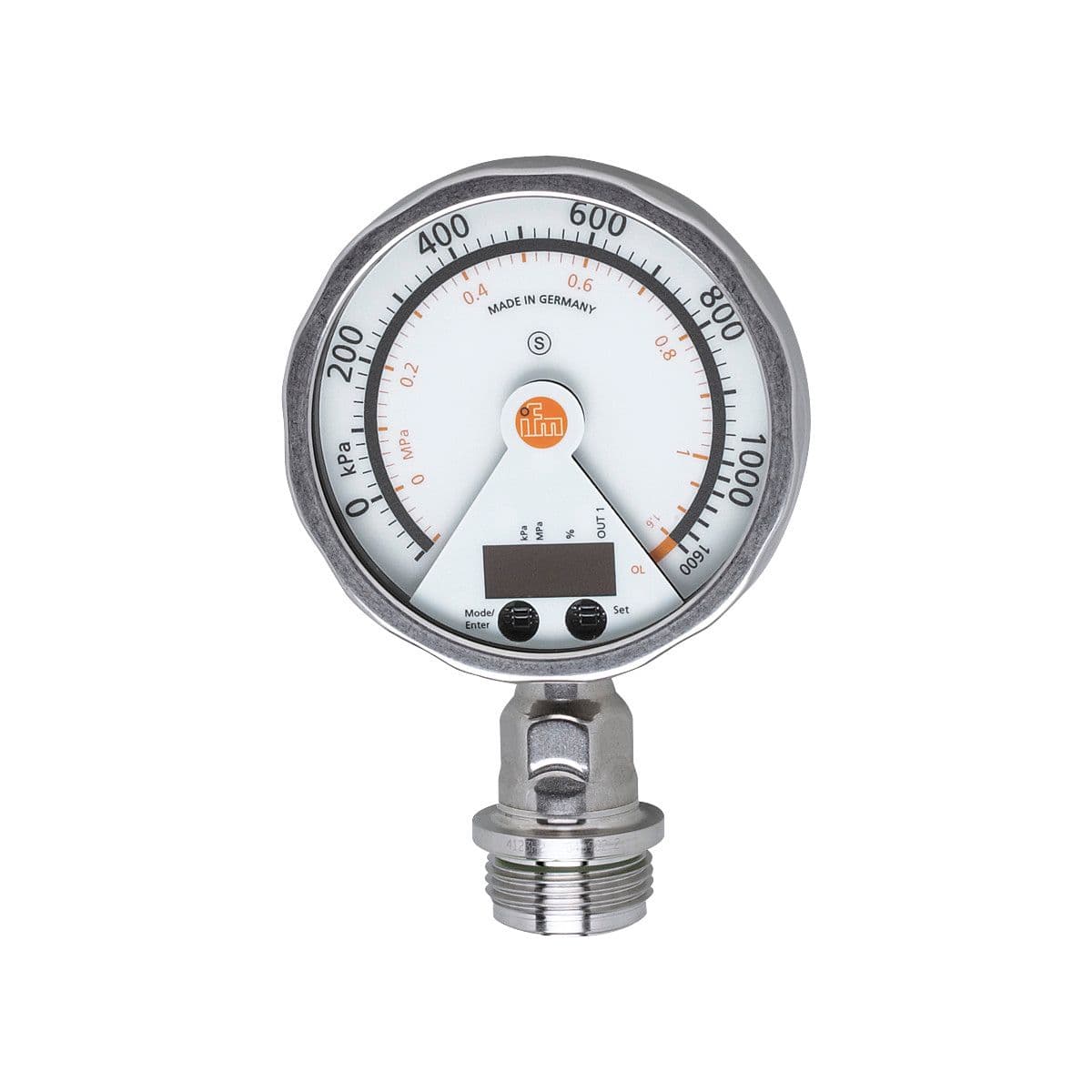

PG2734 ifm Electronic Electronic Components

Product Details

• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Power-on delay time [s]
  6
• Max. voltage drop switching output DC [V]
  2
• Application
  flush mountable for the food and beverage industry
• Operating voltage [V]
  18...32 DC
• Number of analog outputs
  1
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Current consumption [mA]
  < 70; (24 V)
• Number of digital outputs
  1
• Type of short-circuit protection
  yes (non-latching)
• System
  gold-plated contacts
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Total number of outputs
  2
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Process connection
  threaded connection G 1 external thread Aseptoflex Vario
• No dead space
  yes
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Analog current output [mA]
  4...20, invertible; (scalable)
• Min. bursting pressure [kPa]
  15000
• Reverse polarity protection
  yes
Output signal
switching signal; analog signal; (configurable)
Permanent current rating of switching output DC [mA]
250
Pressure rating [kPa]
5000
MAWP (for applications according to CRN) [bar]
50
Output function
normally open / closed; (configurable)
Overload protection
yes
Measuring range
-100...1000 kPa -0.1...1 MPa
Protection class
III
Electrical design
PNP/NPN
Short-circuit protection
yes
Type of pressure
relative pressure; vacuum
Integrated watchdog
yes
Switching frequency DC [Hz]
50
