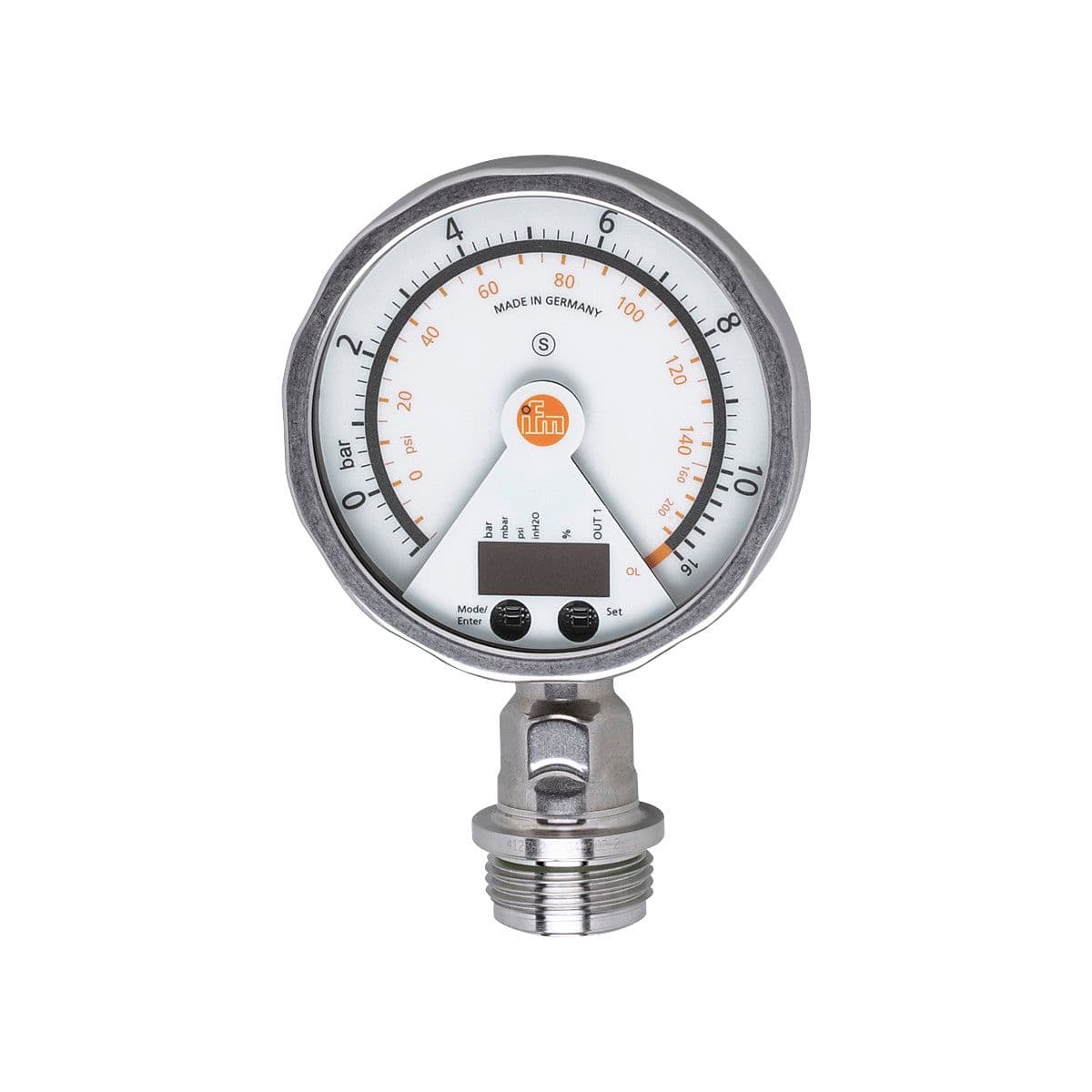

PG2794 ifm Electronic Electronic Components

Product Details

• Overload protection
  yes
• Type of short-circuit protection
  yes (non-latching)
• Analog current output [mA]
  4...20, invertible; (scalable)
• Short-circuit protection
  yes
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Max. voltage drop switching output DC [V]
  2
• Number of analog outputs
  1
• Protection class
  III
• Measuring range
  -1...10 bar -14.5...145 psi
• Switching frequency DC [Hz]
  50
• Permanent current rating of switching output DC [mA]
  250
• Output function
  normally open / closed; (configurable)
• Total number of outputs
  2
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Integrated watchdog
  yes
• Number of digital outputs
  1
• Electrical design
  PNP/NPN
• Power-on delay time [s]
  6
• Reverse polarity protection
  yes
• Min. insulation resistance [MΩ]
  100; (500 V DC)
Operating voltage [V]
18...32 DC
MAWP (for applications according to CRN) [bar]
50
Current consumption [mA]
< 70; (24 V)
No dead space
yes
Type of pressure
relative pressure; vacuum
Output signal
switching signal; analog signal; (configurable)
Application
flush mountable for the food and beverage industry
Media
viscous media and liquids with suspended particles; liquids and gases
Min. bursting pressure
150 bar 2175 psi
Process connection
threaded connection G 1 external thread Aseptoflex Vario
Pressure rating
50 bar 725 psi
Medium temperature [°C]
-25...125; (145 max. 1h)
System
gold-plated contacts
