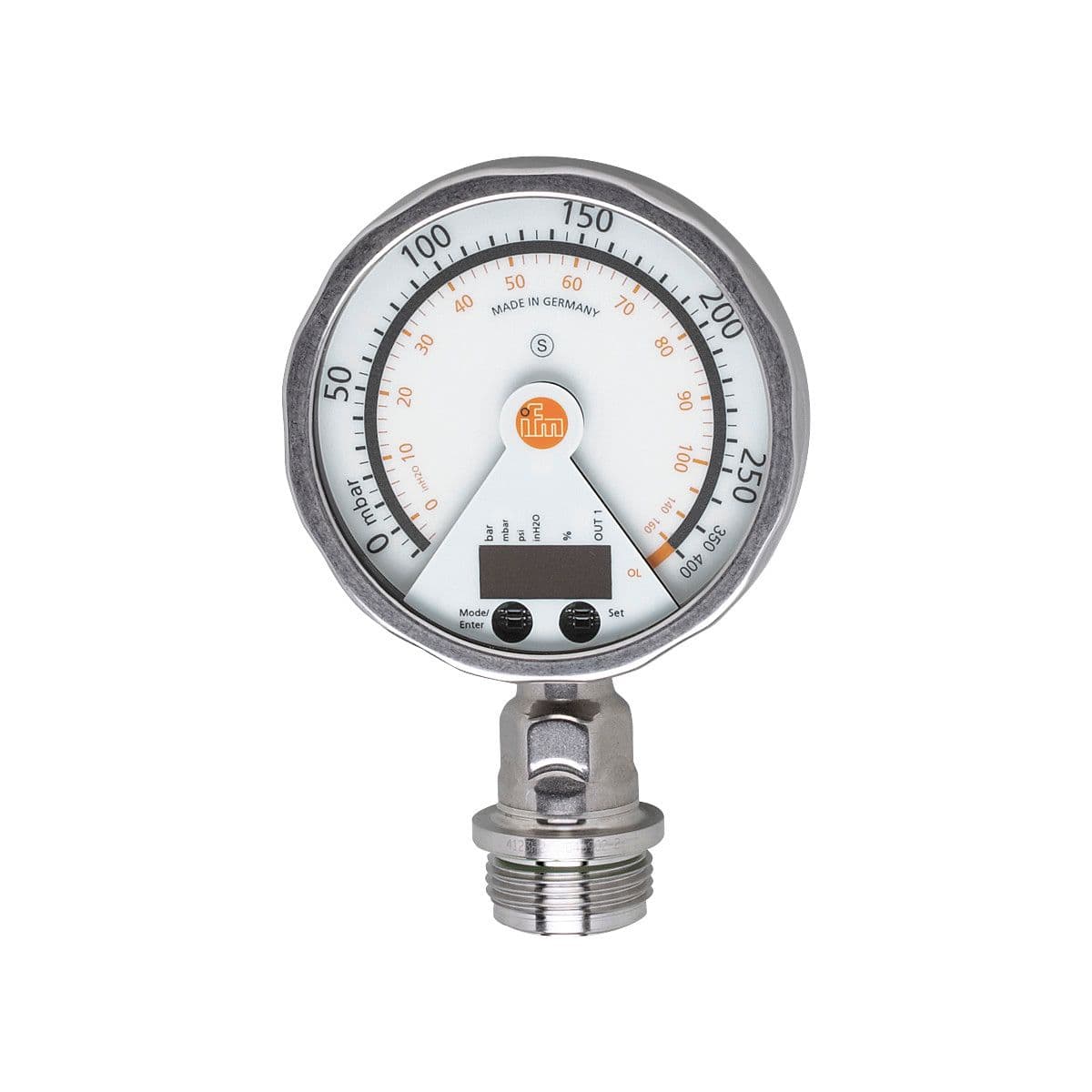

PG2798 ifm Electronic Electronic Components

Product Details

• No dead space
  yes
• Max. voltage drop switching output DC [V]
  2
• Number of digital outputs
  1
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Pressure rating
  6000 mbar 2400 inH2O
• Protection class
  III
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Application
  flush mountable for the food and beverage industry
• MAWP (for applications according to CRN) [bar]
  10
• Measuring range
  -0.0124...0.25 bar -12.4...250 mbar -5...100.4 inH2O
• Analog current output [mA]
  4...20, invertible; (scalable)
• Process connection
  threaded connection G 1 external thread Aseptoflex Vario
• Reverse polarity protection
  yes
• Permanent current rating of switching output DC [mA]
  250
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Integrated watchdog
  yes
• Number of analog outputs
  1
• Power-on delay time [s]
  6
• Overload protection
  yes
• Total number of outputs
  2
Output function
normally open / closed; (configurable)
Output signal
switching signal; analog signal; (configurable)
Short-circuit protection
yes
Min. bursting pressure
30000 mbar 12043 inH2O
Operating voltage [V]
18...32 DC
Current consumption [mA]
< 70; (24 V)
Electrical design
PNP/NPN
System
gold-plated contacts
Type of pressure
relative pressure
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Type of short-circuit protection
yes (non-latching)
Min. insulation resistance [MΩ]
100; (500 V DC)
Switching frequency DC [Hz]
50
