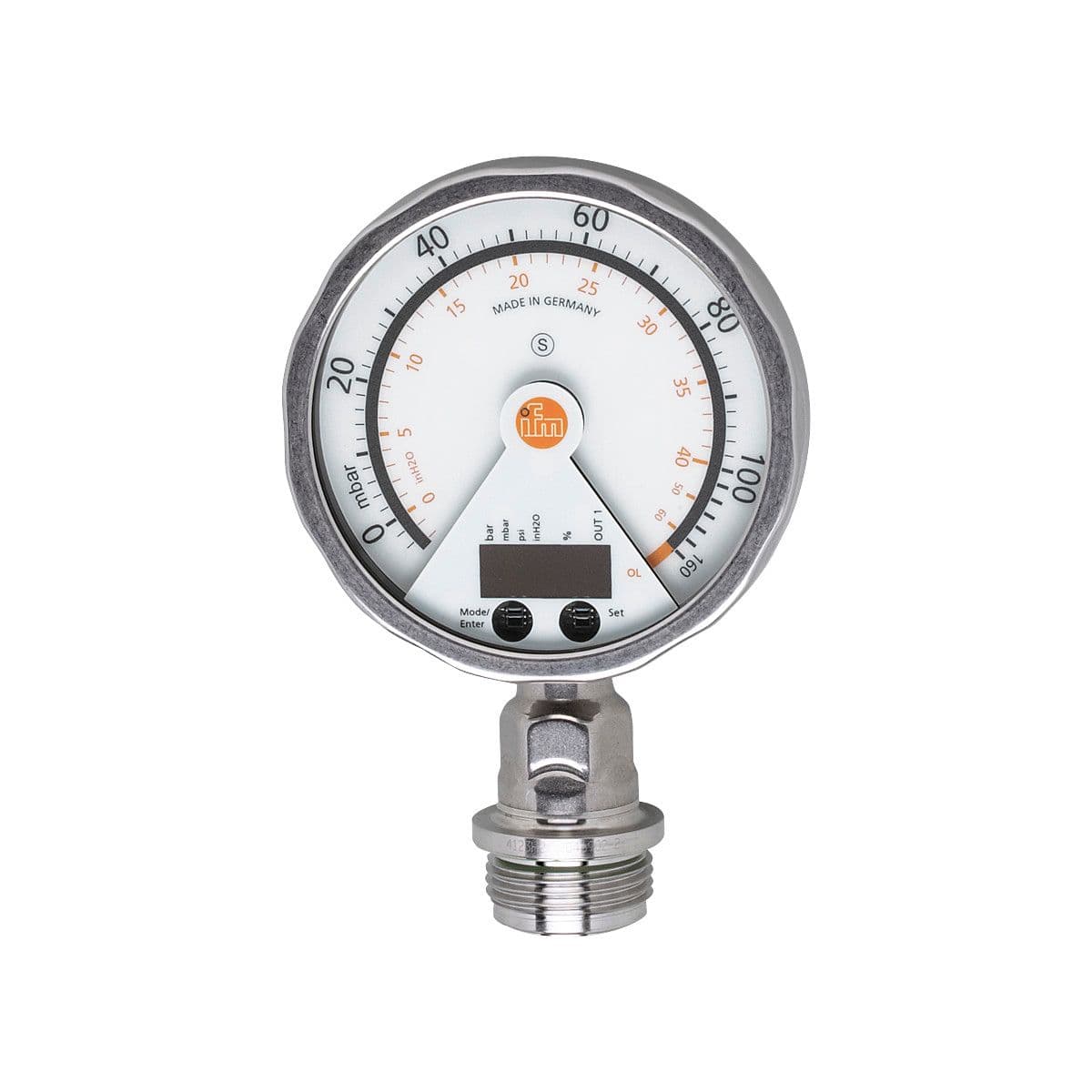

PG2789 ifm Electronic Electronic Components

Product Details

• Min. bursting pressure
  30000 mbar 12043 inH2O
• No dead space
  yes
• Integrated watchdog
  yes
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Protection class
  III
• Total number of outputs
  2
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Current consumption [mA]
  < 70; (24 V)
• Max. voltage drop switching output DC [V]
  2
• Output signal
  switching signal; analog signal; (configurable)
• Number of analog outputs
  1
• Power-on delay time [s]
  6
• Application
  flush mountable for the food and beverage industry
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Reverse polarity protection
  yes
• Process connection
  threaded connection G 1 external thread Aseptoflex Vario
• Pressure rating
  4000 mbar 1605 inH2O
• Type of pressure
  relative pressure
• Electrical design
  PNP/NPN
• Short-circuit protection
  yes
System
gold-plated contacts
Min. insulation resistance [MΩ]
100; (500 V DC)
Number of digital outputs
1
Overload protection
yes
Measuring range
-0.005...0.1 bar -5...100 mbar -2...40.15 inH2O
MAWP (for applications according to CRN) [bar]
4
Analog current output [mA]
4...20, invertible; (scalable)
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Type of short-circuit protection
yes (non-latching)
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
50
Operating voltage [V]
18...32 DC
Output function
normally open / closed; (configurable)
