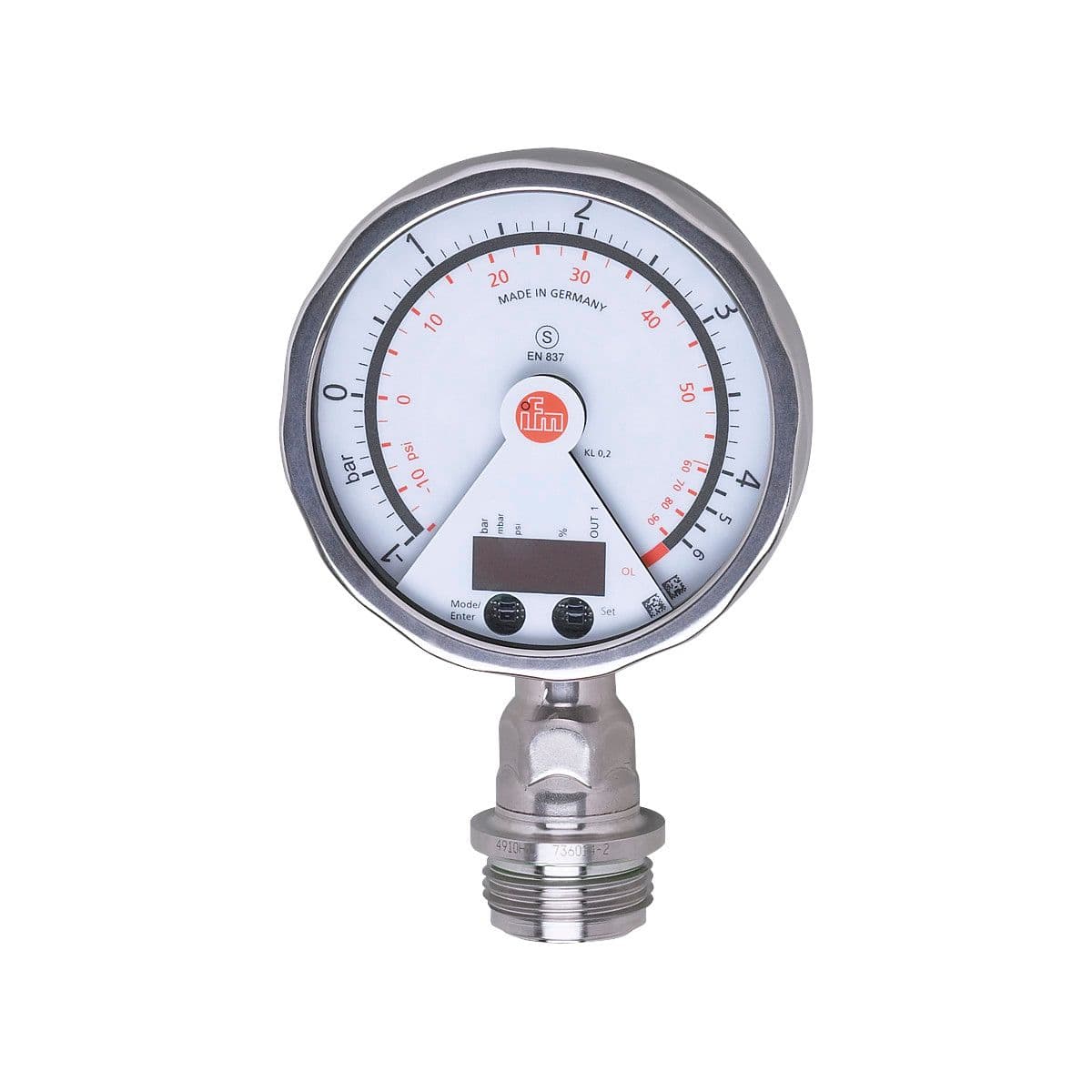

PG2795 ifm Electronic Electronic Components

Product Details

• Medium temperature [°C]
  -25...125; (145 max. 1h)
• No dead space
  yes
• Output function
  normally open / closed; (configurable)
• Overload protection
  yes
• Reverse polarity protection
  yes
• Analog current output [mA]
  4...20, invertible; (scalable)
• Min. bursting pressure
  100 bar 1450 psi
• Process connection
  threaded connection G 1 external thread Aseptoflex Vario
• Measuring range
  -1...4 bar -14.5...58 psi
• Type of pressure
  relative pressure; vacuum
• Permanent current rating of switching output DC [mA]
  250
• Operating voltage [V]
  18...32 DC
• Integrated watchdog
  yes
• Switching frequency DC [Hz]
  50
• Total number of outputs
  2
• Number of analog outputs
  1
• Pressure rating
  30 bar 435 psi
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Media
  viscous media and liquids with suspended particles; liquids and gases
• MAWP (for applications according to CRN) [bar]
  30
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Max. load [Ω]
(Ub - 10 V) / 20 mA
Application
flush mountable for the food and beverage industry
Current consumption [mA]
< 70; (24 V)
Electrical design
PNP/NPN
Protection class
III
Output signal
switching signal; analog signal; (configurable)
Number of digital outputs
1
Type of short-circuit protection
yes (non-latching)
System
gold-plated contacts
Power-on delay time [s]
6
Max. voltage drop switching output DC [V]
2
Short-circuit protection
yes
