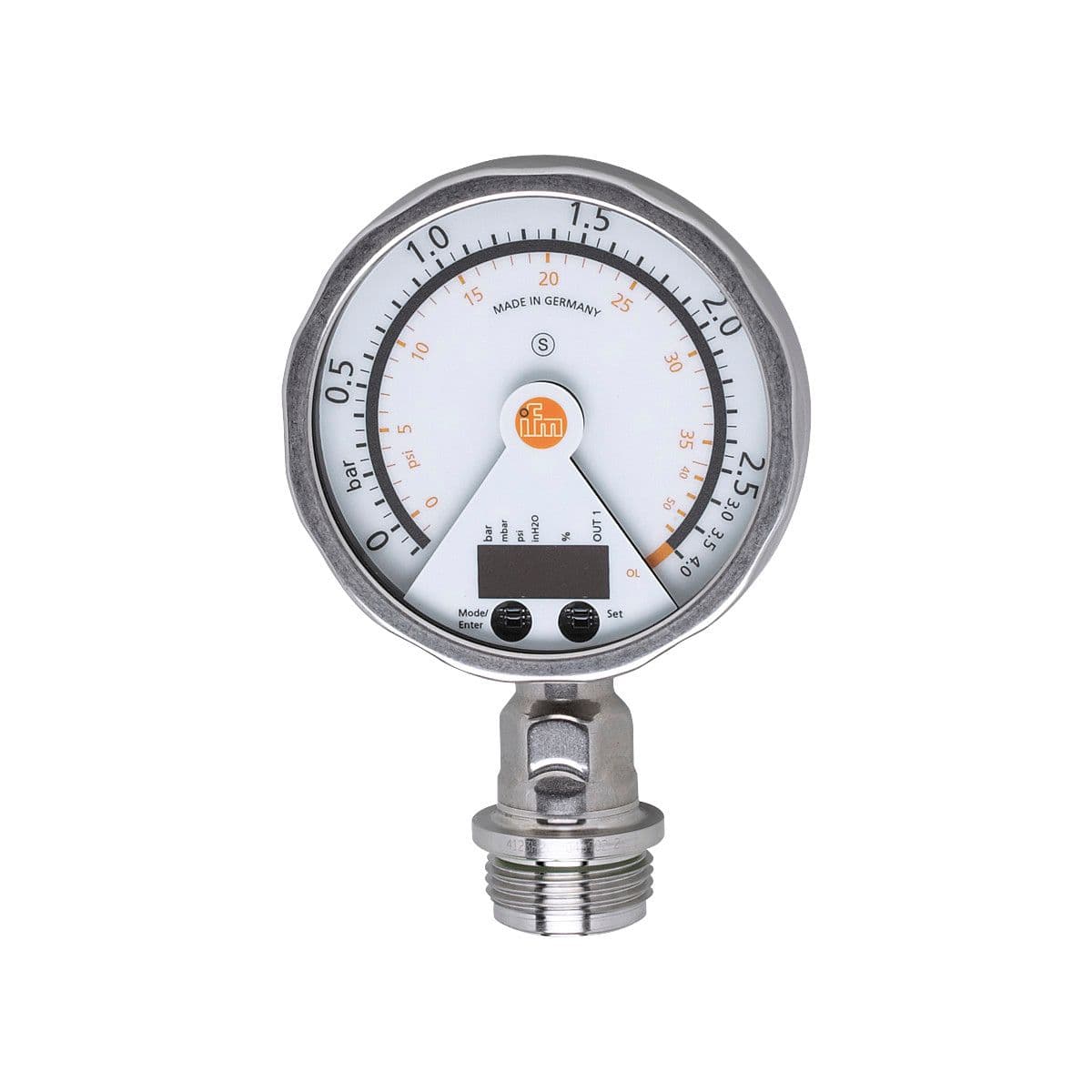

PG2796 ifm Electronic Electronic Components

Product Details

• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Process connection
  threaded connection G 1 external thread Aseptoflex Vario
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Application
  flush mountable for the food and beverage industry
• Min. bursting pressure
  50 bar 725 psi
• System
  gold-plated contacts
• No dead space
  yes
• Measuring range
  -0.124...2.5 bar -124...2500 mbar -1.8...36.27 psi
• Type of pressure
  relative pressure
• Pressure rating
  20 bar 290 psi
• Operating voltage [V]
  18...32 DC
• MAWP (for applications according to CRN) [bar]
  20
• Output signal
  switching signal; analog signal; (configurable)
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Permanent current rating of switching output DC [mA]
  250
• Overload protection
  yes
• Current consumption [mA]
  < 70; (24 V)
• Output function
  normally open / closed; (configurable)
• Protection class
  III
• Integrated watchdog
  yes
Max. voltage drop switching output DC [V]
2
Reverse polarity protection
yes
Analog current output [mA]
4...20, invertible; (scalable)
Power-on delay time [s]
6
Max. load [Ω]
(Ub - 10 V) / 20 mA
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Switching frequency DC [Hz]
50
Total number of outputs
2
Number of analog outputs
1
Number of digital outputs
1
Type of short-circuit protection
yes (non-latching)
Electrical design
PNP/NPN
Short-circuit protection
yes
