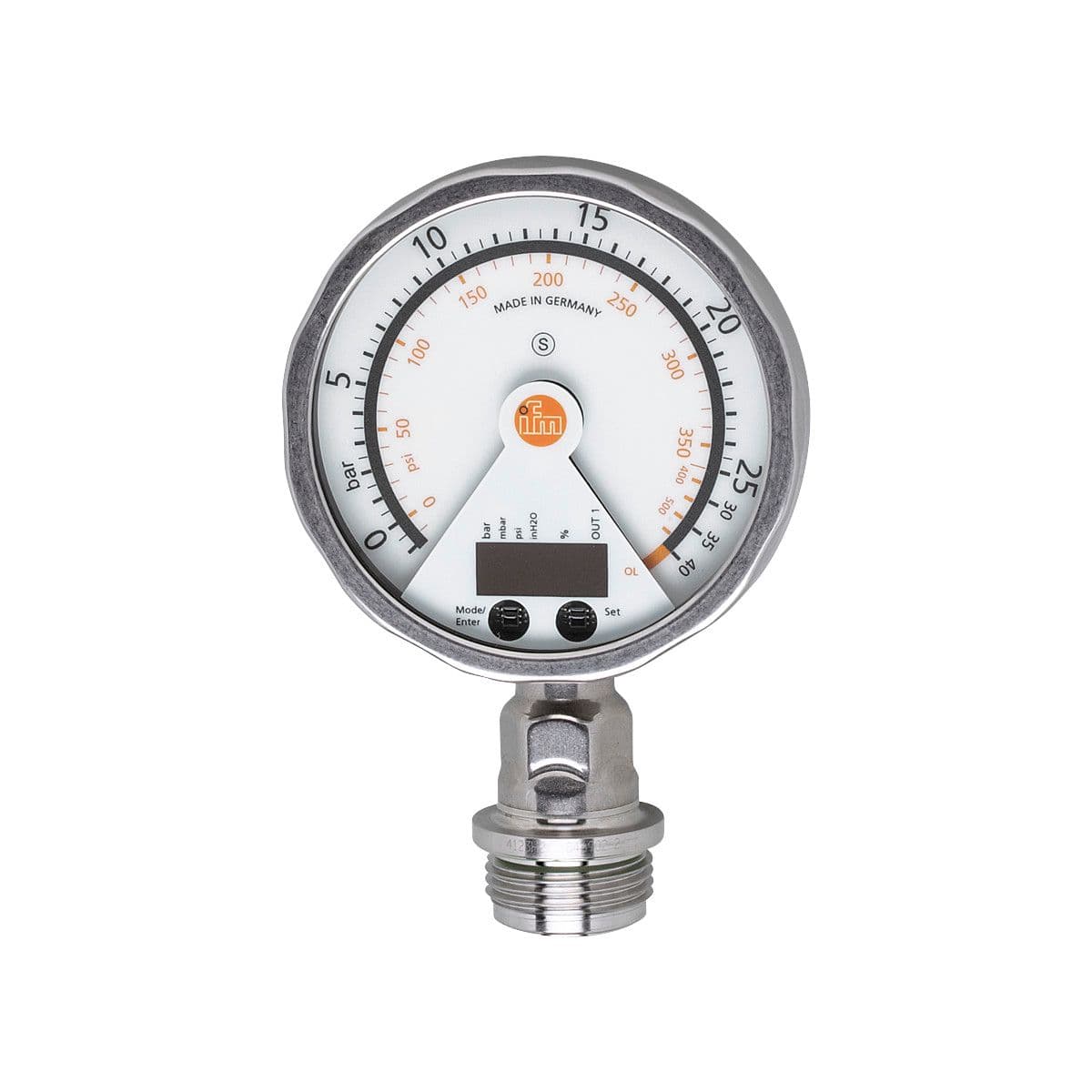

PG2793 ifm Electronic Electronic Components

Product Details

• Medium temperature [°C]
  -25...125; (145 max. 1h)
• MAWP (for applications according to CRN) [bar]
  60
• Number of digital outputs
  1
• Analog current output [mA]
  4...20, invertible; (scalable)
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Pressure rating
  100 bar 1450 psi
• Protection class
  III
• Output function
  normally open / closed; (configurable)
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Total number of outputs
  2
• System
  gold-plated contacts
• Measuring range
  -1...25 bar -14.4...362.7 psi
• Type of pressure
  relative pressure; vacuum
• Max. voltage drop switching output DC [V]
  2
• Short-circuit protection
  yes
• Min. bursting pressure
  350 bar 5070 psi
• Current consumption [mA]
  < 70; (24 V)
• Integrated watchdog
  yes
• Type of short-circuit protection
  yes (non-latching)
• Switching frequency DC [Hz]
  50
Media
viscous media and liquids with suspended particles; liquids and gases
Reverse polarity protection
yes
Electrical design
PNP/NPN
Process connection
threaded connection G 1 external thread Aseptoflex Vario
No dead space
yes
Power-on delay time [s]
6
Number of analog outputs
1
Application
flush mountable for the food and beverage industry
Operating voltage [V]
18...32 DC
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Overload protection
yes
Output signal
switching signal; analog signal; (configurable)
Permanent current rating of switching output DC [mA]
250
