PG2889 ifm Electronic Electronic Components
Part#:PG2889
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

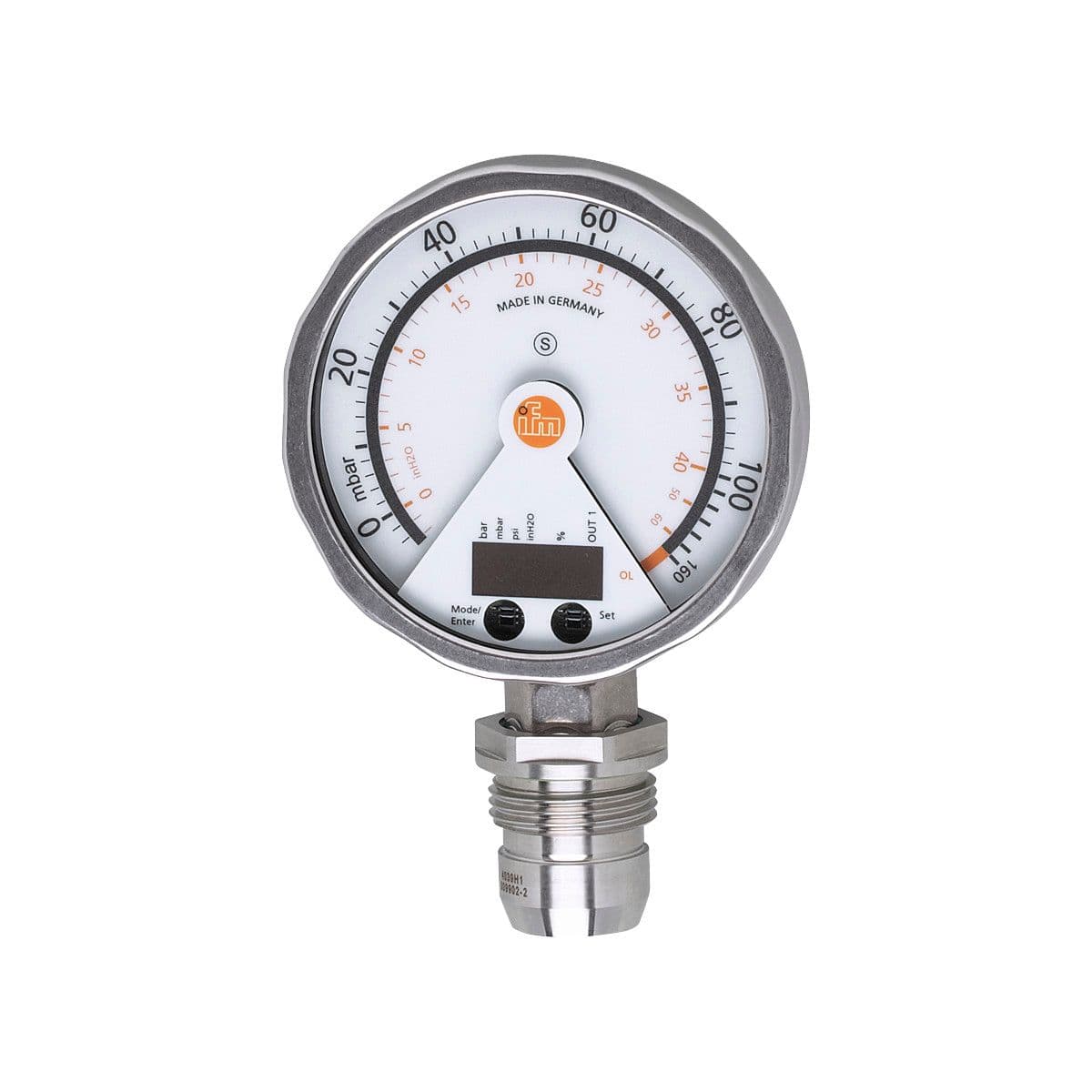

Flush pressure sensor with analog display, analog display, pressure switch and transmitter in one unit, Output signal: switching signal; analog signal; (configurable), Measuring range: -0.005...0.1 bar -5...100 mbar -2...40.15 inH2O, Process connection: t
Product Details
- Min. bursting pressure 30000 mbar 12043 inH2O
- Electrical design PNP/NPN
- Number of analog outputs 1
- Medium temperature [°C] -25...125; (145 max. 1h)
- Number of inputs and outputs Number of digital outputs: 1; Number of analog outputs: 1
- Max. voltage drop switching output DC [V] 2
- Measuring range -0.005...0.1 bar -5...100 mbar -2...40.15 inH2O
- MAWP (for applications according to CRN) [bar] 4
- Number of digital outputs 1
- Switching frequency DC [Hz] 50
- System gold-plated contacts
- Operating voltage [V] 18...32 DC
- Overload protection yes
- Type of pressure relative pressure
- Output signal switching signal; analog signal; (configurable)
- Output function normally open / closed; (configurable)
- Short-circuit protection yes
- Process connection threaded connection G 1 external thread sealing cone
- Protection class III
- Power-on delay time [s] 6
- Permanent current rating of switching output DC [mA] 250
- Media viscous media and liquids with suspended particles; liquids and gases
- Integrated watchdog yes
- Current consumption [mA] < 70; (24 V)
- Max. load [Ω] (Ub - 10 V) / 20 mA
- Pressure rating 4000 mbar 1605 inH2O
- Total number of outputs 2
- Type of short-circuit protection yes (non-latching)
- Application flush mountable for the food and beverage industry
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Reverse polarity protection yes
- Analog current output [mA] 4...20, invertible; (scalable)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
