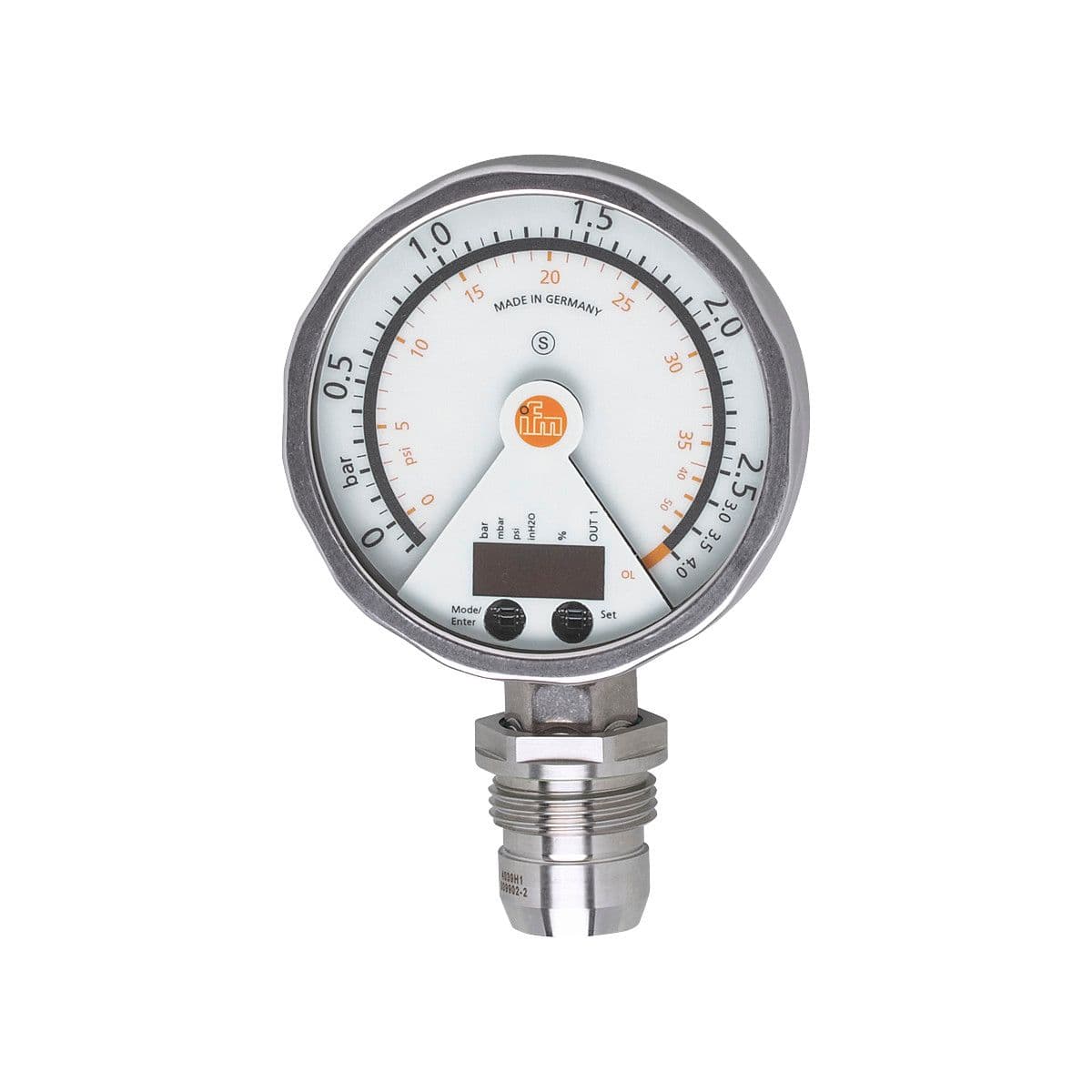

PG2896 ifm Electronic Electronic Components

Product Details

• Min. bursting pressure
  50 bar 725 psi
• Protection class
  III
• Electrical design
  PNP/NPN
• Short-circuit protection
  yes
• Analog current output [mA]
  4...20, invertible; (scalable)
• Operating voltage [V]
  18...32 DC
• Number of digital outputs
  1
• Measuring range
  -0.124...2.5 bar -124...2500 mbar -1.8...36.27 psi
• Current consumption [mA]
  < 70; (24 V)
• Output function
  normally open / closed; (configurable)
• Number of analog outputs
  1
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Permanent current rating of switching output DC [mA]
  250
• Process connection
  threaded connection G 1 external thread sealing cone
• Integrated watchdog
  yes
• MAWP (for applications according to CRN) [bar]
  20
• Max. voltage drop switching output DC [V]
  2
• Type of short-circuit protection
  yes (non-latching)
• Medium temperature [°C]
  -25...125; (145 max. 1h)
Type of pressure
relative pressure
Total number of outputs
2
Switching frequency DC [Hz]
50
Max. load [Ω]
(Ub - 10 V) / 20 mA
Application
flush mountable for the food and beverage industry
Pressure rating
20 bar 290 psi
Power-on delay time [s]
6
Overload protection
yes
System
gold-plated contacts
Reverse polarity protection
yes
Min. insulation resistance [MΩ]
100; (500 V DC)
Output signal
switching signal; analog signal; (configurable)
