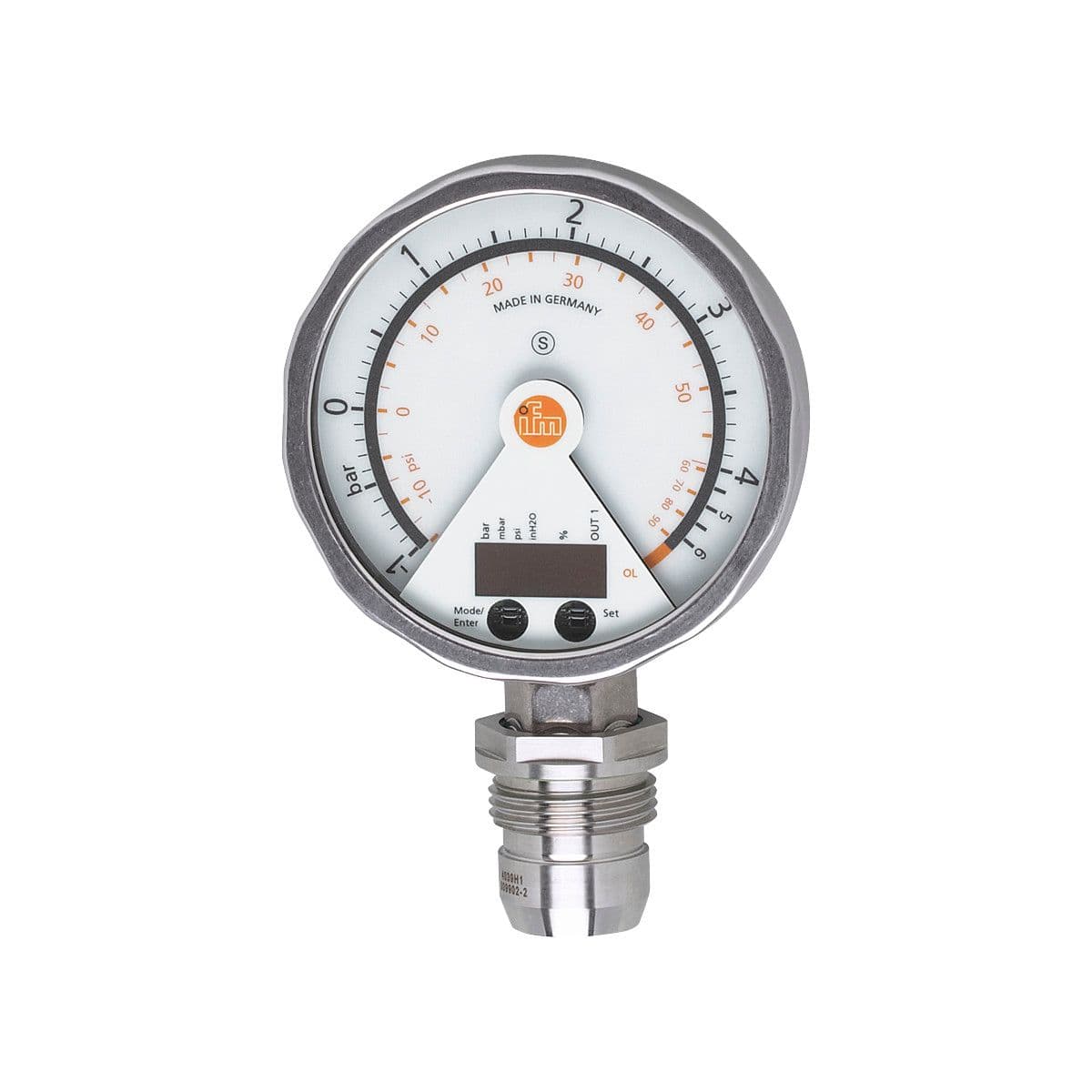

PG2895 ifm Electronic Electronic Components

Product Details

• Operating voltage [V]
  18...32 DC
• Output function
  normally open / closed; (configurable)
• System
  gold-plated contacts
• Power-on delay time [s]
  6
• Switching frequency DC [Hz]
  50
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Application
  flush mountable for the food and beverage industry
• Integrated watchdog
  yes
• Analog current output [mA]
  4...20, invertible; (scalable)
• Permanent current rating of switching output DC [mA]
  250
• Pressure rating
  30 bar 435 psi
• Protection class
  III
• Type of short-circuit protection
  yes (non-latching)
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Reverse polarity protection
  yes
• Max. voltage drop switching output DC [V]
  2
• Measuring range
  -1...4 bar -14.5...58 psi
• Current consumption [mA]
  < 70; (24 V)
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
• Overload protection
  yes
Number of digital outputs
1
Process connection
threaded connection G 1 external thread sealing cone
Min. insulation resistance [MΩ]
100; (500 V DC)
Type of pressure
relative pressure; vacuum
Min. bursting pressure
100 bar 1450 psi
Short-circuit protection
yes
Electrical design
PNP/NPN
Max. load [Ω]
(Ub - 10 V) / 20 mA
Total number of outputs
2
MAWP (for applications according to CRN) [bar]
30
Number of analog outputs
1
Output signal
switching signal; analog signal; (configurable)
