PG2894 ifm Electronic Electronic Components

Name: PG2894
Brand: ifm Electronic

Part#:PG2894

Manufacturer:ifm Electronic

Category:Electronic Components

Product Lifecycle:Active

Product description

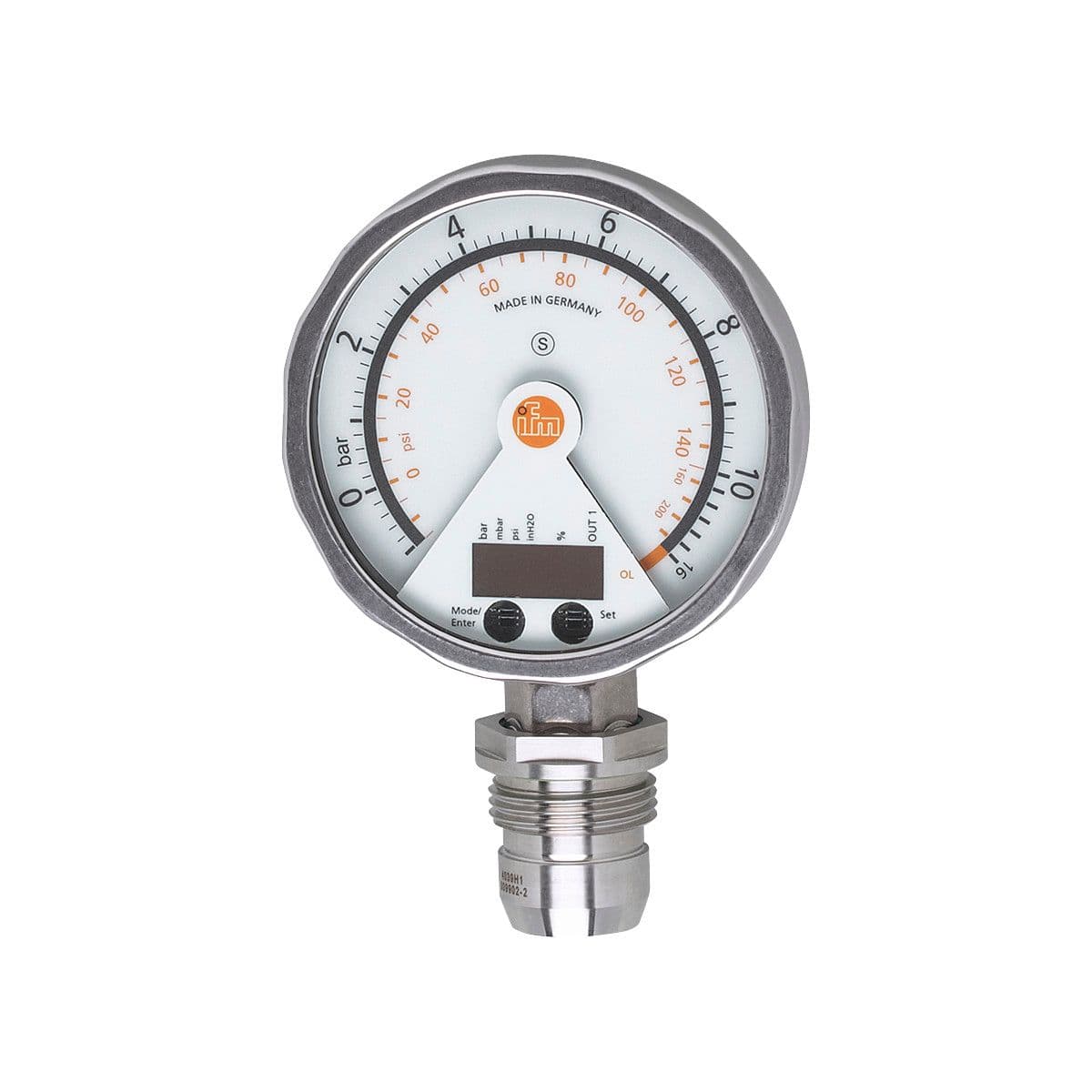

Flush pressure sensor with analog display, analog display, pressure switch and transmitter in one unit, Output signal: switching signal; analog signal; (configurable), Measuring range: -1...10 bar -14.5...145 psi, Process connection: threaded connection G

Product Details

Overload protection
yes
Number of analog outputs
1
Output function
normally open / closed; (configurable)
Protection class
III
Media
viscous media and liquids with suspended particles; liquids and gases
Max. load [Ω]
(Ub - 10 V) / 20 mA
Analog current output [mA]
4...20, invertible; (scalable)
Type of short-circuit protection
yes (non-latching)
Short-circuit protection
yes
Max. voltage drop switching output DC [V]
2
Switching frequency DC [Hz]
50
Permanent current rating of switching output DC [mA]
250
Number of digital outputs
1
Electrical design
PNP/NPN
Total number of outputs
2
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Integrated watchdog
yes
Power-on delay time [s]
6
Reverse polarity protection
yes
MAWP (for applications according to CRN) [bar]
50

Min. insulation resistance [MΩ]

100; (500 V DC)

Current consumption [mA]

< 70; (24 V)

Operating voltage [V]

18...32 DC

Type of pressure

relative pressure; vacuum

Pressure rating

50 bar 725 psi

Application

flush mountable for the food and beverage industry

Min. bursting pressure

150 bar 2175 psi

Medium temperature [°C]

-25...125; (145 max. 1h)

Measuring range

-1...10 bar -14.5...145 psi

System

gold-plated contacts

Process connection

threaded connection G 1 external thread sealing cone

Output signal

switching signal; analog signal; (configurable)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PG2894 Related Documents

CAD_SAT_500_0112.ZIP-1631072562582.zip CAD_STP_500_0112.ZIP-1631072562577.zip PDF data sheet-1631072562585.pdf CAD_DWG_500_0112.ZIP-1631072562581.zip CAD_DXF_500_0112.ZIP-1631072562579.zip
