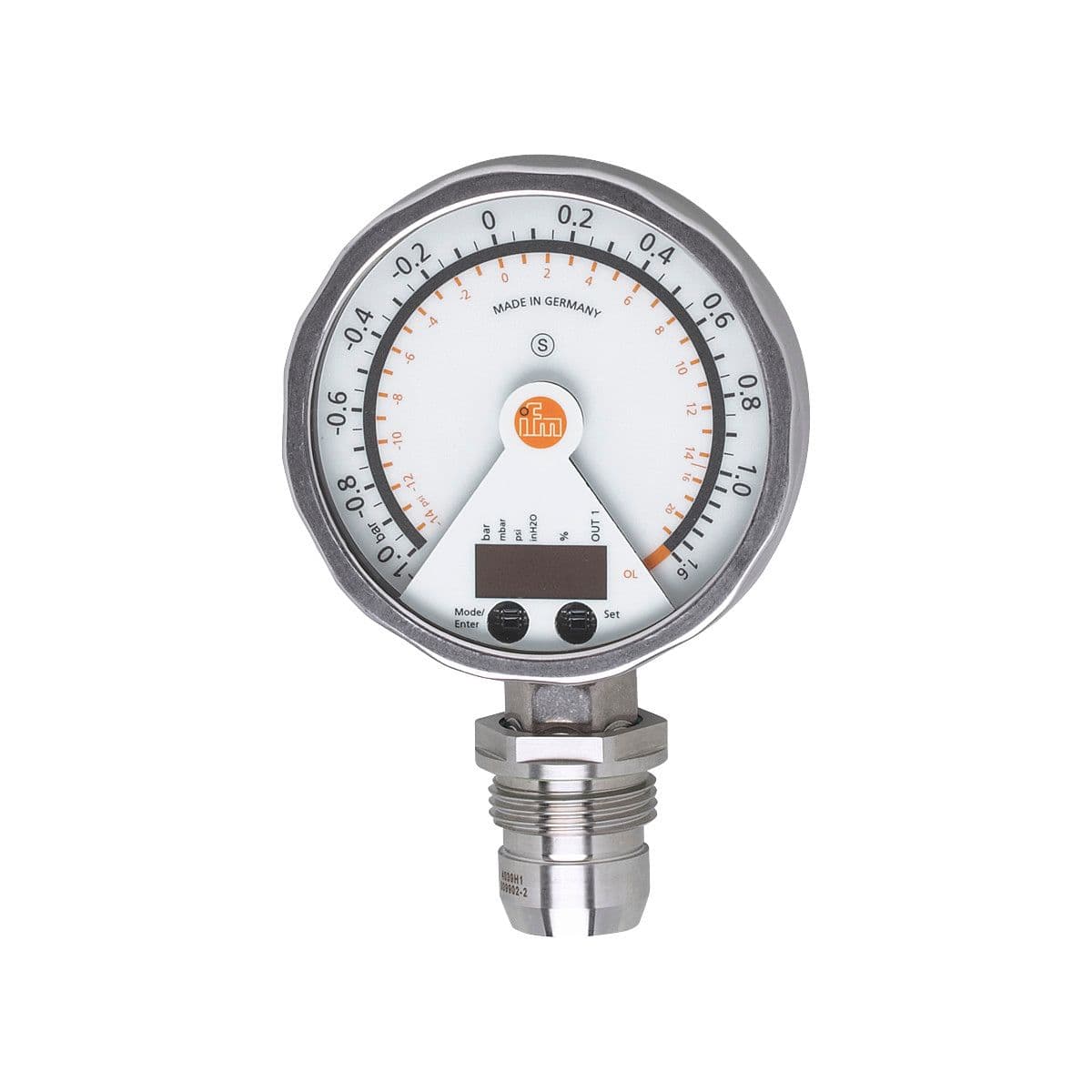

PG2899 ifm Electronic Electronic Components

Product Details

• Measuring range
  -1...1 bar -1000...1000 mbar -14.5...14.5 psi
• Protection class
  III
• Electrical design
  PNP/NPN
• System
  gold-plated contacts
• Reverse polarity protection
  yes
• Max. voltage drop switching output DC [V]
  2
• Min. bursting pressure
  30 bar 435 psi
• Operating voltage [V]
  18...32 DC
• Permanent current rating of switching output DC [mA]
  250
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Output signal
  switching signal; analog signal; (configurable)
• Integrated watchdog
  yes
• Output function
  normally open / closed; (configurable)
• Type of pressure
  relative pressure; vacuum
• Pressure rating
  10 bar 145 psi
• Current consumption [mA]
  < 70; (24 V)
• Total number of outputs
  2
• Analog current output [mA]
  4...20, invertible; (scalable)
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Process connection
  threaded connection G 1 external thread sealing cone
Application
flush mountable for the food and beverage industry
MAWP (for applications according to CRN) [bar]
10
Number of digital outputs
1
Short-circuit protection
yes
Media
viscous media and liquids with suspended particles; liquids and gases
Power-on delay time [s]
6
Switching frequency DC [Hz]
50
Type of short-circuit protection
yes (non-latching)
Min. insulation resistance [MΩ]
100; (500 V DC)
Number of analog outputs
1
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Overload protection
yes
