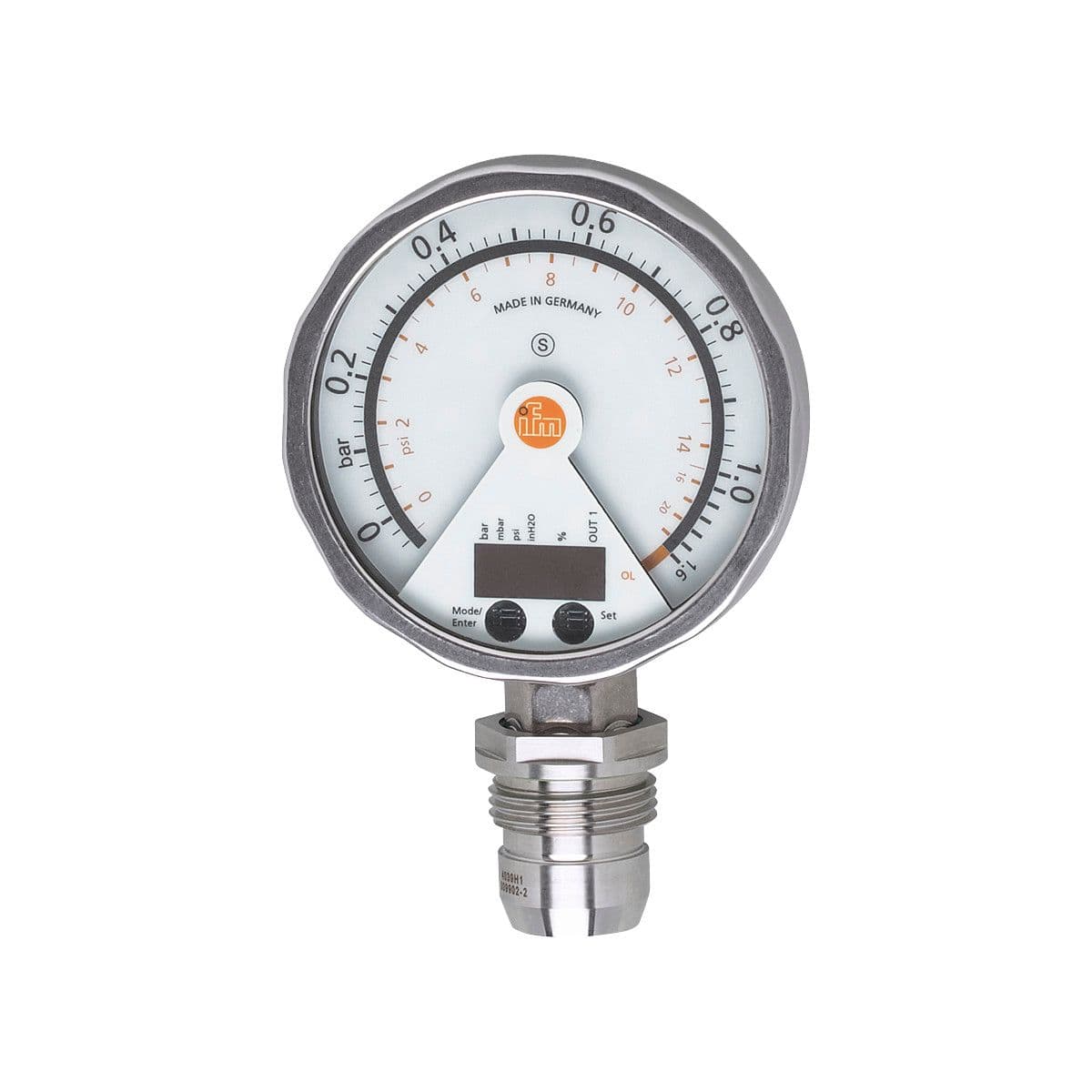

PG2897 ifm Electronic Electronic Components

Product Details

• Media
  viscous media and liquids with suspended particles; liquids and gases
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Switching frequency DC [Hz]
  50
• Overload protection
  yes
• Pressure rating
  10 bar 145 psi
• Power-on delay time [s]
  6
• Output function
  normally open / closed; (configurable)
• Short-circuit protection
  yes
• Operating voltage [V]
  18...32 DC
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• System
  gold-plated contacts
• Process connection
  threaded connection G 1 external thread sealing cone
• Electrical design
  PNP/NPN
• Integrated watchdog
  yes
• Type of short-circuit protection
  yes (non-latching)
• Measuring range
  -0.05...1 bar -50...1000 mbar -0.73...14.5 psi
• Protection class
  III
• Number of analog outputs
  1
• Max. voltage drop switching output DC [V]
  2
• Number of inputs and outputs
  Number of digital outputs: 1; Number of analog outputs: 1
Min. bursting pressure
30 bar 435 psi
Type of pressure
relative pressure
Reverse polarity protection
yes
Number of digital outputs
1
Output signal
switching signal; analog signal; (configurable)
Analog current output [mA]
4...20, invertible; (scalable)
Permanent current rating of switching output DC [mA]
250
Application
flush mountable for the food and beverage industry
Current consumption [mA]
< 70; (24 V)
Max. load [Ω]
(Ub - 10 V) / 20 mA
MAWP (for applications according to CRN) [bar]
10
Total number of outputs
2
