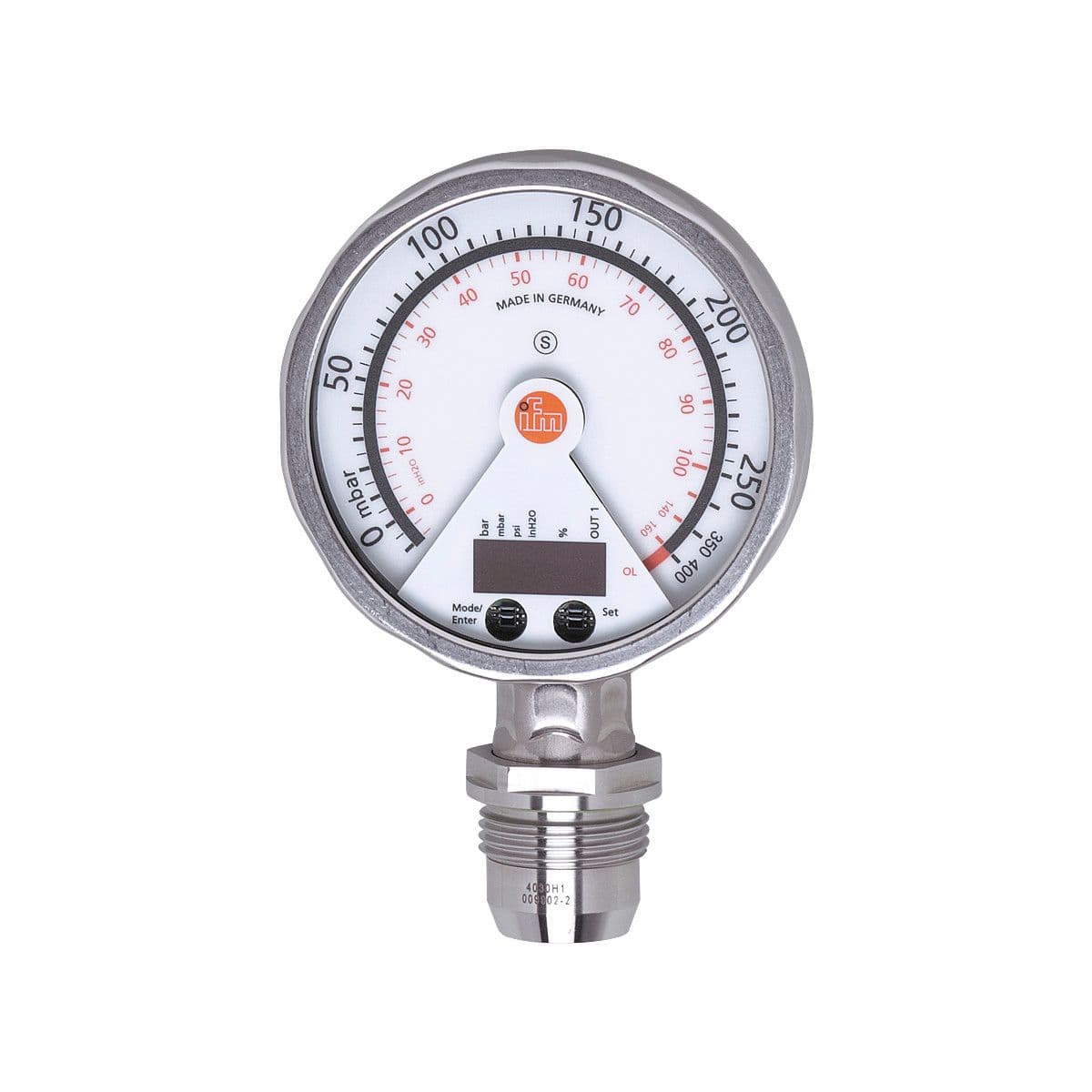

PG2898 ifm Electronic Electronic Components

Product Details

• Measuring range
  -0.0124...0.25 bar -12.4...250 mbar -5...100.4 inH2O
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Number of analog outputs
  1
• Process connection
  threaded connection G 1 external thread sealing cone
• Integrated watchdog
  yes
• Output signal
  switching signal; analog signal; (configurable)
• Permanent current rating of switching output DC [mA]
  250
• Min. bursting pressure
  30000 mbar 12043 inH2O
• Reverse polarity protection
  yes
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Type of pressure
  relative pressure
• System
  gold-plated contacts
• Power-on delay time [s]
  6
• Switching frequency DC [Hz]
  50
• Application
  flush mountable for the food and beverage industry
• MAWP (for applications according to CRN) [bar]
  10
• Max. voltage drop switching output DC [V]
  2
• Overload protection
  yes
• Current consumption [mA]
  < 70; (24 V)
• Media
  viscous media and liquids with suspended particles; liquids and gases
Electrical design
PNP/NPN
Short-circuit protection
yes
Medium temperature [°C]
-25...125; (145 max. 1h)
Total number of outputs
2
Number of digital outputs
1
Pressure rating
6000 mbar 2400 inH2O
Protection class
III
Output function
normally open / closed; (configurable)
Operating voltage [V]
18...32 DC
Number of inputs and outputs
Number of digital outputs: 1; Number of analog outputs: 1
Analog current output [mA]
4...20, invertible; (scalable)
Type of short-circuit protection
yes (non-latching)
