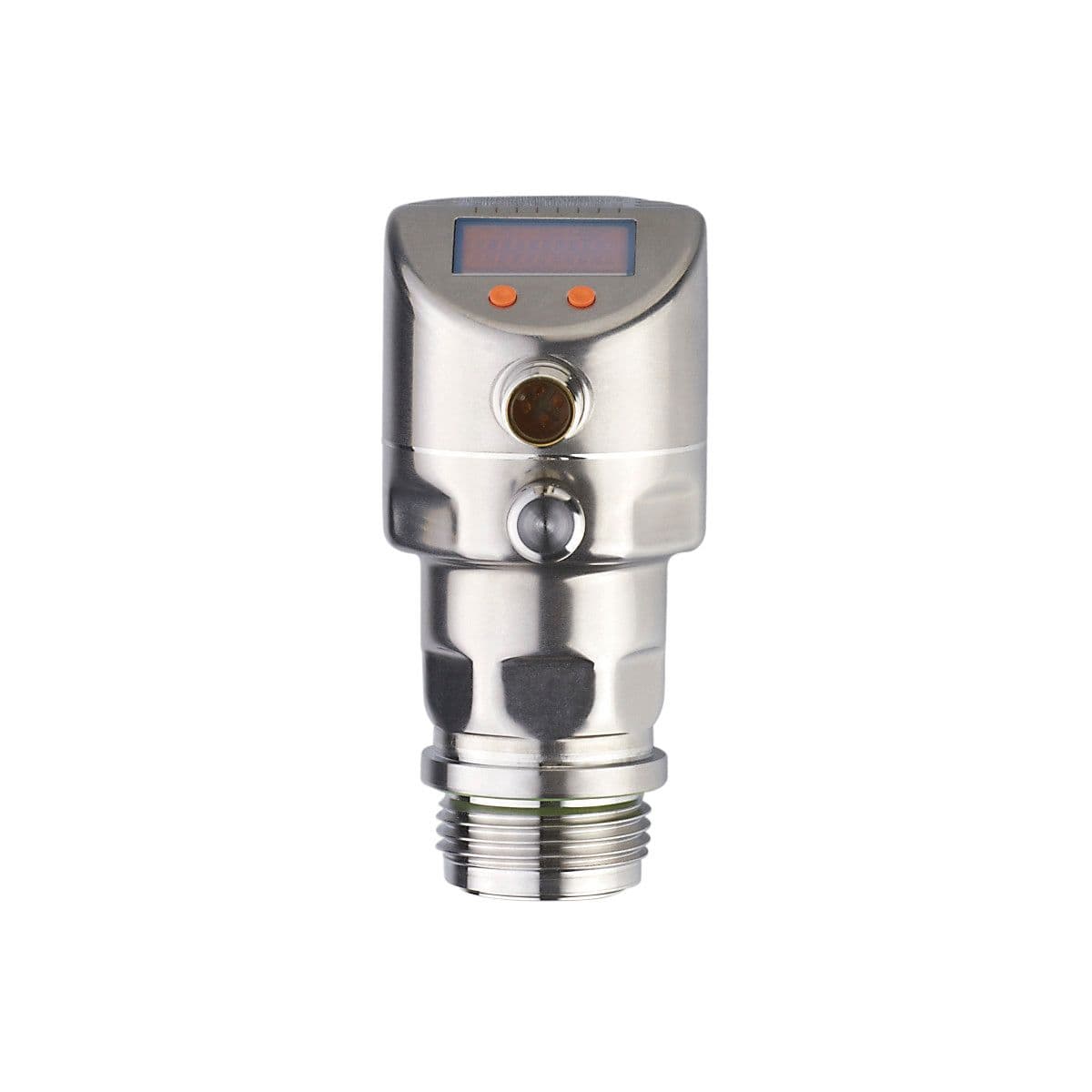

PI2714 ifm Electronic Electronic Components

Product Details

• Vacuum resistance [mbar]
  -1000
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Output function
  normally open / closed; (configurable)
• Current consumption [mA]
  < 45
• Operating voltage [V]
  18...32 DC
• Number of digital outputs
  2
• Measuring range
  -1...16 bar -14.6...232 psi -0.1...1.6 MPa
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Integrated watchdog
  yes
• Total number of outputs
  2
• Short-circuit protection
  yes
• Power-on delay time [s]
  0.5
• Number of analog outputs
  1
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• System
  gold-plated contacts
• Type of pressure
  relative pressure; vacuum
• Analog current output [mA]
  4...20, invertible; (scalable)
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Pressure rating
  75 bar 1085 psi 7.5 Mpa
• Reverse polarity protection
  yes
Switching frequency DC [Hz]
125
Type of short-circuit protection
yes (non-latching)
Application
flush mountable for the food and beverage industry
MAWP (for applications according to CRN) [bar]
60
Overload protection
yes
Protection class
III
No dead space
yes
Min. insulation resistance [MΩ]
100; (500 V DC)
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Electrical design
PNP/NPN
Min. bursting pressure
250 bar 3625 psi 25 MPa
Process connection
threaded connection G 1 external thread Aseptoflex Vario
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
250
