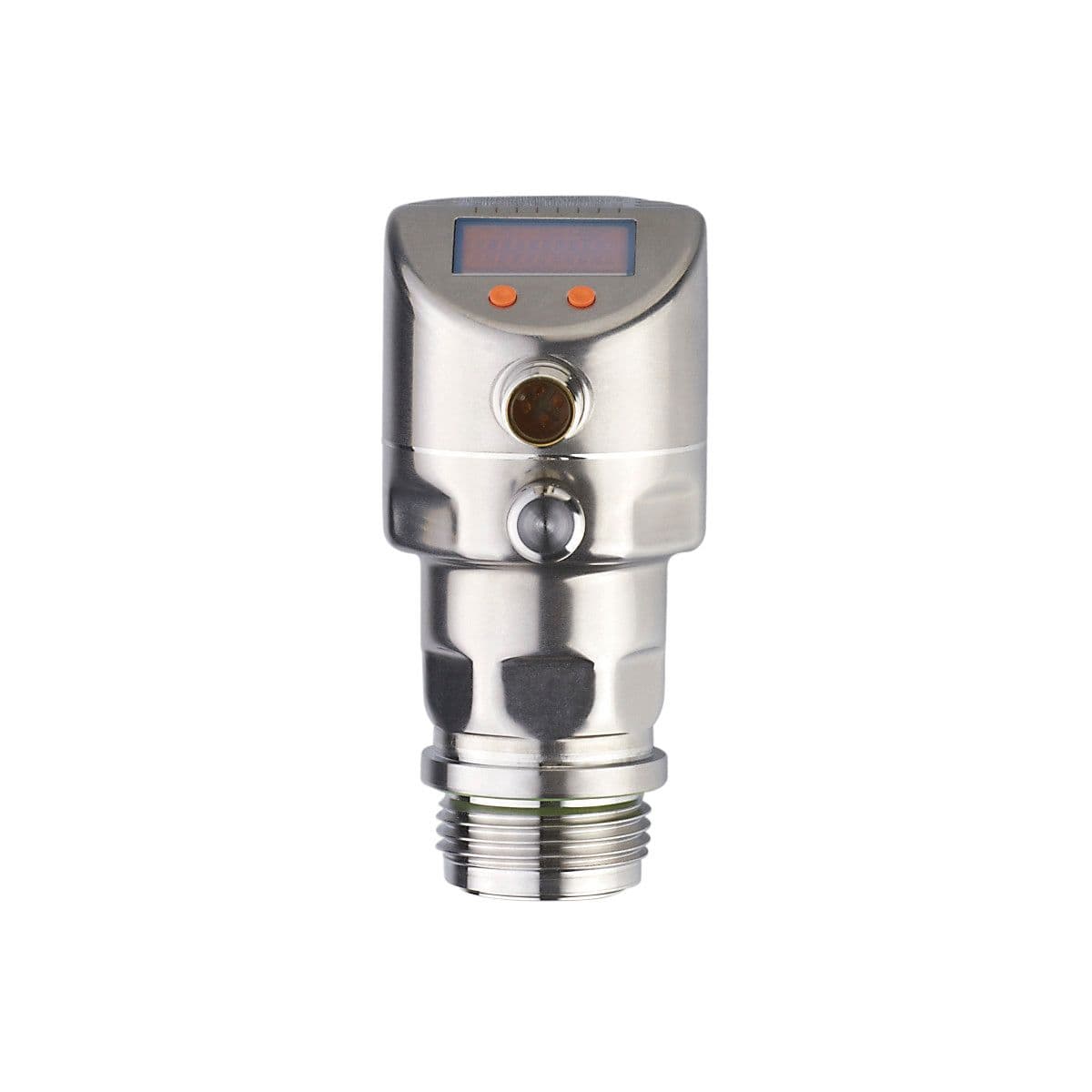

PI2793 ifm Electronic Electronic Components

Product Details

• Switching frequency DC [Hz]
  125
• Overload protection
  yes
• Permanent current rating of switching output DC [mA]
  250
• Analog current output [mA]
  4...20, invertible; (scalable)
• Output function
  normally open / closed; (configurable)
• Number of digital outputs
  2
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Operating voltage [V]
  18...32 DC
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Min. bursting pressure
  350 bar 5075 psi 35 MPa
• Max. voltage drop switching output DC [V]
  2
• Max. load [Ω]
  300
• Type of short-circuit protection
  yes (non-latching)
• Short-circuit protection
  yes
• Number of analog outputs
  1
• Electrical design
  PNP/NPN
• Total number of outputs
  2
• Power-on delay time [s]
  0.5
• Current consumption [mA]
  < 45
Integrated watchdog
yes
MAWP (for applications according to CRN) [bar]
60
Reverse polarity protection
yes
Protection class
III
Type of pressure
relative pressure; vacuum
Vacuum resistance [mbar]
-1000
No dead space
yes
Process connection
threaded connection G 1 external thread Aseptoflex Vario
Pressure rating
100 bar 1450 psi 10 Mpa
System
gold-plated contacts
Medium temperature [°C]
-25...125; (145 max. 1h)
Media
viscous media and liquids with suspended particles; liquids and gases
Application
flush mountable for the food and beverage industry
Measuring range
-1...25 bar -14.4...362.7 psi -0.1...2.5 MPa
