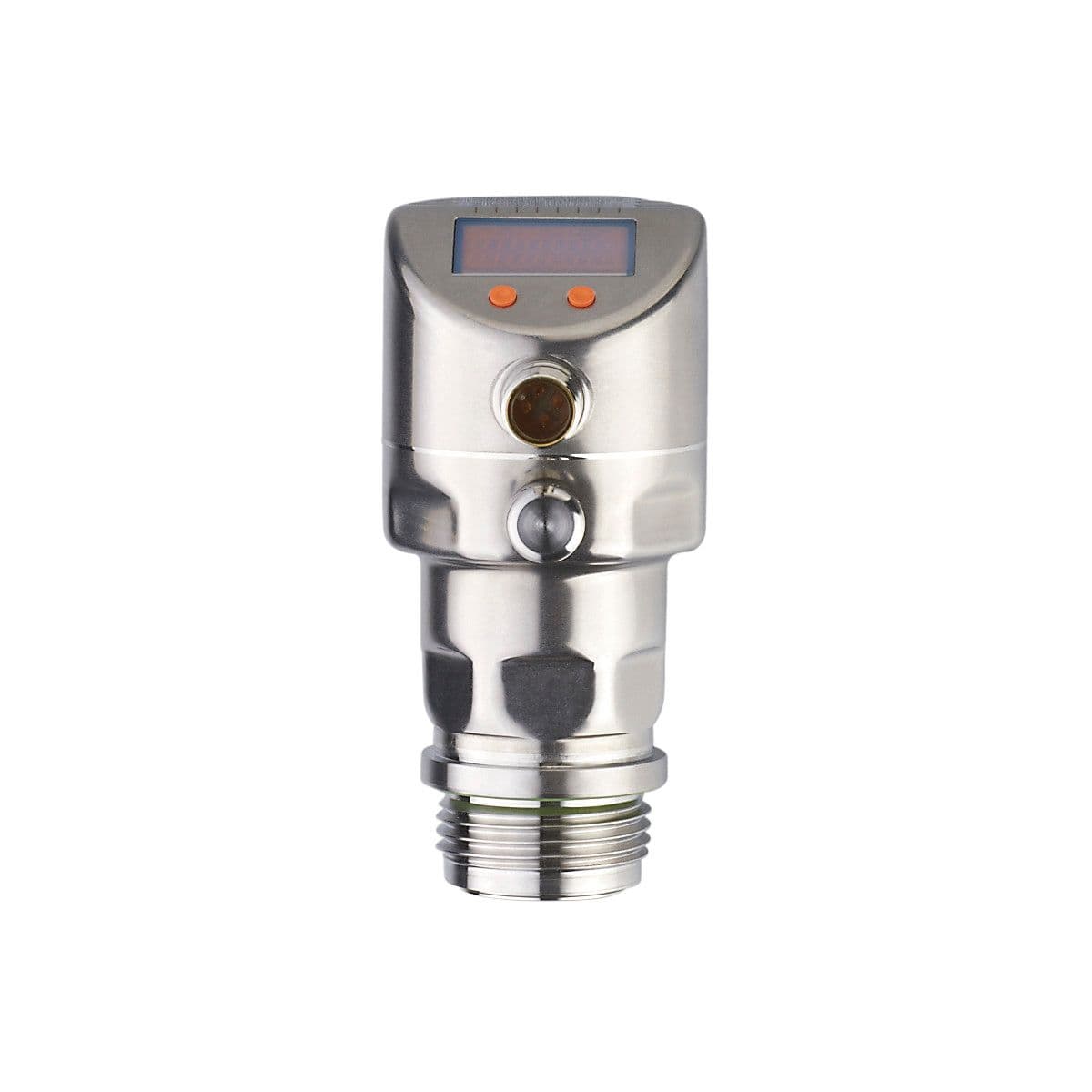

PI2715 ifm Electronic Electronic Components

Product Details

• Min. bursting pressure
  100 bar 1450 psi 10000 kPa
• Integrated watchdog
  yes
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Pressure rating
  30 bar 435 psi 3000 kPa
• No dead space
  yes
• Reverse polarity protection
  yes
• Electrical design
  PNP/NPN
• Application
  flush mountable for the food and beverage industry
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Protection class
  III
• Short-circuit protection
  yes
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Operating voltage [V]
  18...32 DC
• Total number of outputs
  2
• Max. voltage drop switching output DC [V]
  2
• System
  gold-plated contacts
• Number of digital outputs
  2
• Switching frequency DC [Hz]
  125
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
Vacuum resistance [mbar]
-1000
Type of pressure
relative pressure; vacuum
Number of analog outputs
1
Measuring range
-1...6 bar -14.5...87 psi -100...600 kPa
Type of short-circuit protection
yes (non-latching)
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Analog current output [mA]
4...20, invertible; (scalable)
Process connection
threaded connection G 1 external thread Aseptoflex Vario
Current consumption [mA]
< 45
Output function
normally open / closed; (configurable)
Permanent current rating of switching output DC [mA]
250
Power-on delay time [s]
0.5
Overload protection
yes
MAWP (for applications according to CRN) [bar]
30
