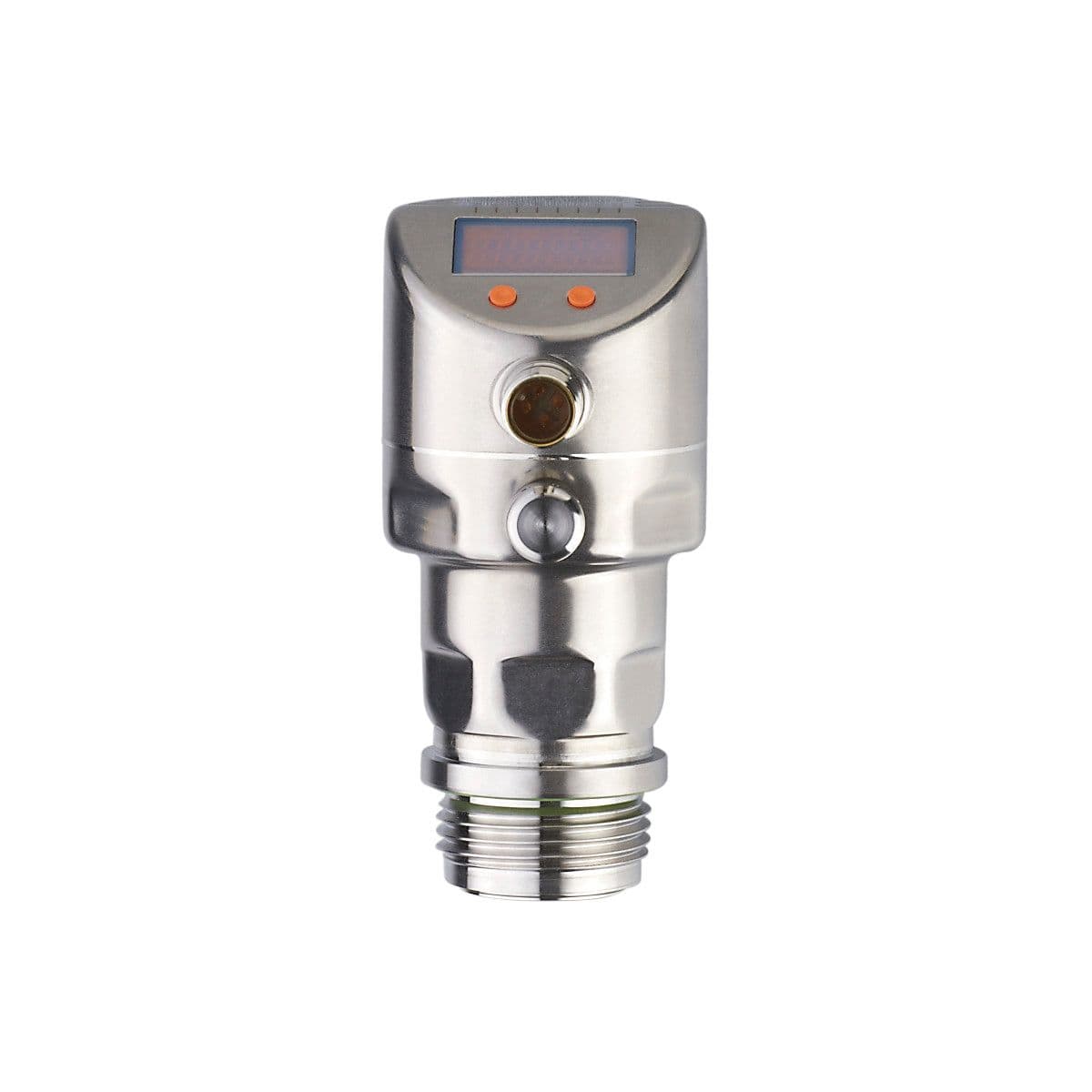

PI2798 ifm Electronic Electronic Components

Product Details

• Power-on delay time [s]
  0.5
• Output function
  normally open / closed; (configurable)
• Overload protection
  yes
• System
  gold-plated contacts
• Pressure rating
  6000 mbar 2400 inH2O 600 kPa
• Protection class
  III
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Vacuum resistance [mbar]
  -1000
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• Application
  flush mountable for the food and beverage industry
• MAWP (for applications according to CRN) [bar]
  10
• Total number of outputs
  2
• Permanent current rating of switching output DC [mA]
  250
• Measuring range
  -0.0124...0.25 bar -12.4...250 mbar -5...100.4 inH2O -1.24...25 kPa
• Type of pressure
  relative pressure
• Current consumption [mA]
  3.6...21
• Electrical design
  PNP/NPN
• Max. voltage drop switching output DC [V]
  2
• Process connection
  threaded connection G 1 external thread Aseptoflex Vario
No dead space
yes
Analog current output [mA]
4...20, invertible; (scalable)
Media
viscous media and liquids with suspended particles; liquids and gases
Integrated watchdog
yes
Number of digital outputs
2
Min. bursting pressure
30000 mbar 12044 inH2O 3000 kPa
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Output signal
switching signal; analog signal; IO-Link; (configurable)
Number of analog outputs
1
Switching frequency DC [Hz]
125
Short-circuit protection
yes
Reverse polarity protection
yes
Operating voltage [V]
18...32 DC
Type of short-circuit protection
yes (non-latching)
