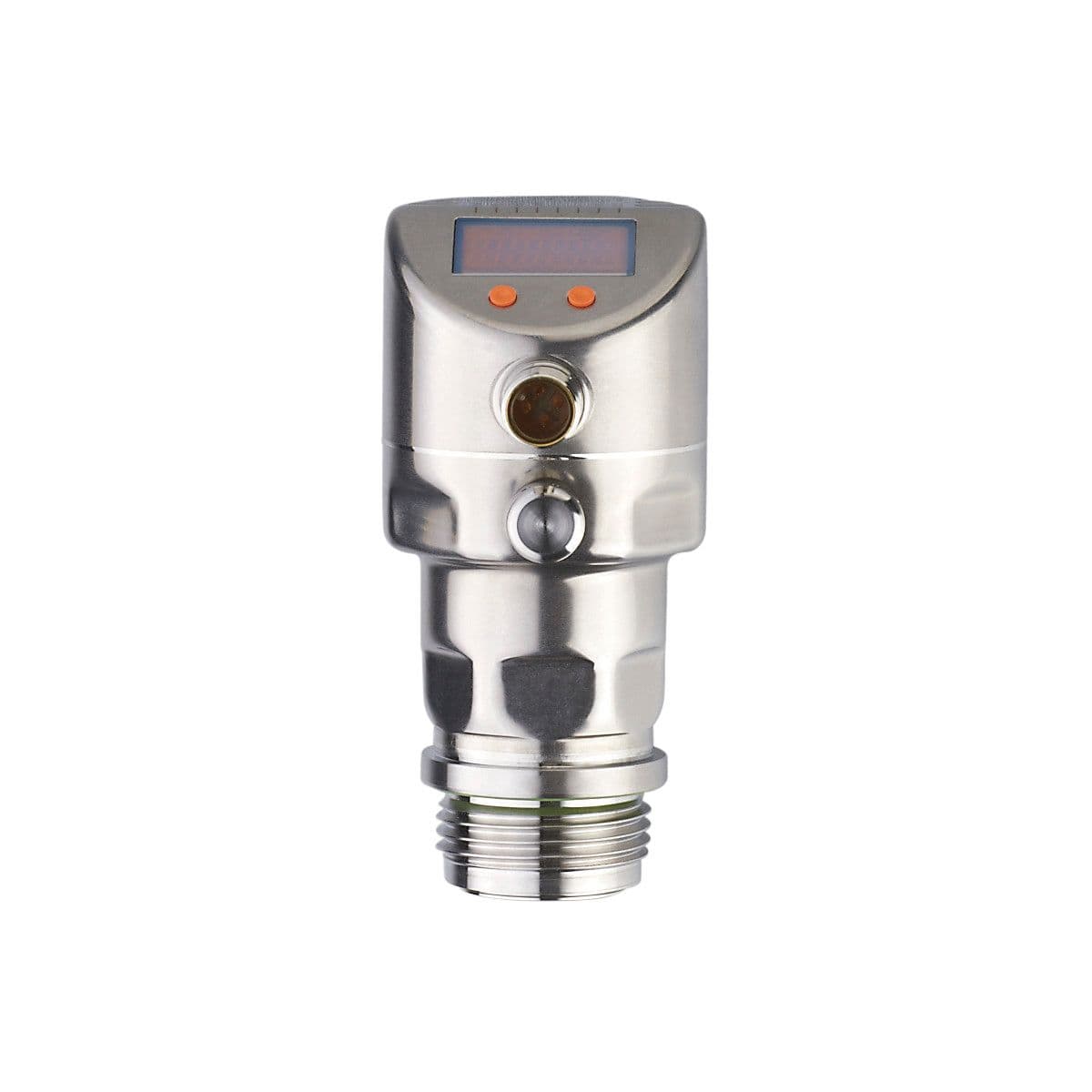

PI2797 ifm Electronic Electronic Components

Product Details

• System
  gold-plated contacts
• Operating voltage [V]
  18...32 DC
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Electrical design
  PNP/NPN
• Permanent current rating of switching output DC [mA]
  250
• Integrated watchdog
  yes
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Overload protection
  yes
• Pressure rating
  10000 mbar 145 psi 1000 kPa
• MAWP (for applications according to CRN) [bar]
  10
• Analog current output [mA]
  4...20, invertible; (scalable)
• Number of analog outputs
  1
• Min. bursting pressure
  30000 mbar 435 psi 3000 kPa
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Current consumption [mA]
  < 45
• Short-circuit protection
  yes
• Max. voltage drop switching output DC [V]
  2
• Measuring range
  -0.05...1 bar -50...1000 mbar -0.73...14.5 psi -5...100 kPa
• Vacuum resistance [mbar]
  -1000
• Type of pressure
  relative pressure
Number of digital outputs
2
Process connection
threaded connection G 1 external thread Aseptoflex Vario
Application
flush mountable for the food and beverage industry
No dead space
yes
Power-on delay time [s]
0.5
Type of short-circuit protection
yes (non-latching)
Switching frequency DC [Hz]
125
Medium temperature [°C]
-25...125; (145 max. 1h)
Reverse polarity protection
yes
Total number of outputs
2
Max. load [Ω]
(Ub - 10 V) / 20 mA
Media
viscous media and liquids with suspended particles; liquids and gases
Protection class
III
Output function
normally open / closed; (configurable)
