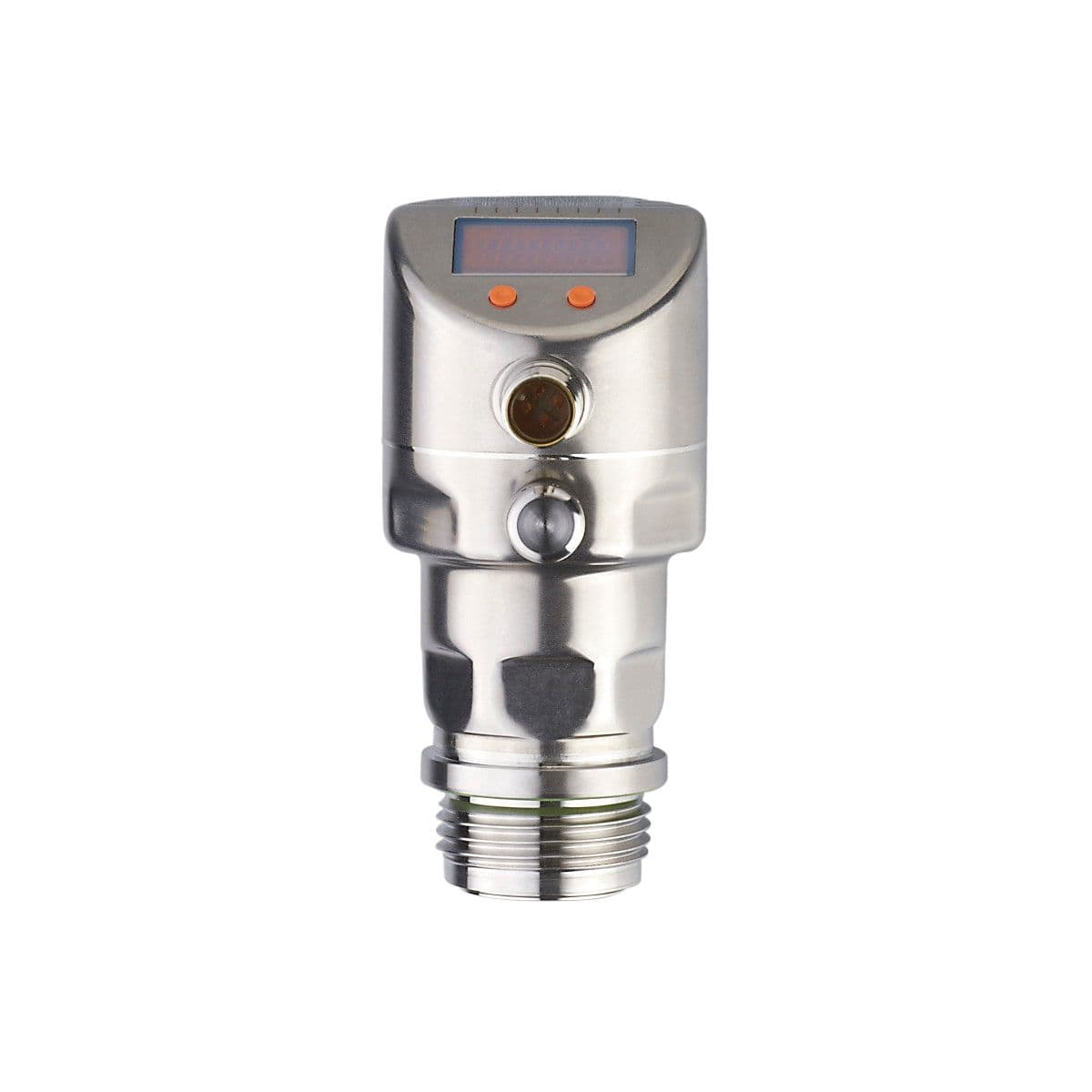

PI2717 ifm Electronic Electronic Components

Product Details

• Integrated watchdog
  yes
• Type of short-circuit protection
  yes (non-latching)
• System
  gold-plated contacts
• Vacuum resistance [mbar]
  -1000
• Max. load [Ω]
  (Ub - 10 V) / 20 mA
• No dead space
  yes
• Medium temperature [°C]
  -25...125; (145 max. 1h)
• Electrical design
  PNP/NPN
• Max. voltage drop switching output DC [V]
  2
• Media
  viscous media and liquids with suspended particles; liquids and gases
• Process connection
  threaded connection G 1 external thread Aseptoflex Vario
• Type of pressure
  relative pressure
• Total number of outputs
  2
• Operating voltage [V]
  18...32 DC
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Number of analog outputs
  1
• Pressure rating
  15000 mbar 215 psi 1500 kPa
• Number of inputs and outputs
  Number of digital outputs: 2; Number of analog outputs: 1
• Short-circuit protection
  yes
• Min. bursting pressure
  40000 mbar 580 psi 4000 kPa
Application
flush mountable for the food and beverage industry
MAWP (for applications according to CRN) [bar]
15
Measuring range
-0.1...1.6 bar -100...1600 mbar -1.46...23.2 psi -10...160 kPa
Power-on delay time [s]
0.5
Analog current output [mA]
4...20, invertible; (scalable)
Permanent current rating of switching output DC [mA]
250
Min. insulation resistance [MΩ]
100; (500 V DC)
Protection class
III
Output function
normally open / closed; (configurable)
Overload protection
yes
Current consumption [mA]
< 45
Number of digital outputs
2
Reverse polarity protection
yes
Switching frequency DC [Hz]
125
